Consult-II Function Application Table (Main Items)

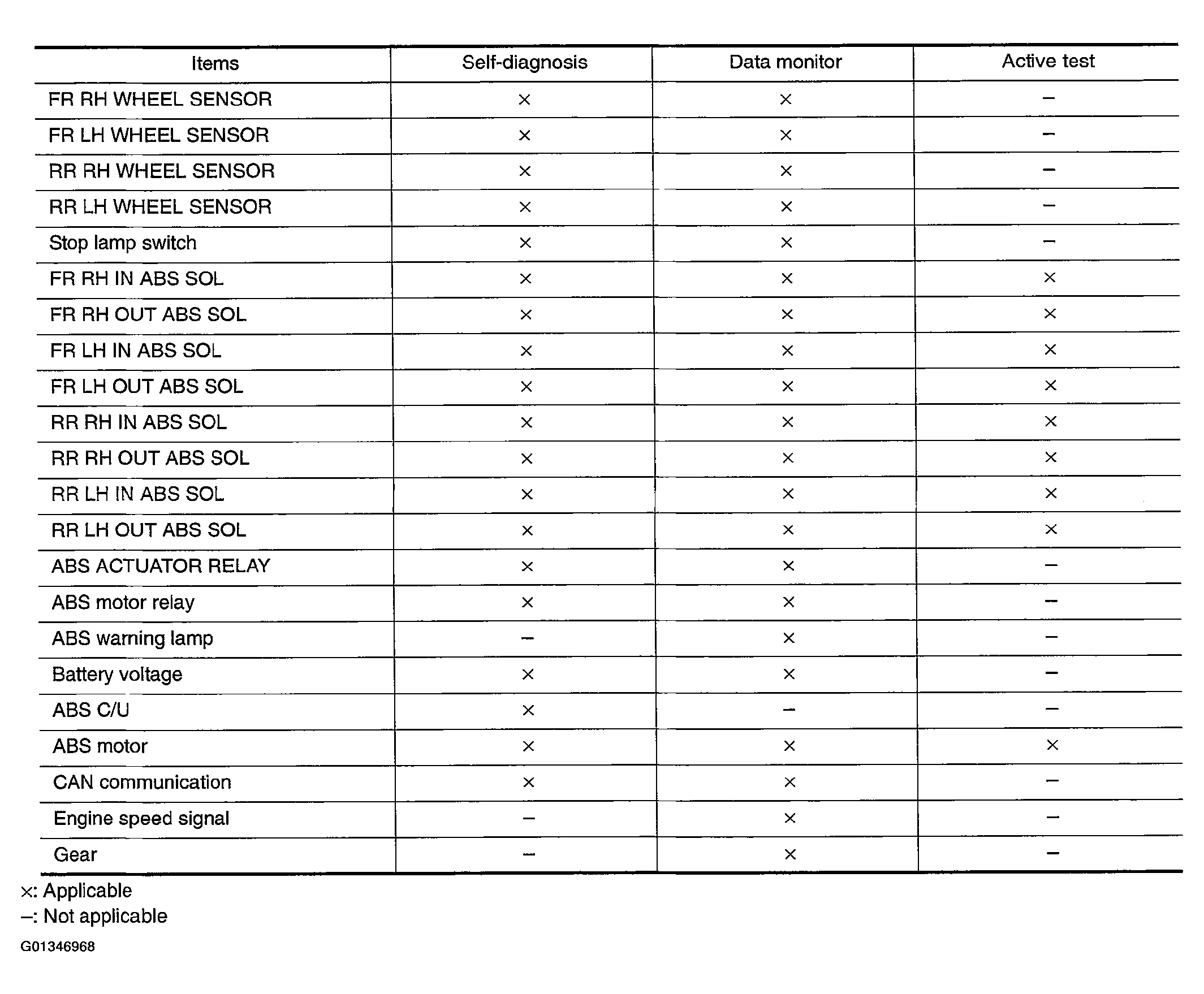

Fig 1: Consult-II Function Application Table (Main Items)

G01346968

Courtesy of NISSAN MOTOR CO., U.S.A.
