Consult-II Basic Operation Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

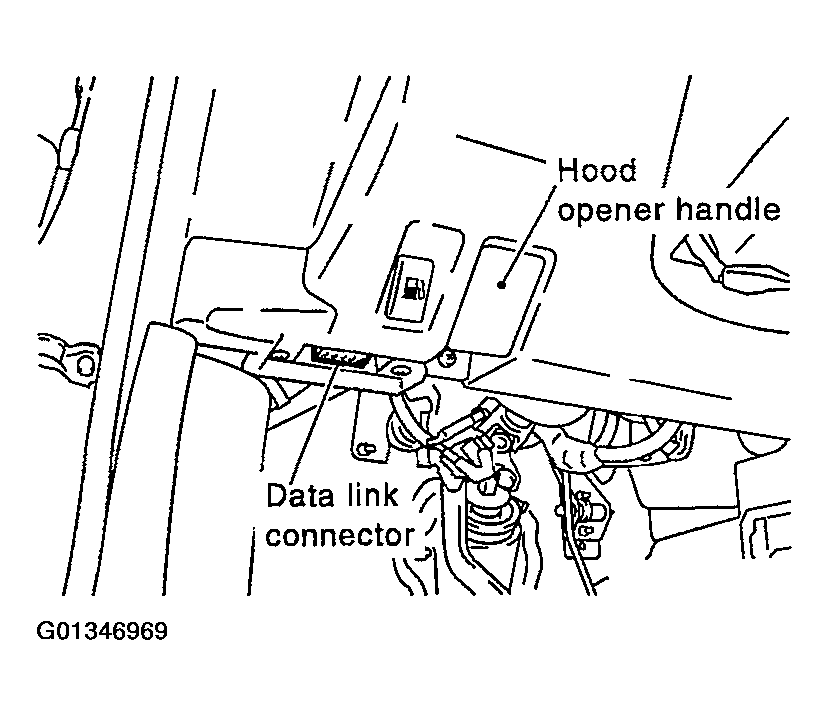

Fig 1: Locating DLC Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.

Fig 2: CONSULT-II Display - Start Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 3: CONSULT-II Display - Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS" in the "Diagnosis System Selection" screen.
If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

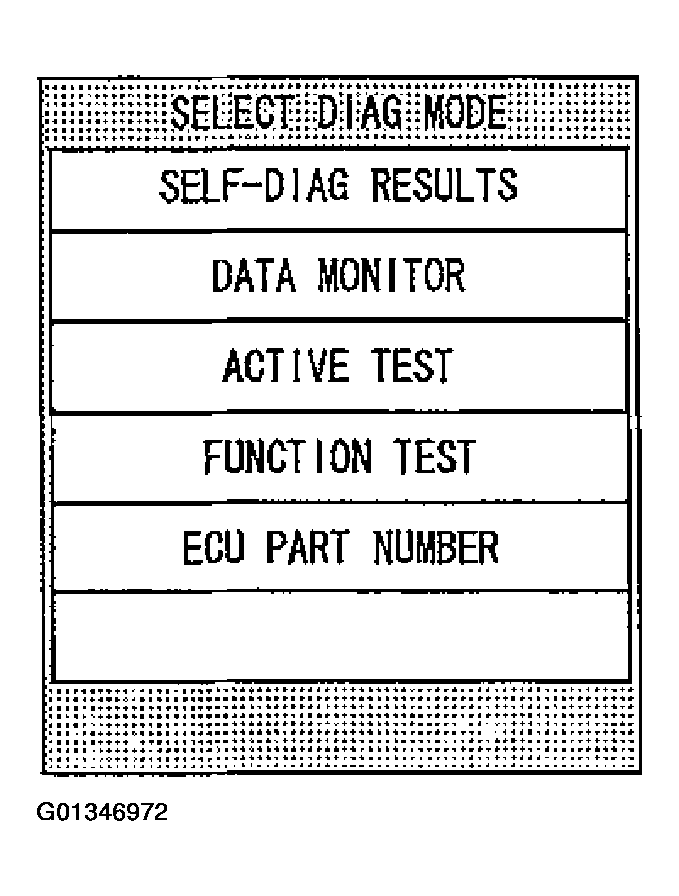

Fig 4: CONSULT-II Display - Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the required diagnostic location from the "Diagnosis Mode Selection" screen.
For further information, see the CONSULT-II Operation Manual.

Suspect Systems	Malfunction is detected when	Inspection System
ABS CONTROLLER	When there is an internal error in the ABS actuator and electric unit	Inspection 3 ABS Actuator and Electric Unit
CAN COMM CIRCUIT	When there is an error in the CAN communication system.	Inspection 8 CAN Communication System (Note 2)
ENGINE SIGNAL	When there is an error in the engine system main component	Inspection 2 Engine System

NOTE: 1: After completing repairs of the shorted sensor circuit, when ignition switch is turned ON, ABS warning lamp turns on. Check that ABS warning lamp turns off while driving the vehicle at approximately 30 km/h (19 MPH) for approximately 1 minute according to self-diagnosis procedure. In addition, if wheel sensor 2 is displayed for the wheels, check the wheel sensor circuit and also check the control unit power voltage.

NOTE: 2: When errors are detected in several systems, including the CAN communication system [U1000], troubleshoot the CAN communication system.
