BCM (Body Control Module): Schematic: Notes

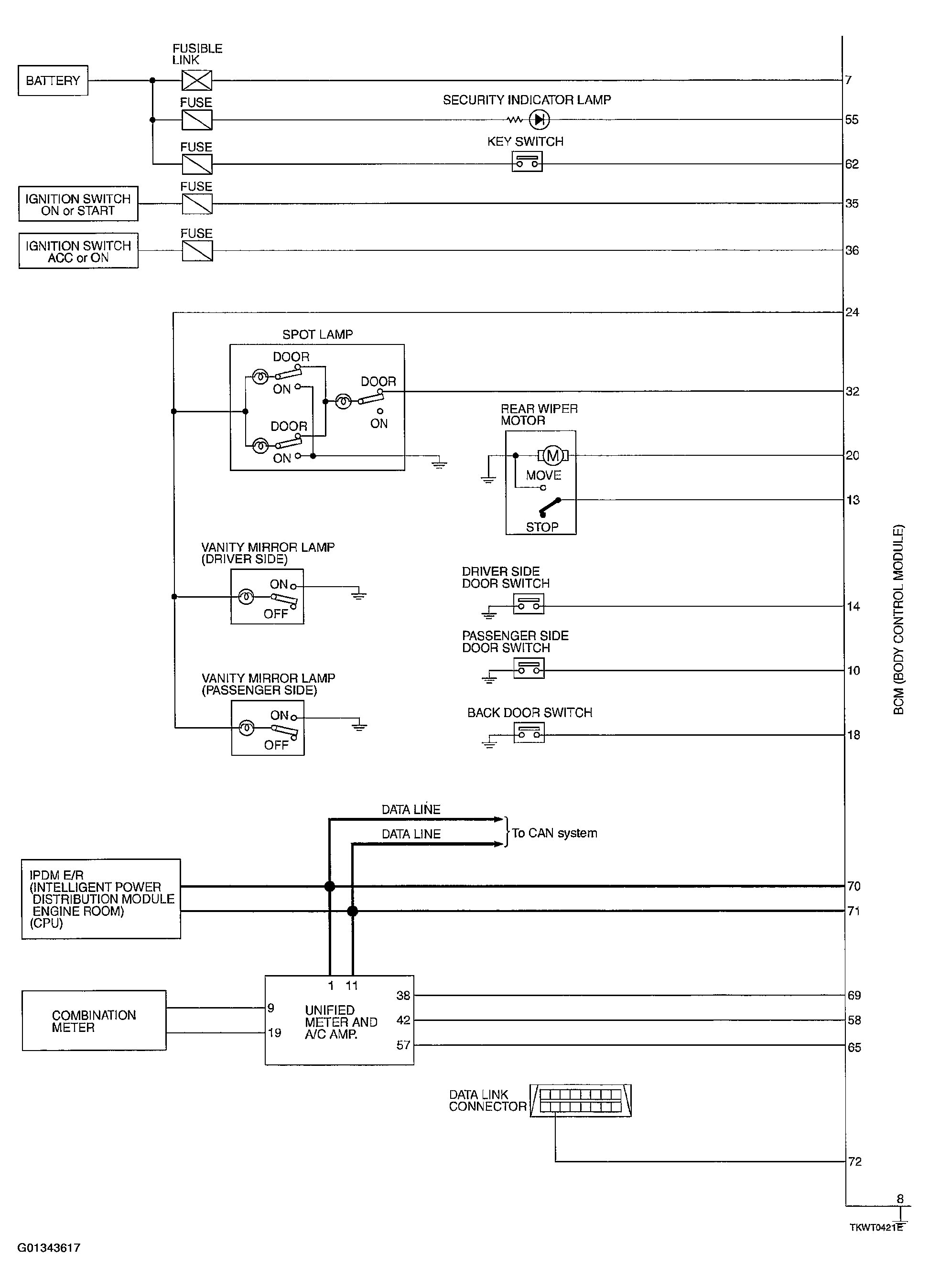

Fig 1: BCM Schematics (1 Of 2)

G01343617

Courtesy of NISSAN MOTOR CO., U.S.A.

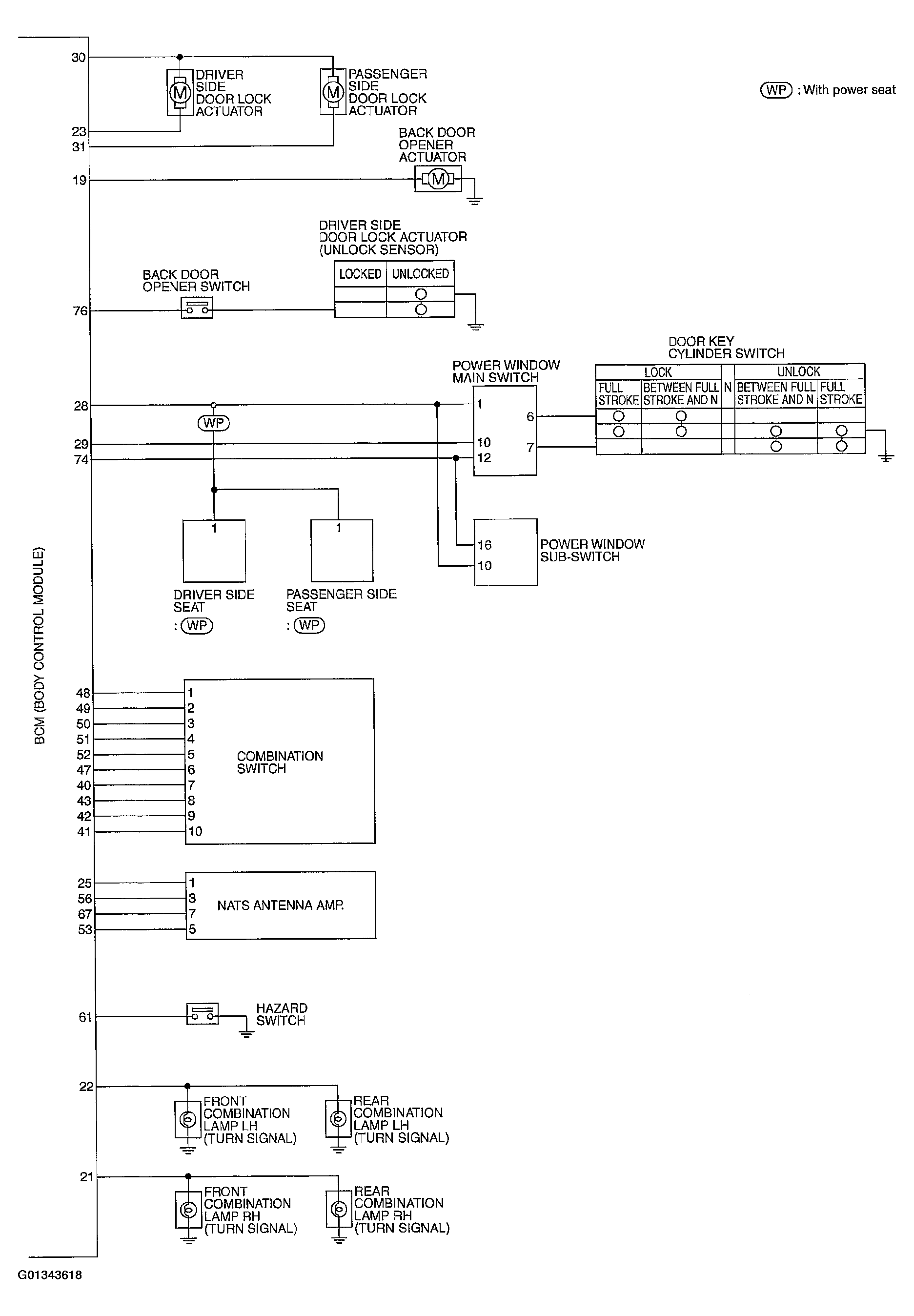

Fig 2: BCM Schematics (2 Of 2)

G01343618

Courtesy of NISSAN MOTOR CO., U.S.A.
