CAN Communication Unit: Notes

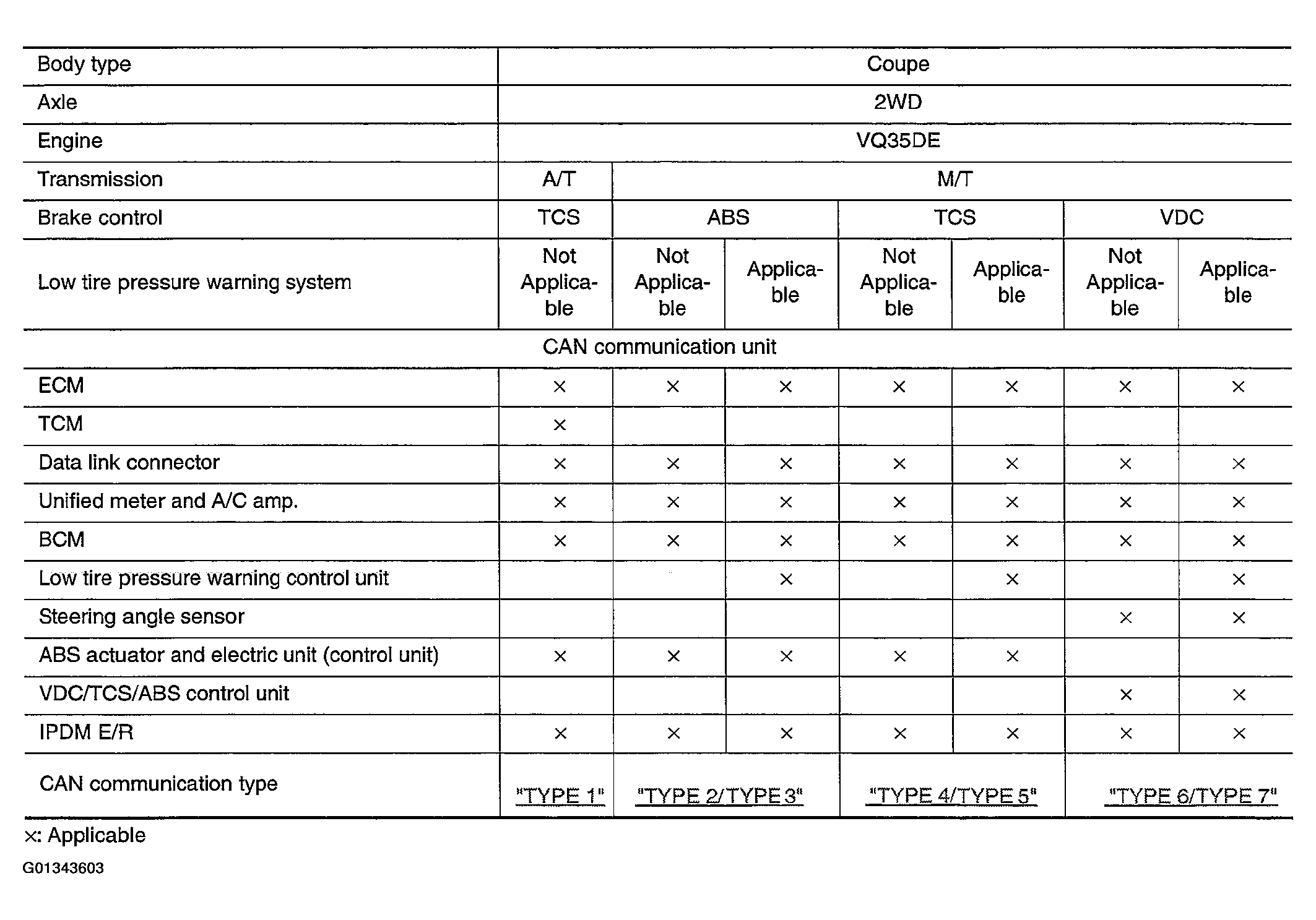

Fig 1: CAN Communication Unit

G01343603

Courtesy of NISSAN MOTOR CO., U.S.A.
