DTC P2135: Throttle Position Sensor Circuit Range/Performance Problem

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1 -Fig 6 . For component testing procedures, see Figure .

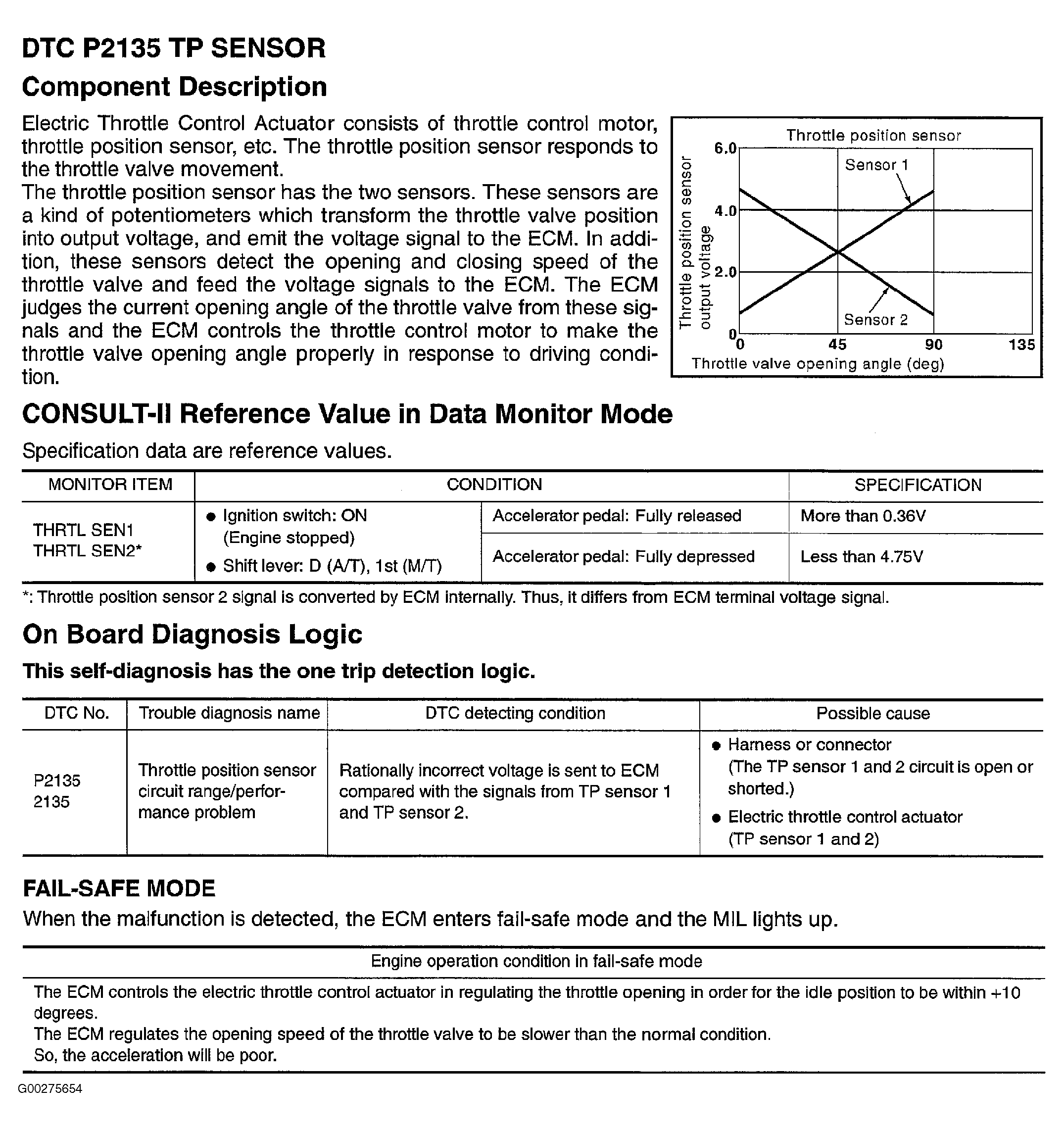

Fig 1: DTC P2135 (1 Of 6)

G00275654

Courtesy of NISSAN MOTOR CO., U.S.A.

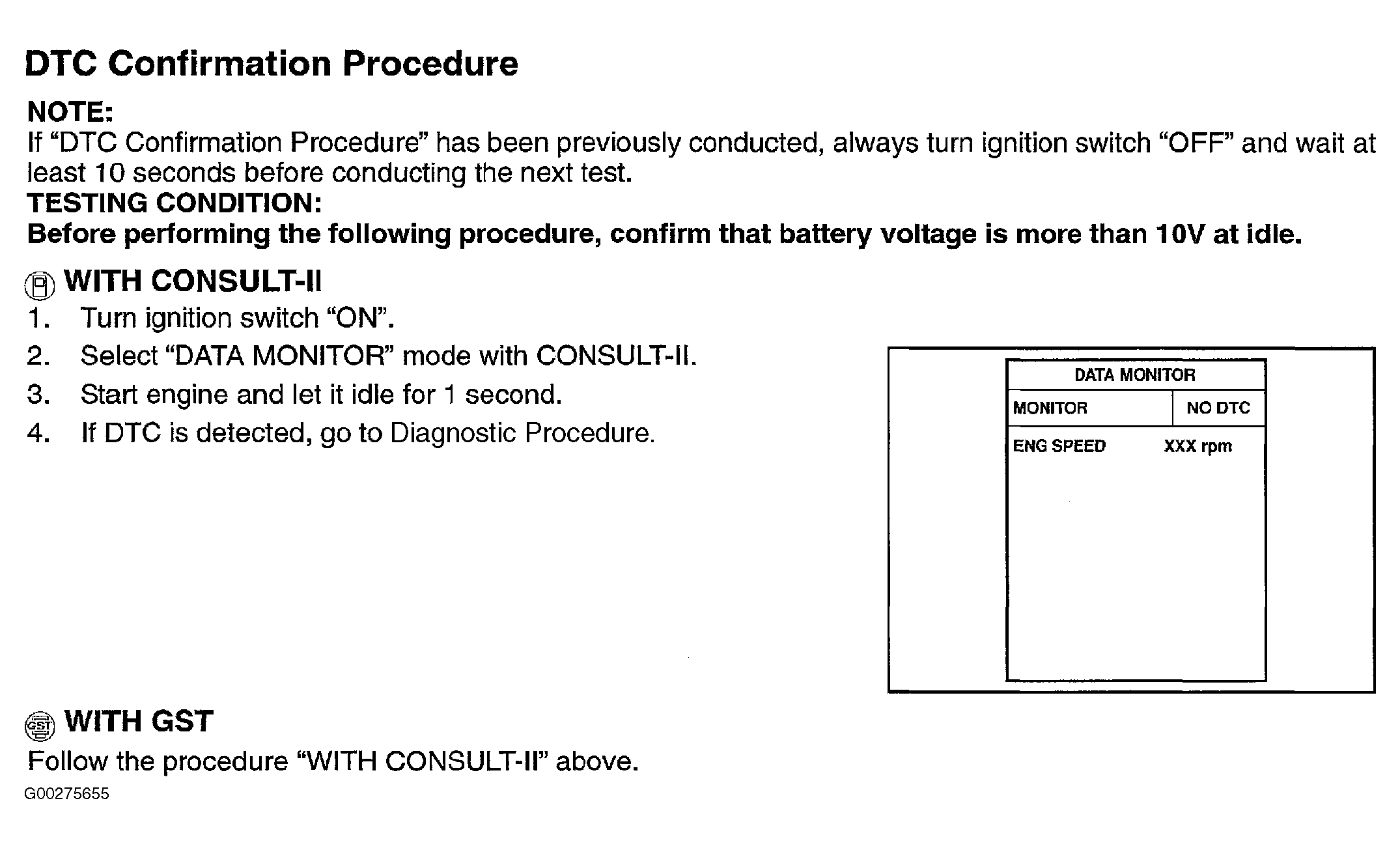

Fig 2: DTC P2135 (2 Of 6)

G00275655

Courtesy of NISSAN MOTOR CO., U.S.A.

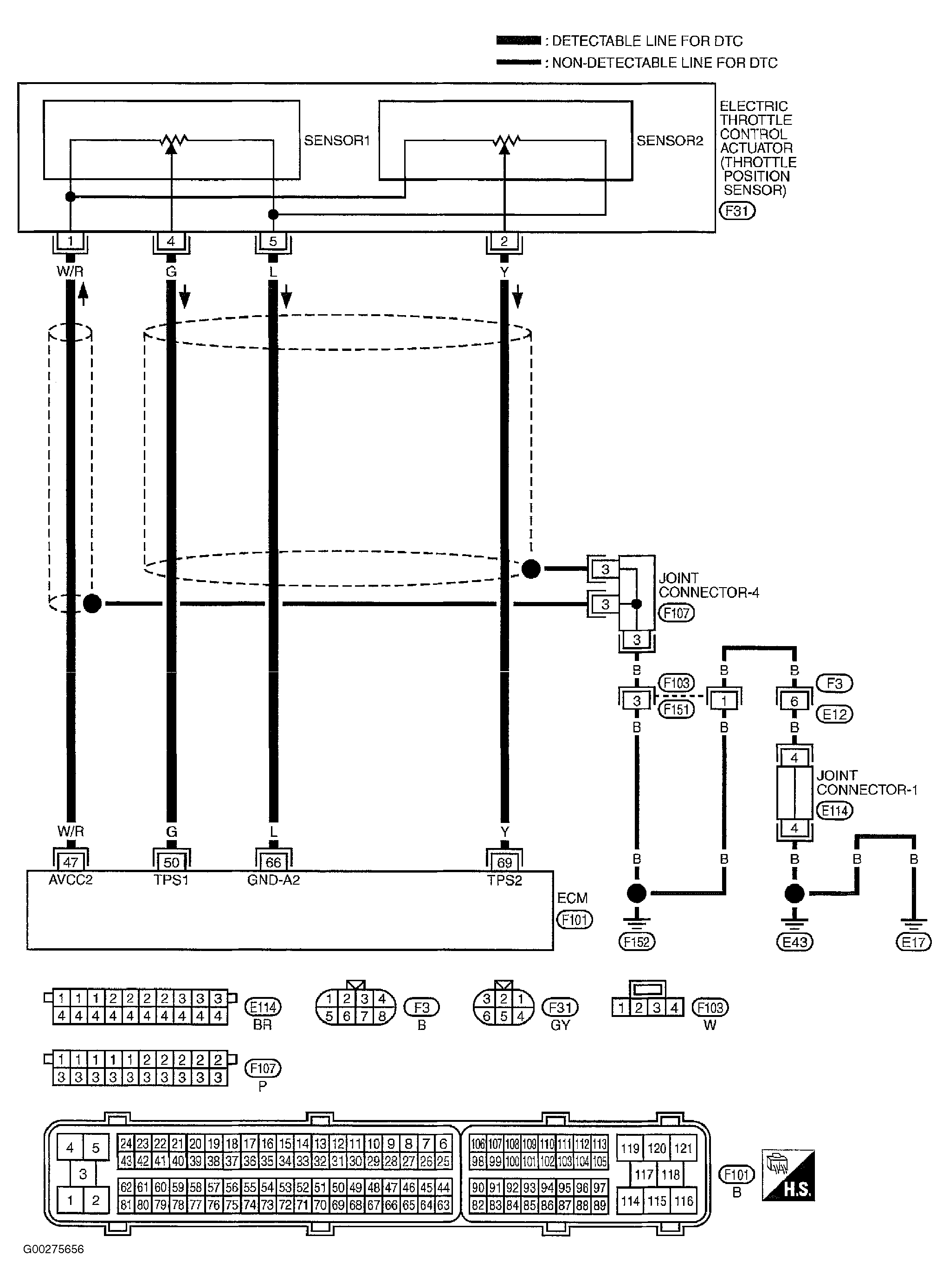

Fig 3: DTC P2135 (3 Of 6)

G00275656

Courtesy of NISSAN MOTOR CO., U.S.A.

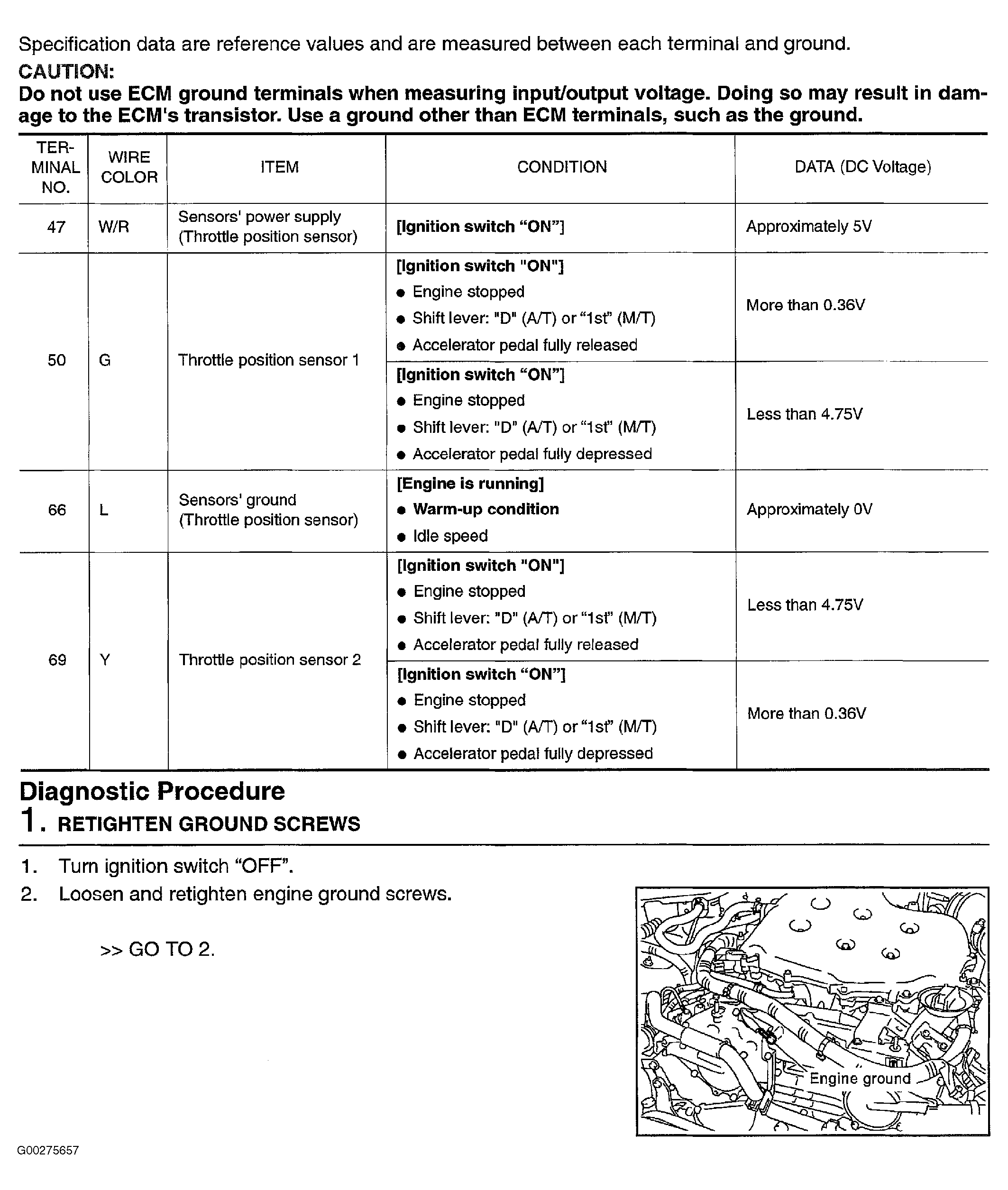

Fig 4: DTC P2135 (4 Of 6)

G00275657

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: DTC P2135 (5 Of 6)

G00275658

Courtesy of NISSAN MOTOR CO., U.S.A.

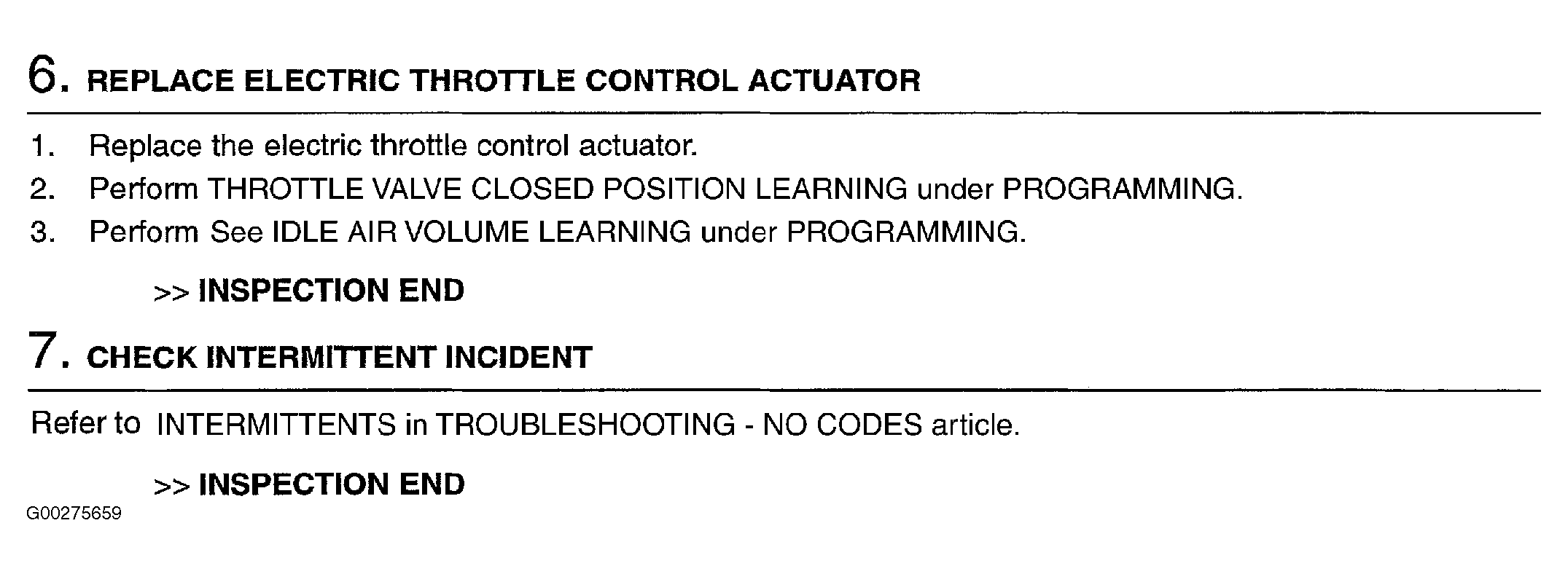

Fig 6: DTC P2135 (6 Of 6)

G00275659

Courtesy of NISSAN MOTOR CO., U.S.A.
