DTC P1225: Closed Throttle Position Learning Performance Problem

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1 and Fig 2 .

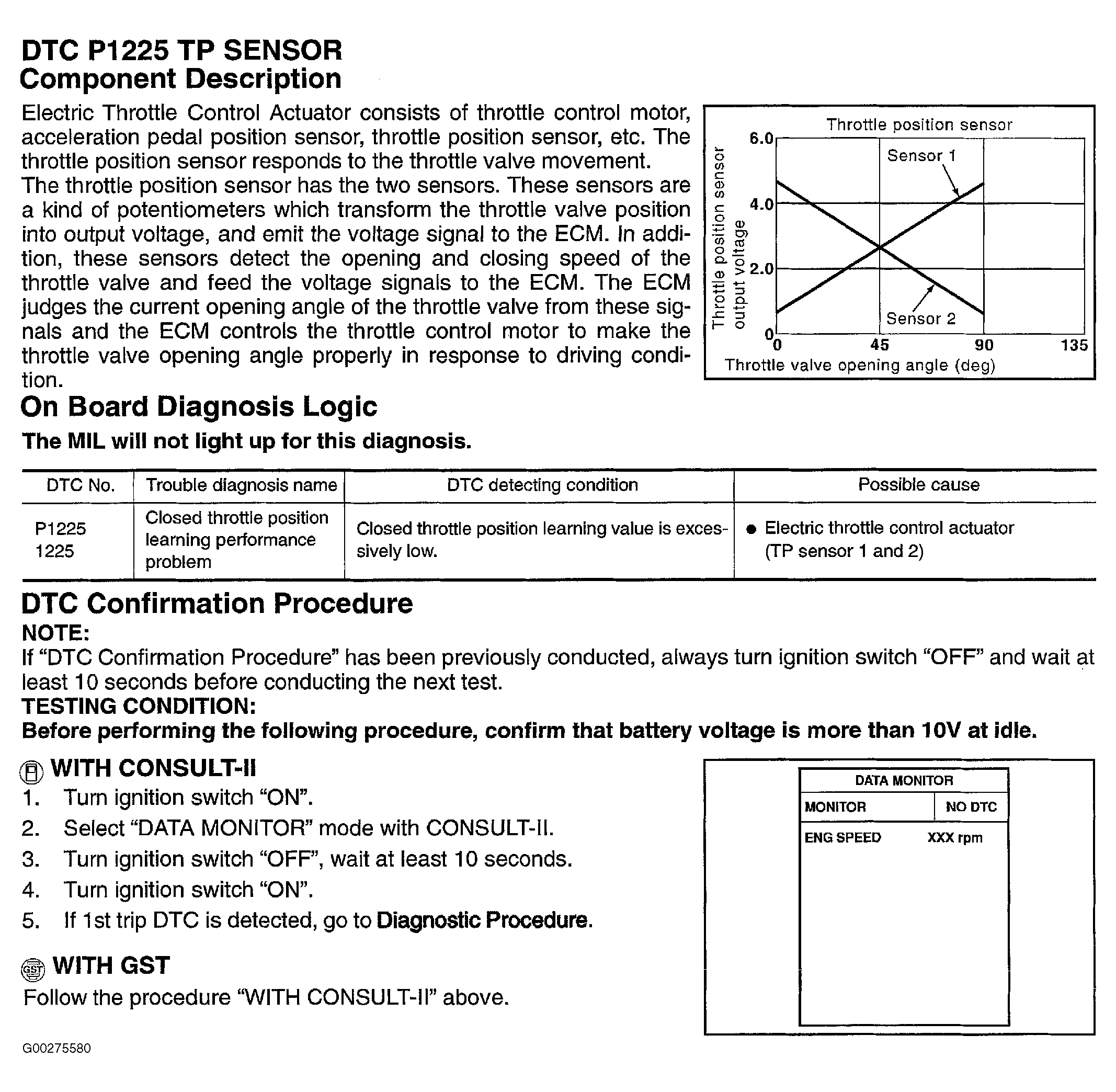

Fig 1: DTC P1225 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

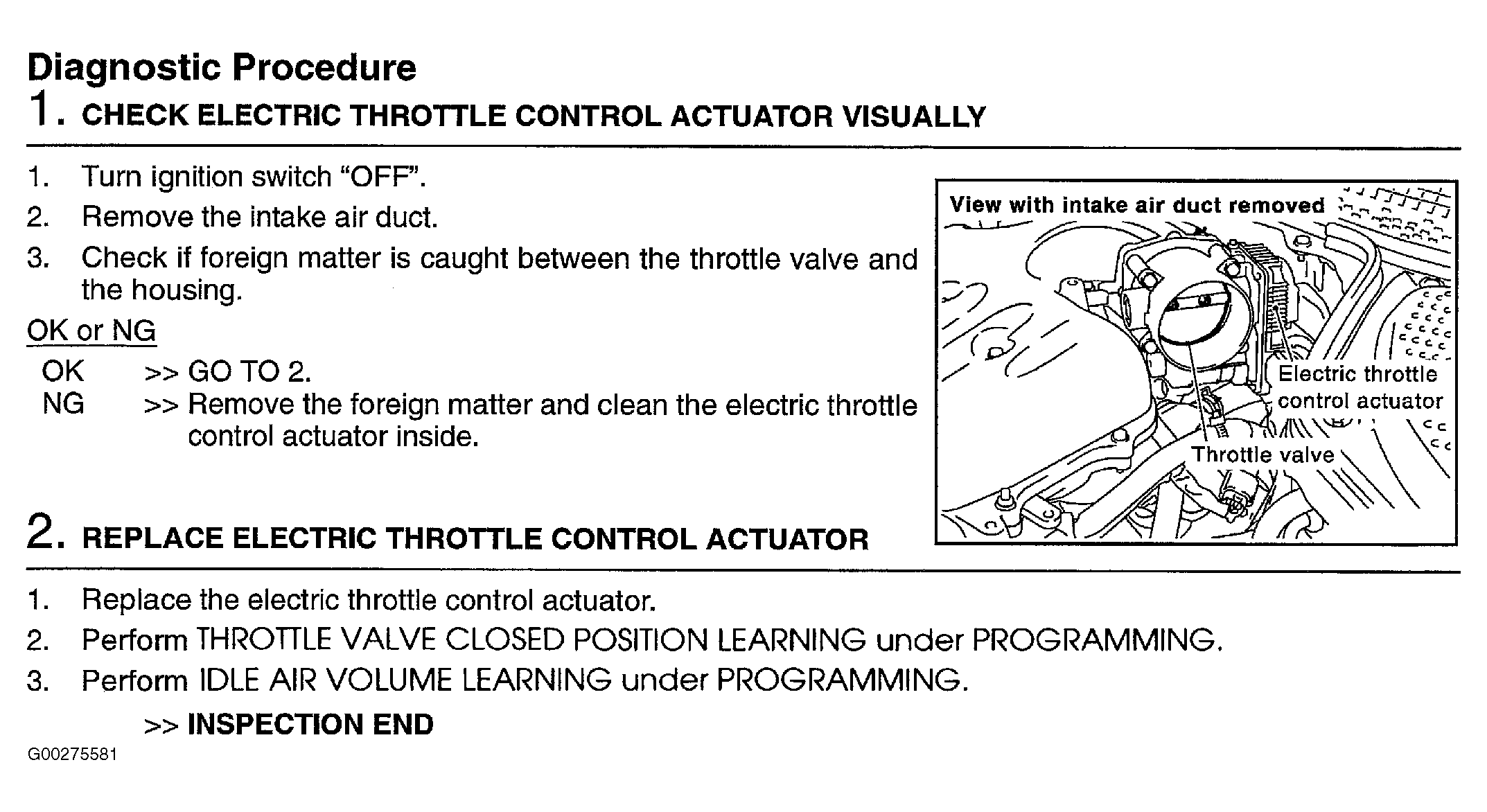

Fig 2: DTC P1225 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
