DTC P0441: EVAP Control System Incorrect Purge Flow

NOTE: If DTC P2122, DTC P2123, DTC P2127, DTC P2128 or DTC P2138 is also present, perform diagnosis for that code first. See DTC P2122: ACCELERATOR PEDAL POSITION SENSOR 1 CIRCUIT LOW INPUT &/OR DTC P2123: ACCELERATOR PEDAL POSITION SENSOR 1 CIRCUIT HIGH INPUT , DTC P2127: ACCELERATOR PEDAL POSITION SENSOR 2 CIRCUIT LOW INPUT OR DTC P2128: ACCELERATOR PEDAL POSITION SENSOR 2 CIRCUIT HIGH INPUT and/or DTC P2138: ACCELERATOR PEDAL POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM .

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

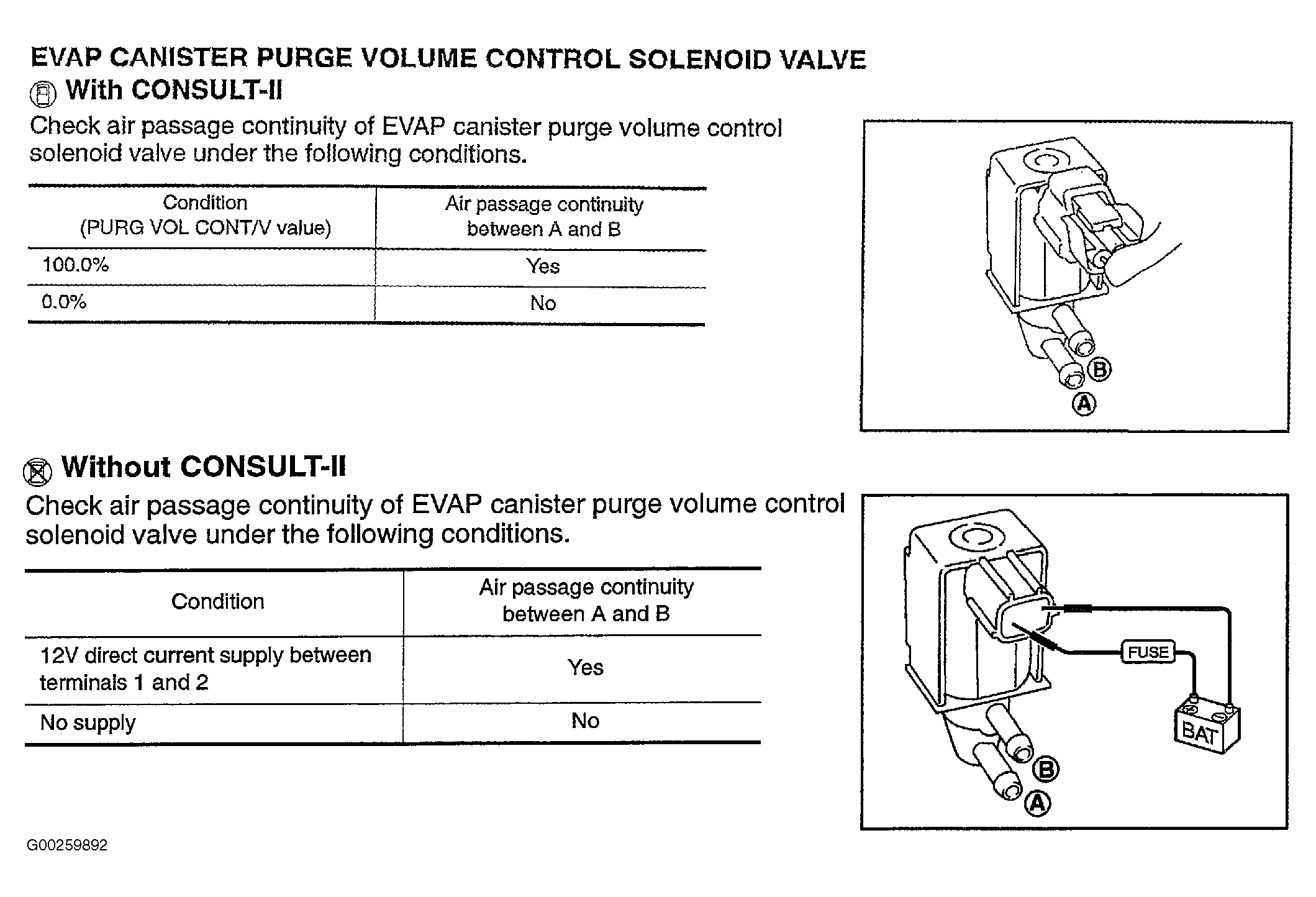

For diagnostic procedures, see Fig 1 -Fig 5 . For component testing procedures, see Figure and Figure .

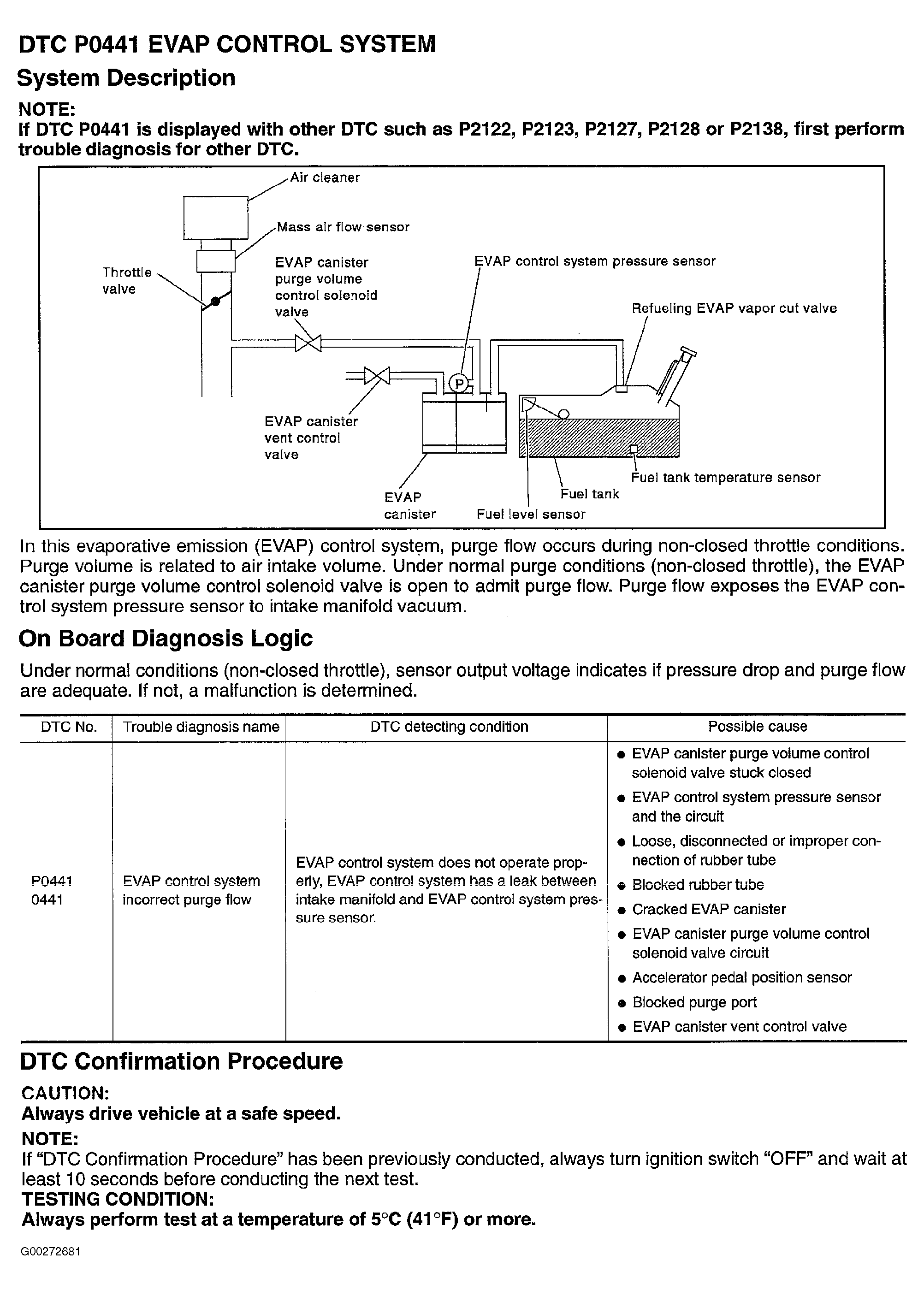

Fig 1: DTC P0441 (1 Of 5)

G00272681

Courtesy of NISSAN MOTOR CO., U.S.A.

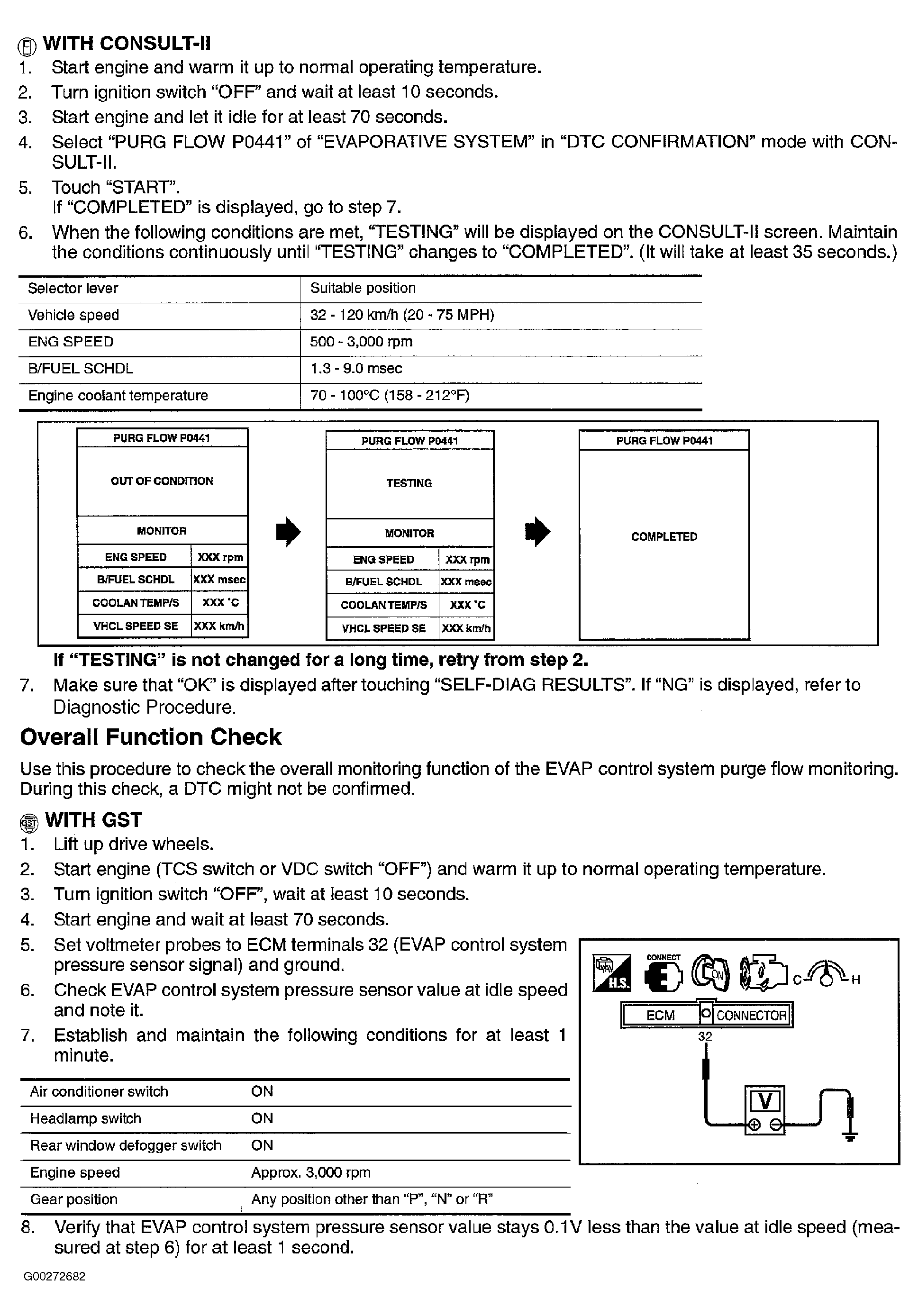

Fig 2: DTC P0441 (2 Of 5)

G00272682

Courtesy of NISSAN MOTOR CO., U.S.A.

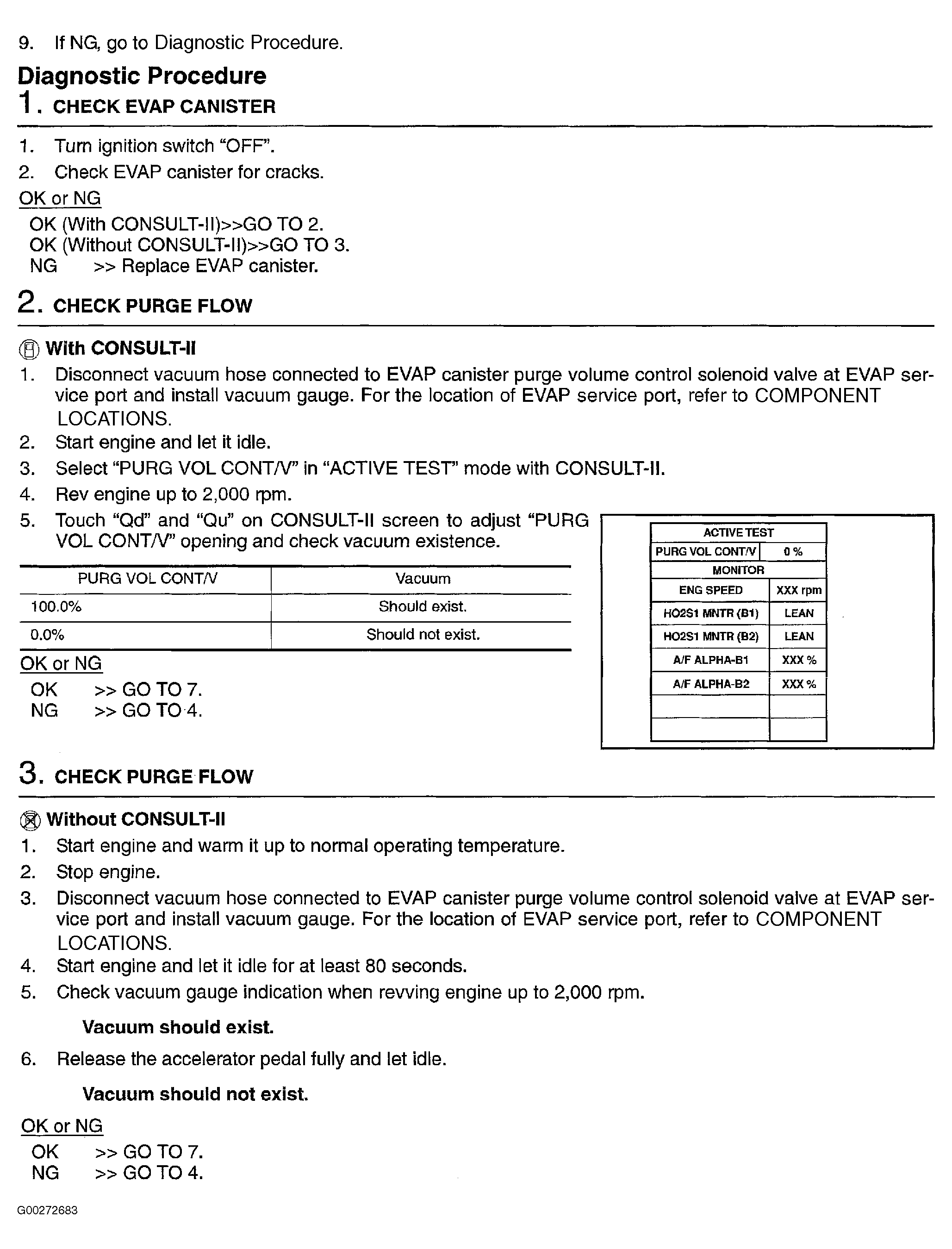

Fig 3: DTC P0441 (3 Of 5)

G00272683

Courtesy of NISSAN MOTOR CO., U.S.A.

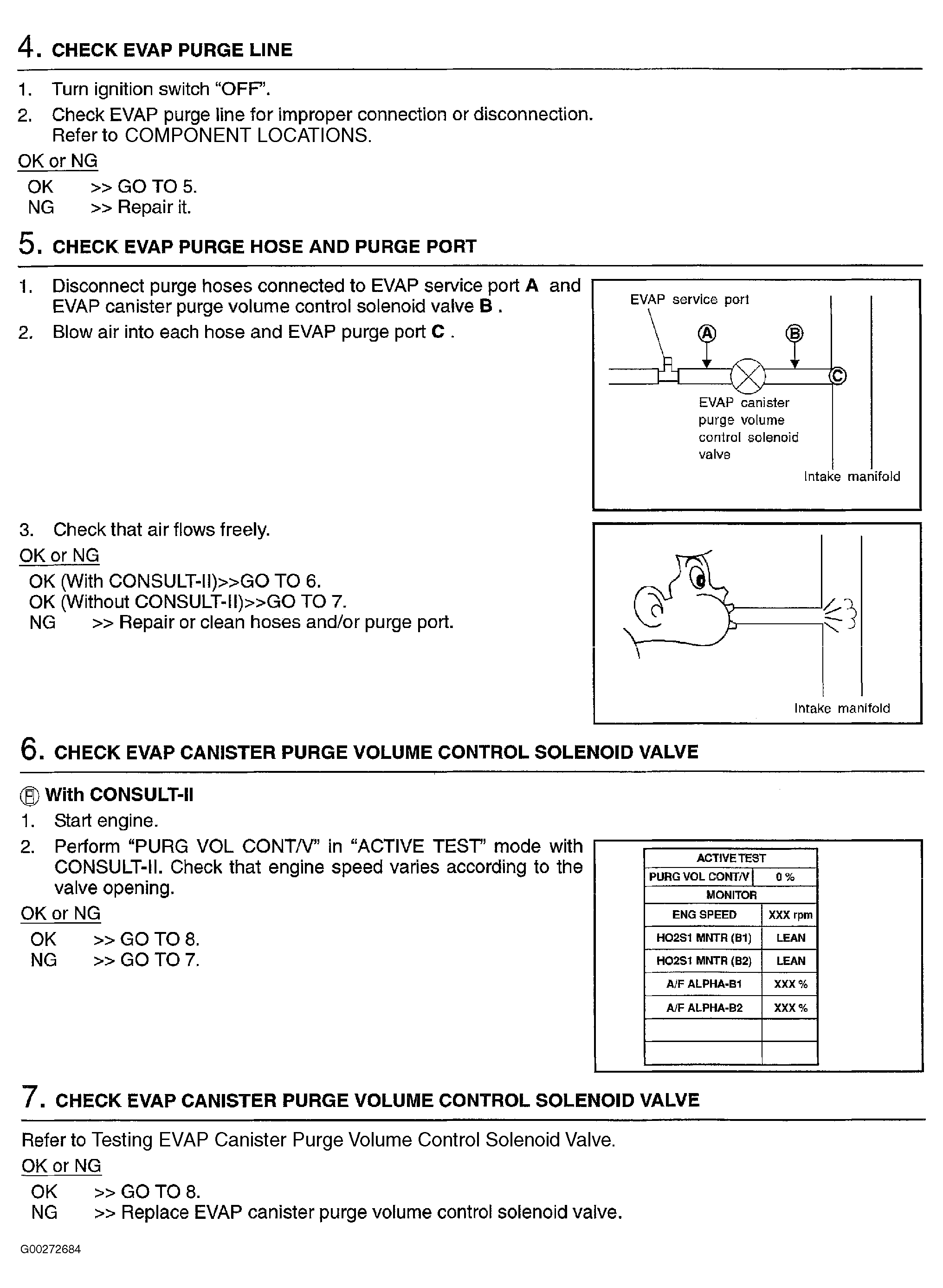

Fig 4: DTC P0441 (4 Of 5)

G00272684

Courtesy of NISSAN MOTOR CO., U.S.A.

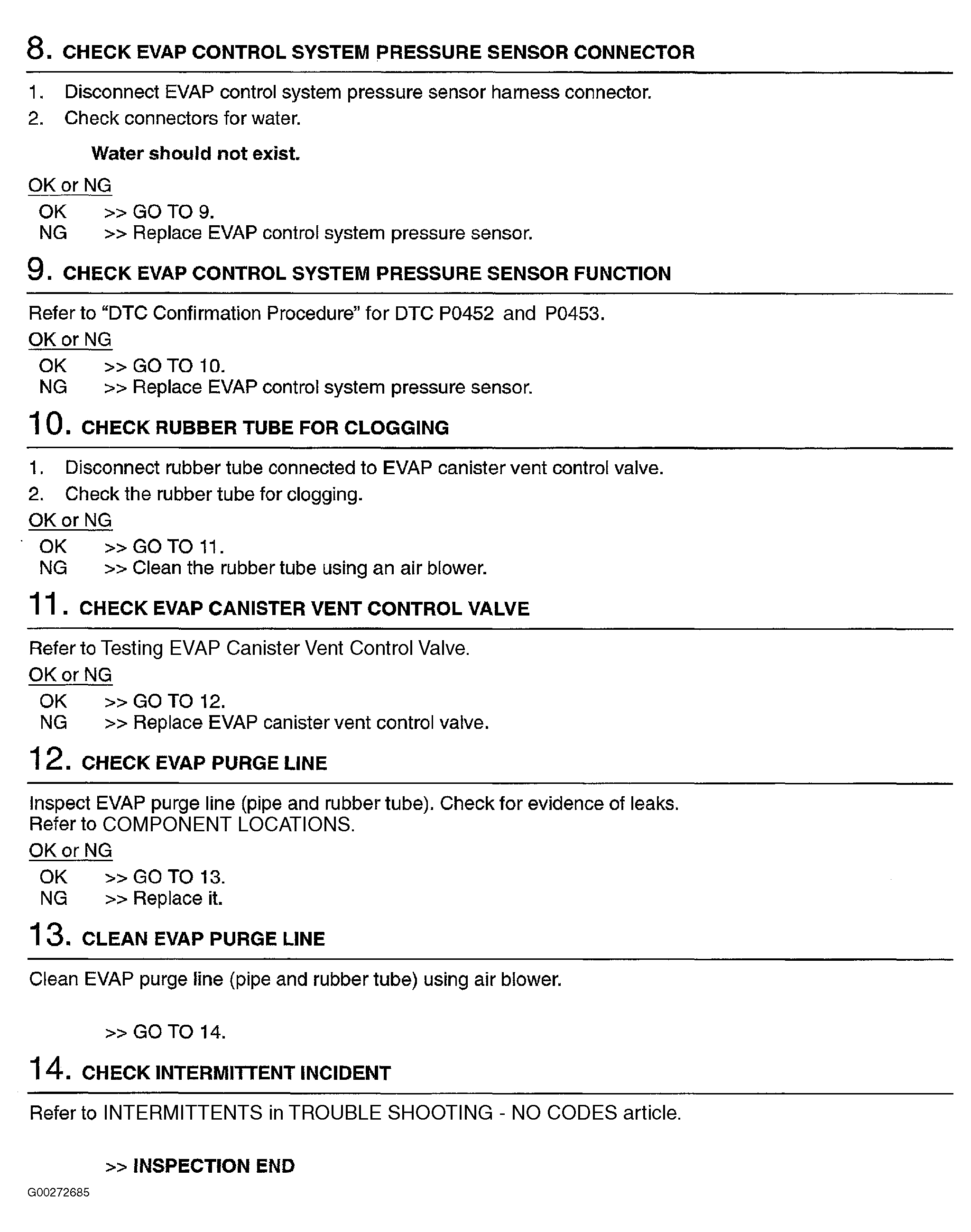

Fig 5: DTC P0441 (5 Of 5)

G00272685

Courtesy of NISSAN MOTOR CO., U.S.A.
