Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

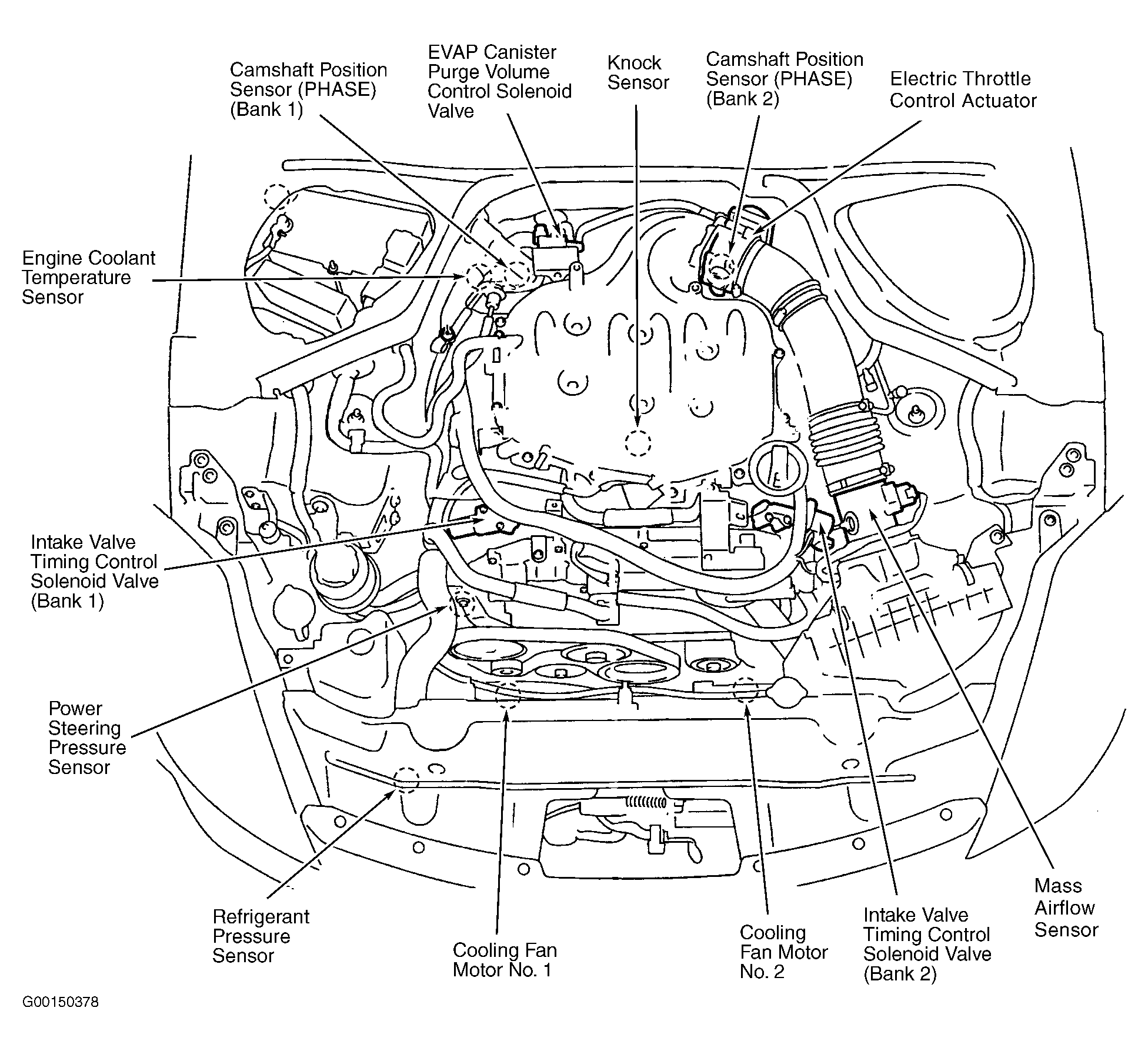

Fig 1: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

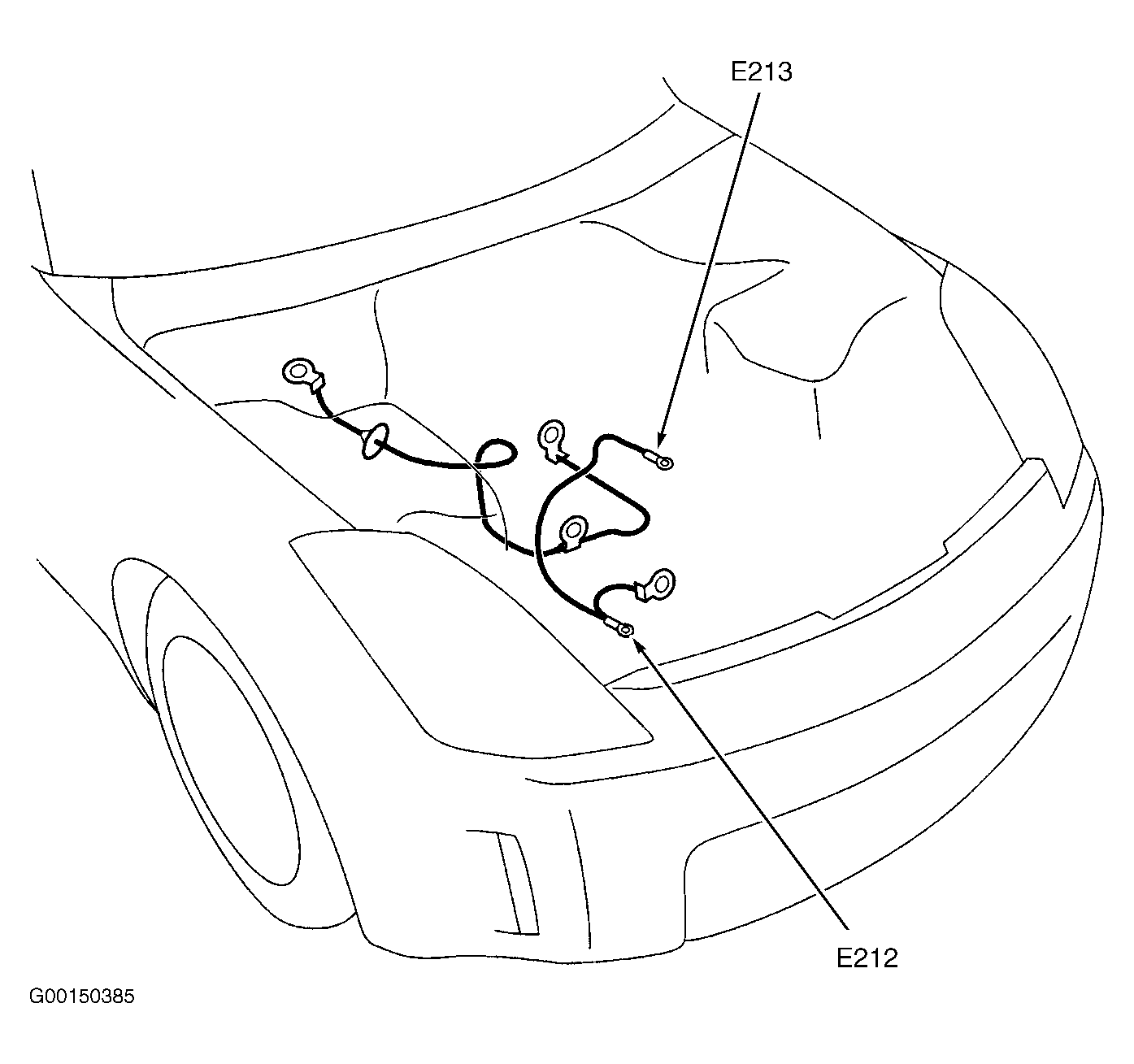

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

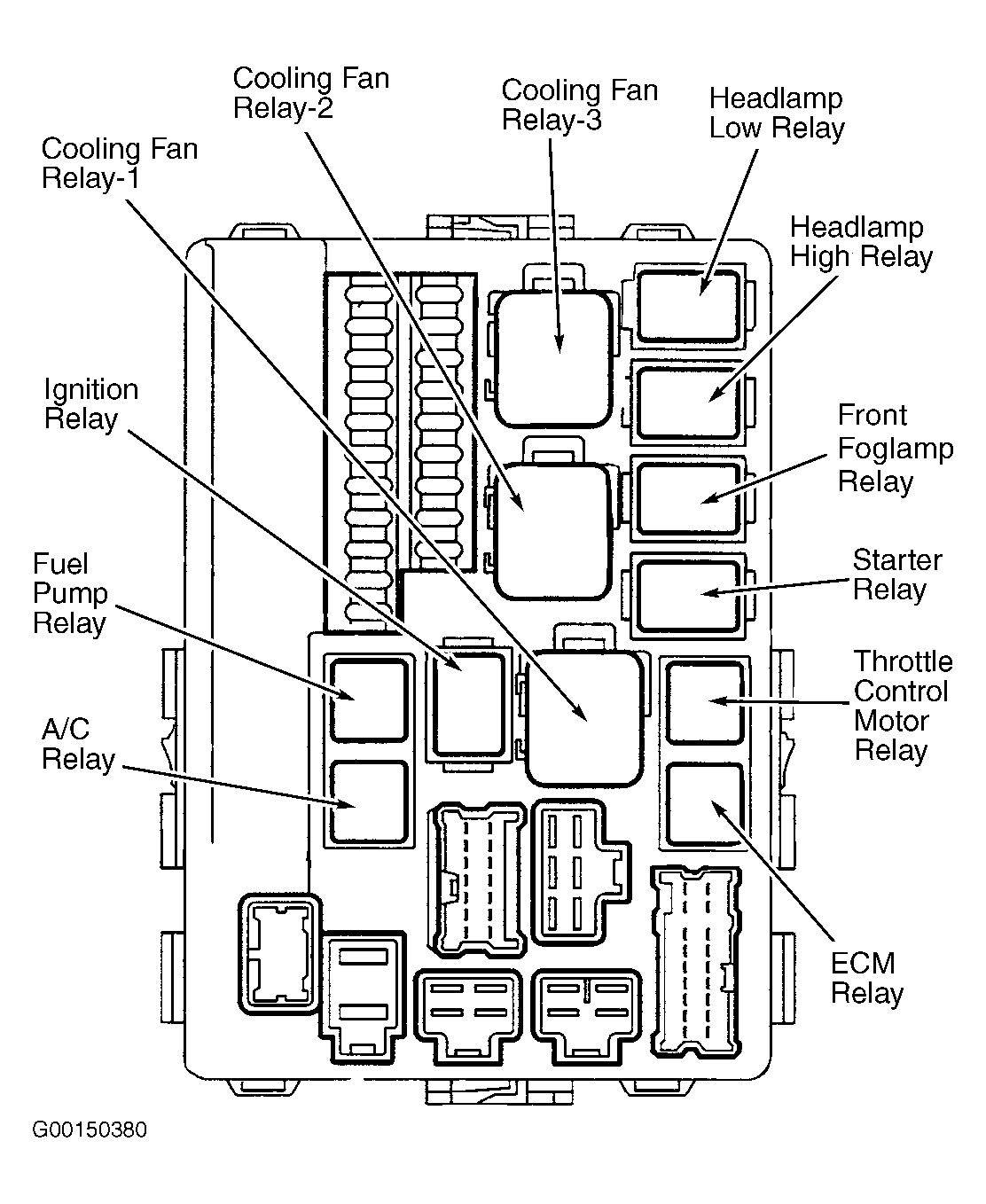

Fig 4: Intelligent Power Distribution Module (Engine Room)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: View Under Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

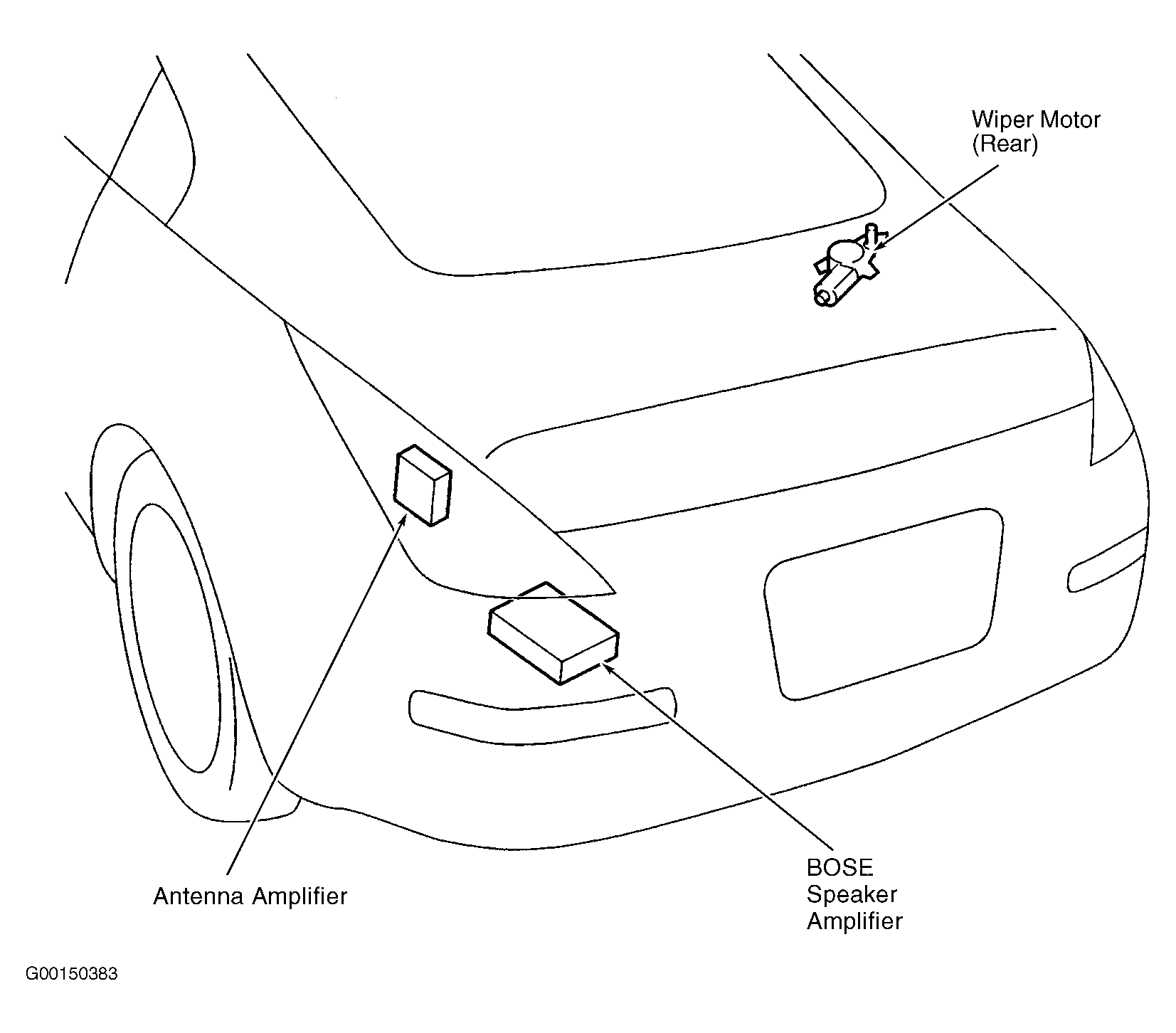

Fig 7: Rear Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

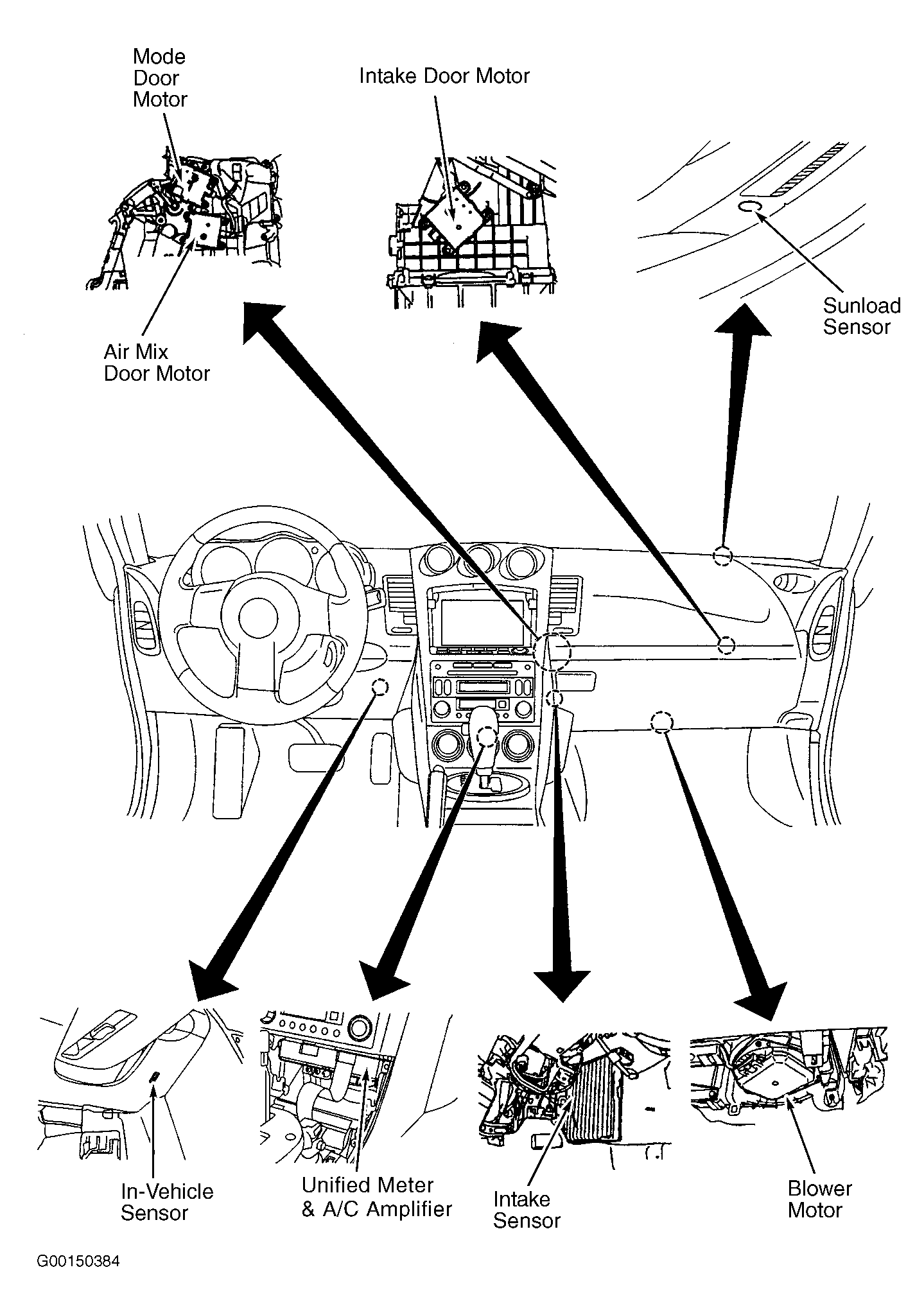

Fig 8: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.
