Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

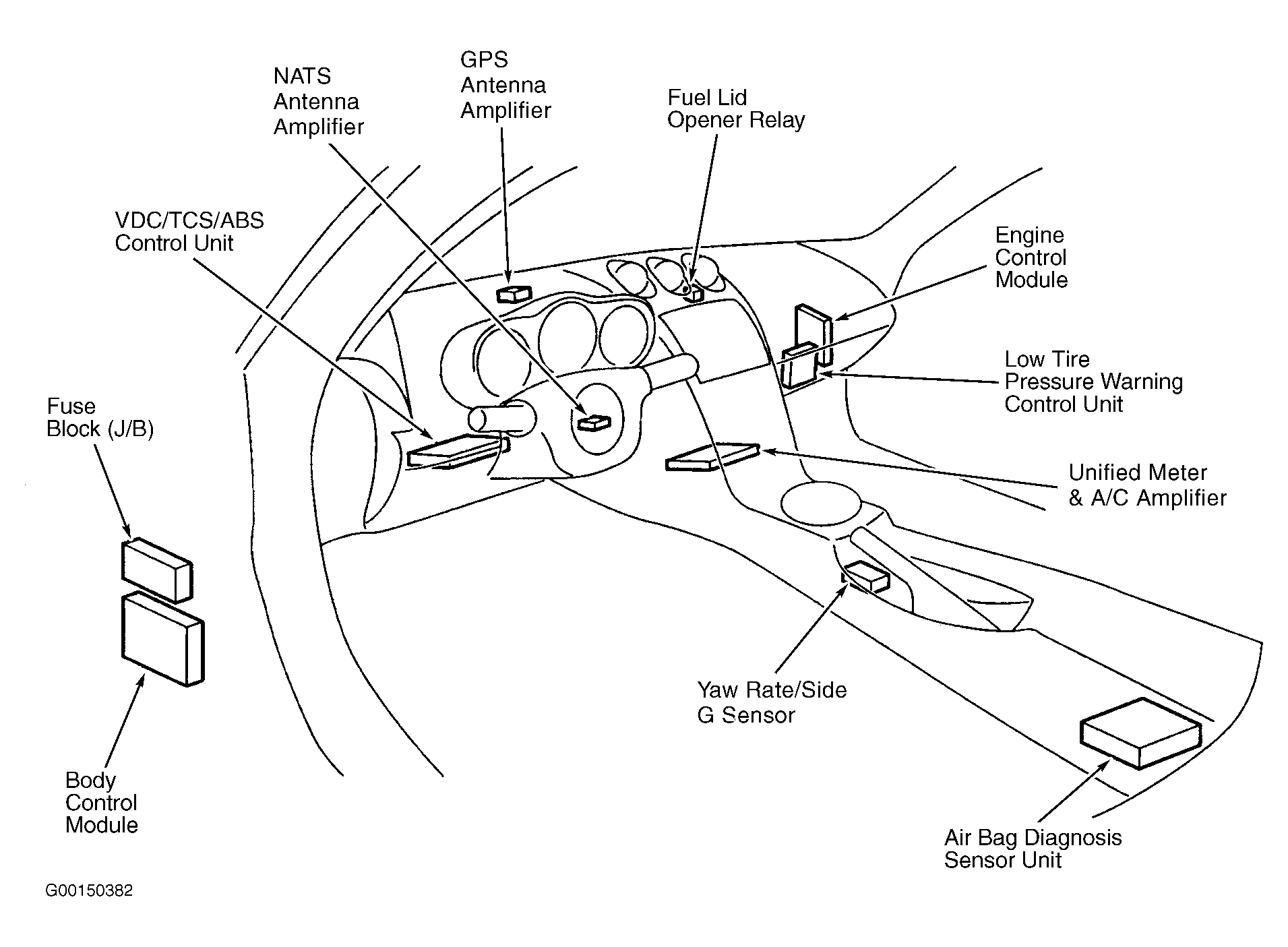

Fuse Block (J/B) Behind left kick panel. See Figure.

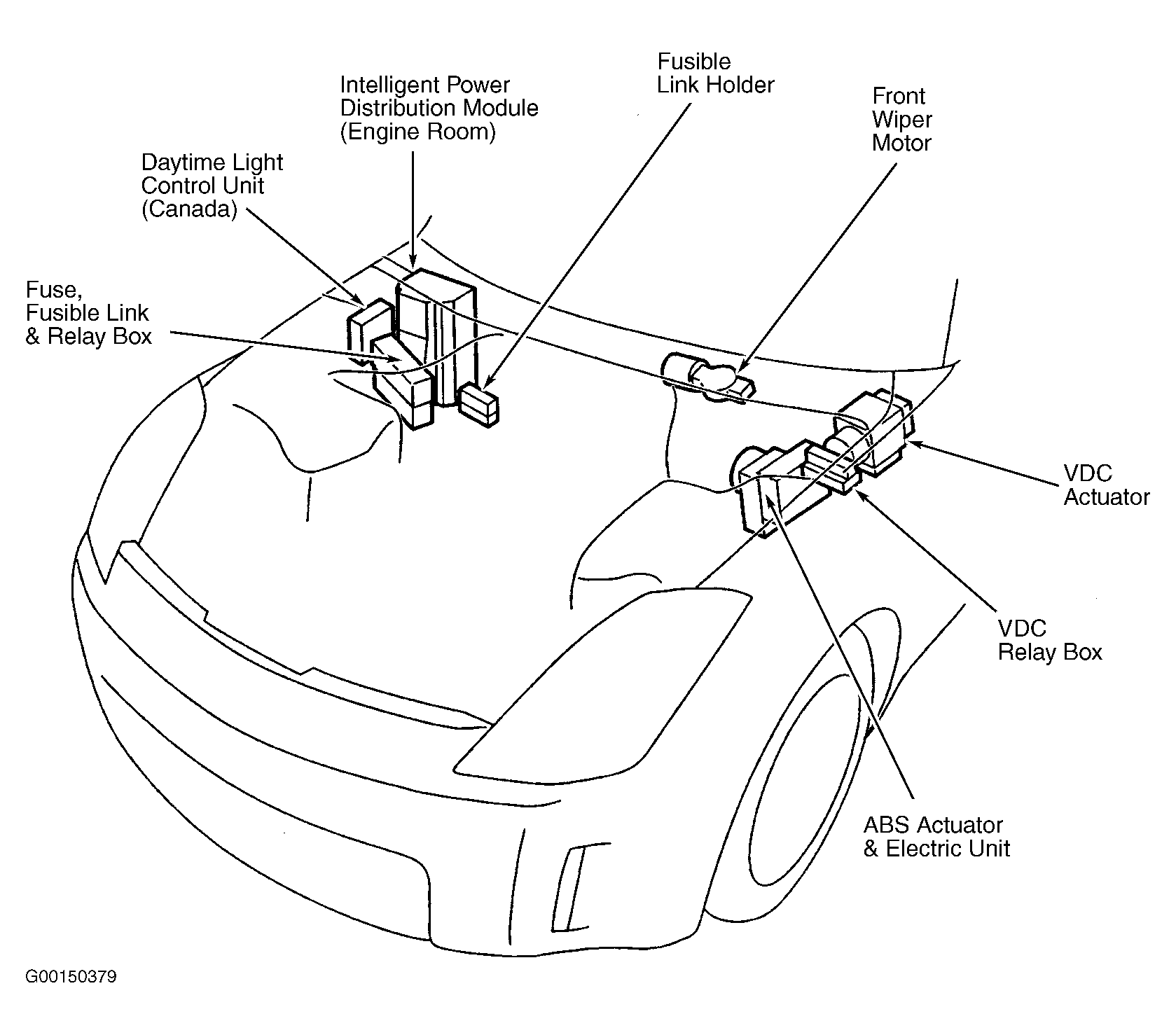

Fuse, Fusible Link & Relay Box At right rear side of engine compartment. See Figure.
Fusible Link Holder At right rear side of engine compartment. See Figure.
Intelligent Power Distribution Module (Engine Room) At right rear corner of engine compartment. See Figure.
Relay Box At right side of engine compartment.
VDC Relay Box At left rear of engine compartment. See Figure.
