Power Window System: Schematic

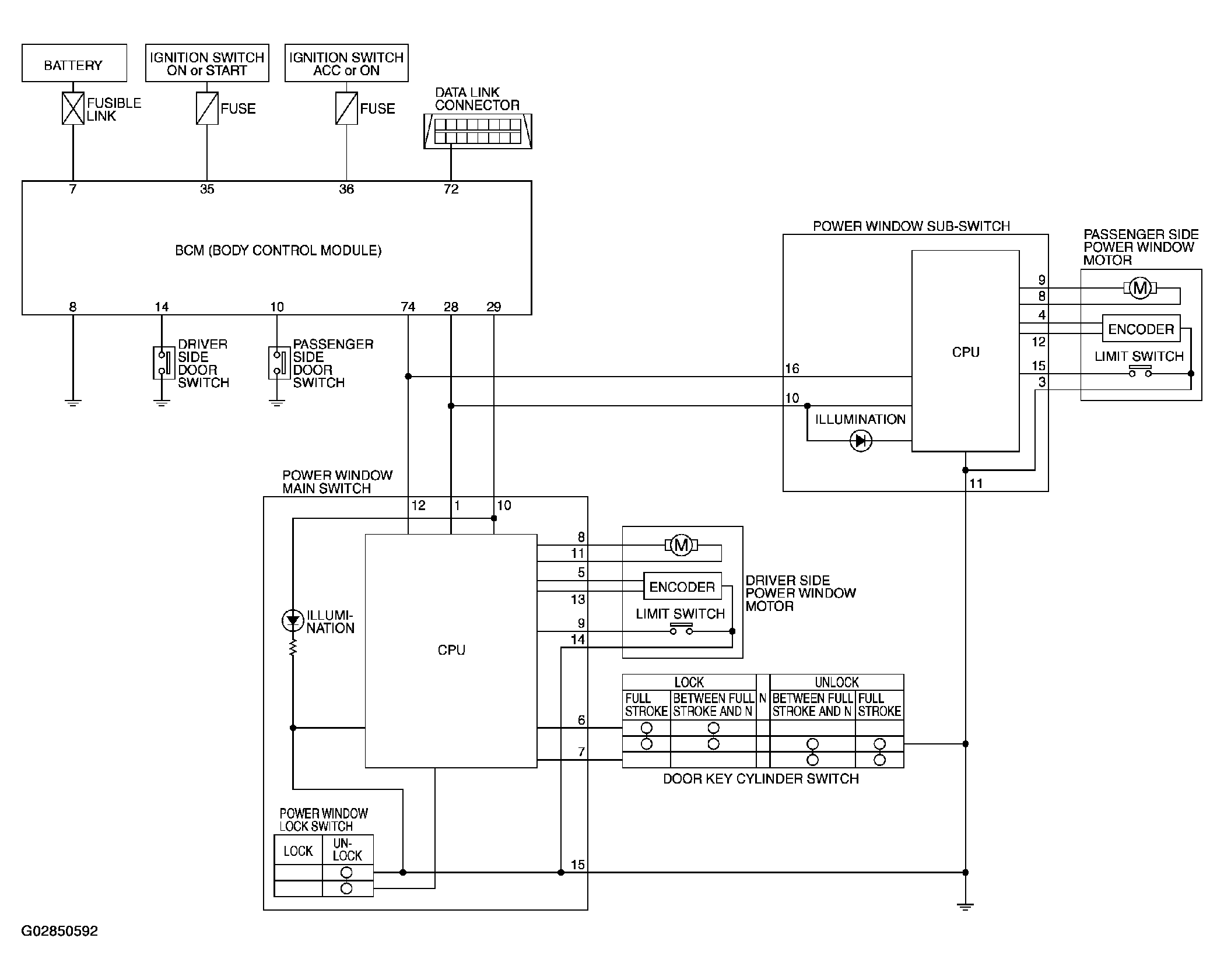

Fig 1: Identifying Power Window System Schematic Diagram

G02850592

Courtesy of NISSAN MOTOR CO., U.S.A.
