Automatic Transaxle Re4F03B
>>
Overall System
>>
Control Valve
>>
Function Of Control Valves
Function Of Control Valves

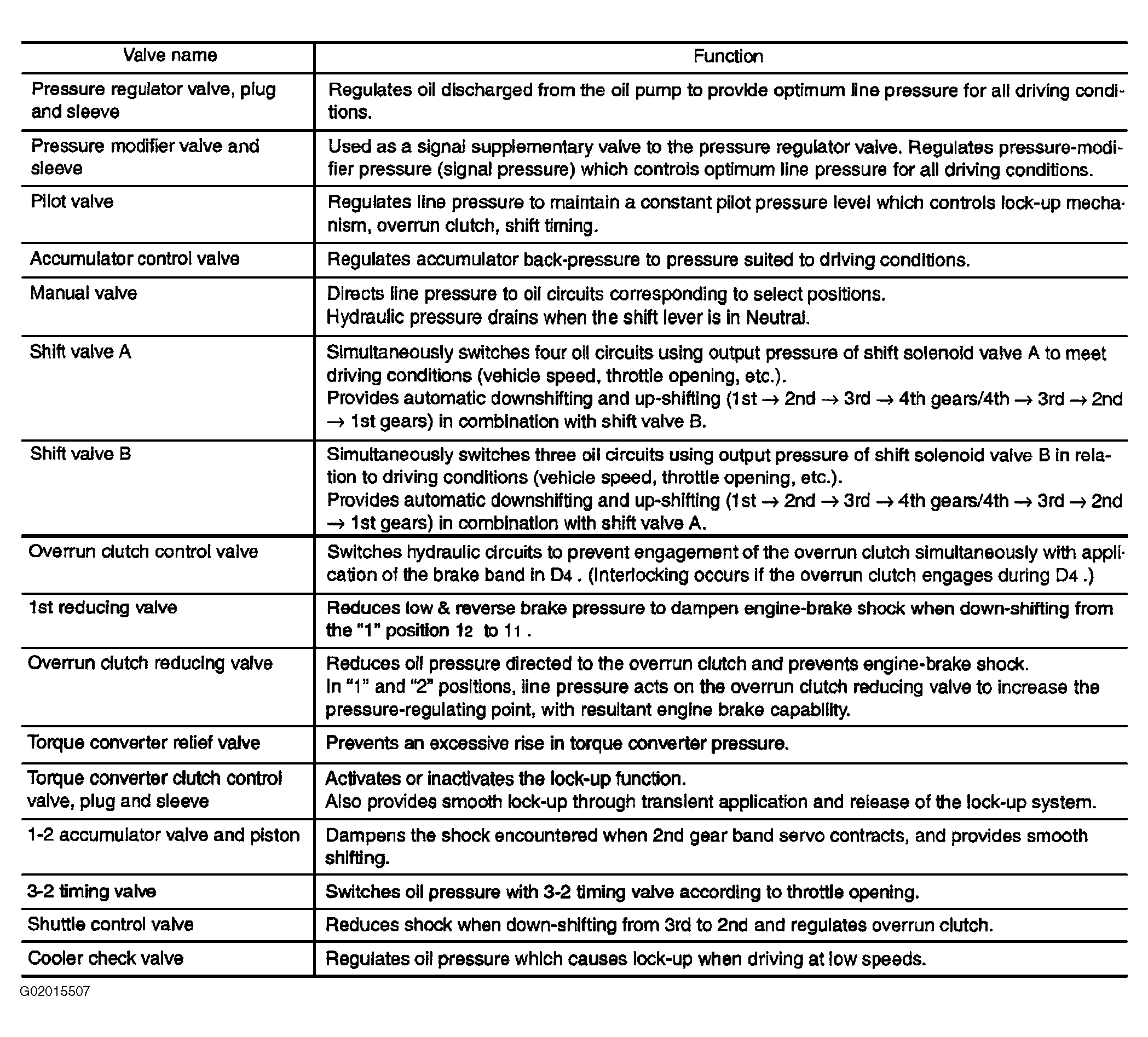

Fig 1: Identifying Control Valves & Functions
Courtesy of NISSAN MOTOR CO., U.S.A.
