Removal and Installation of Control Device and Cable

CAUTION:

• Note that the select side lock plate for securing the control cable is different from the one on the shift side.
• After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or Reverse.

Refer to Fig 1 for removal and installation procedure.

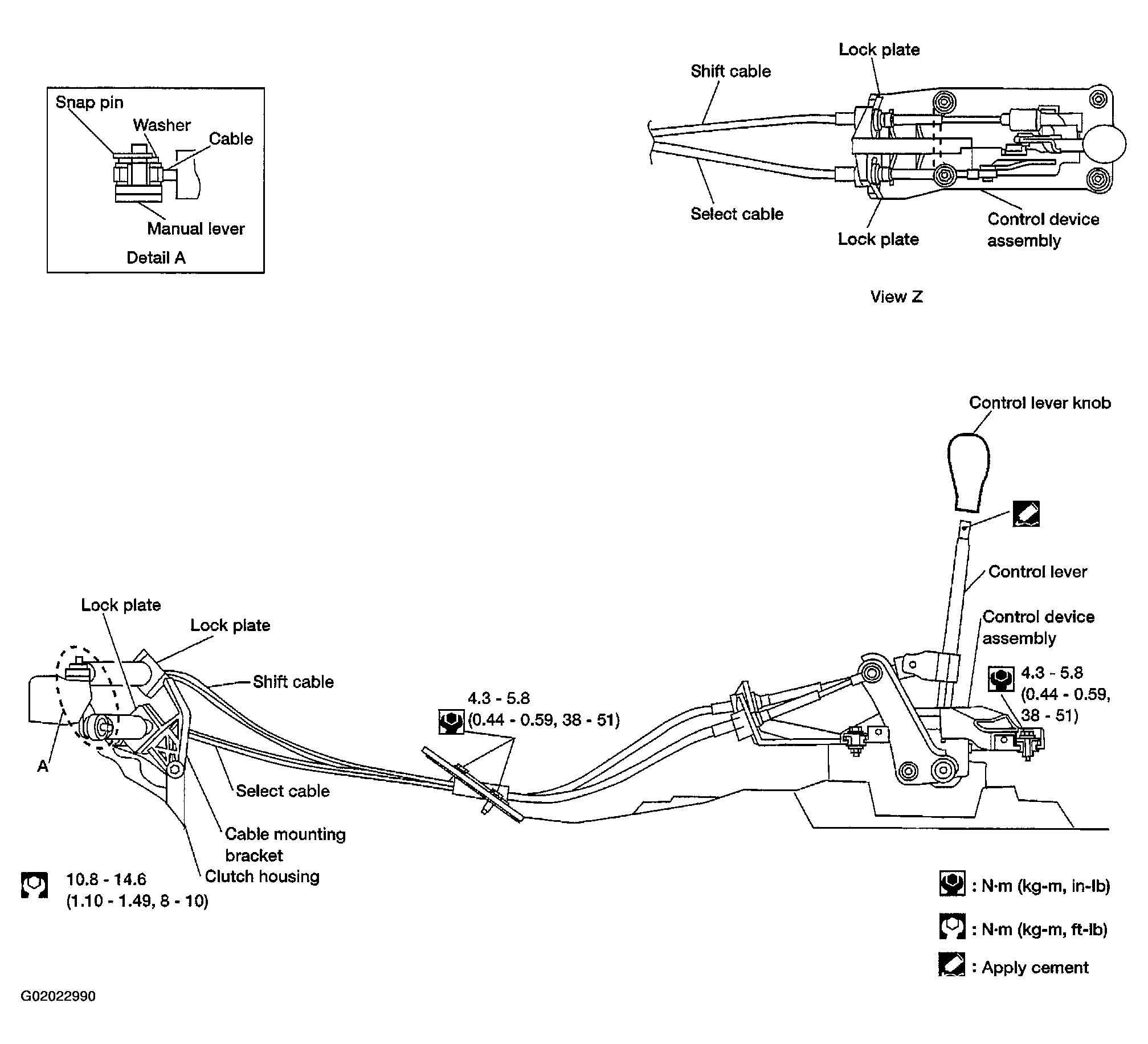

Fig 1: Exploded View Of Transaxle Control Linkage

Courtesy of NISSAN MOTOR CO., U.S.A.
