Clutch Master Cylinder: Components

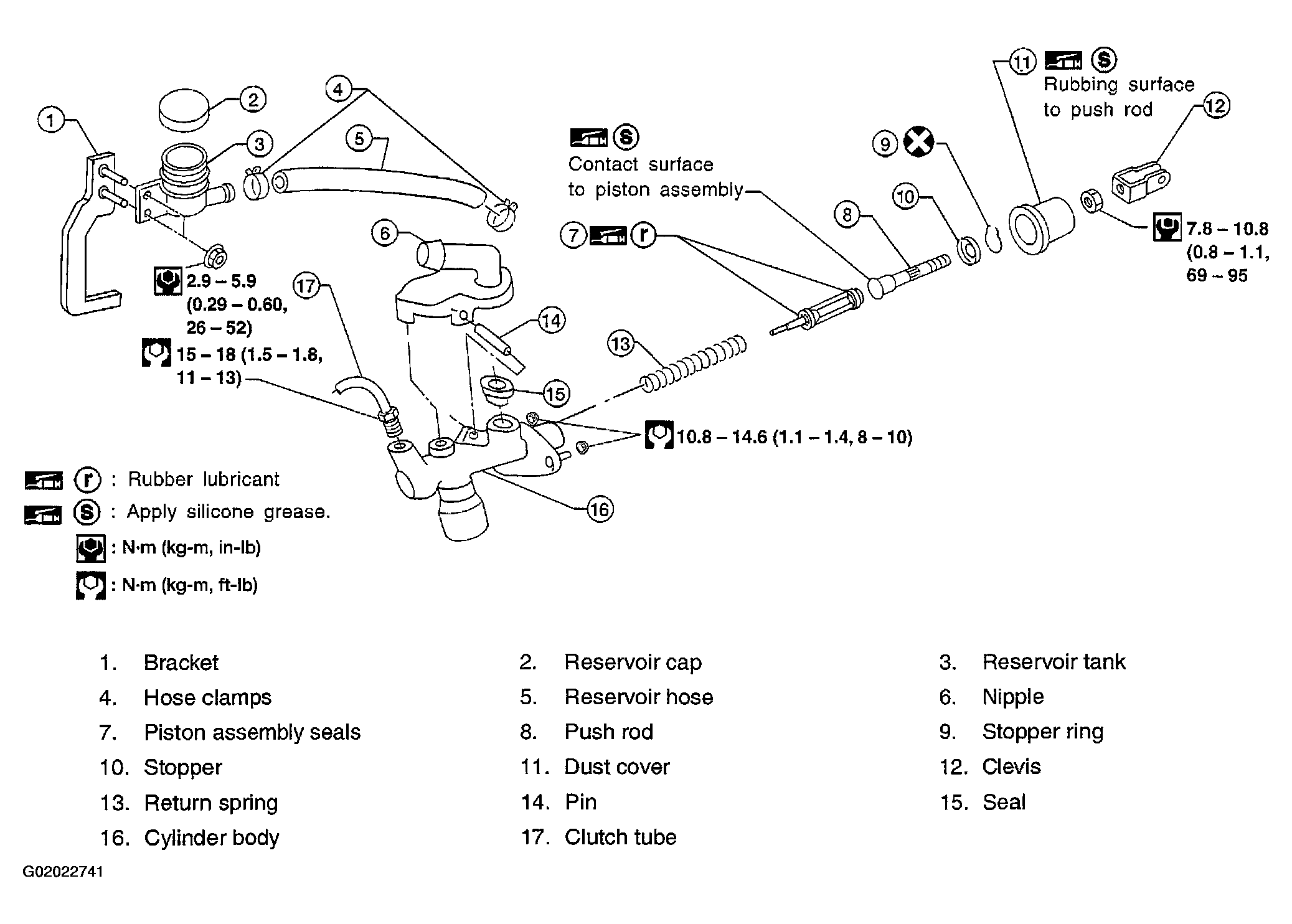

Fig 1: Exploded View Of Clutch Master Cylinder
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
