Section 12 (Automatic Transaxle Re4F04B)
>>
Overall System
>>
Shift Mechanism
>>
Power Transmission
>>
1(1) Position
1(1) Position
WARNING:
This page is about a different variant/trim than selected.

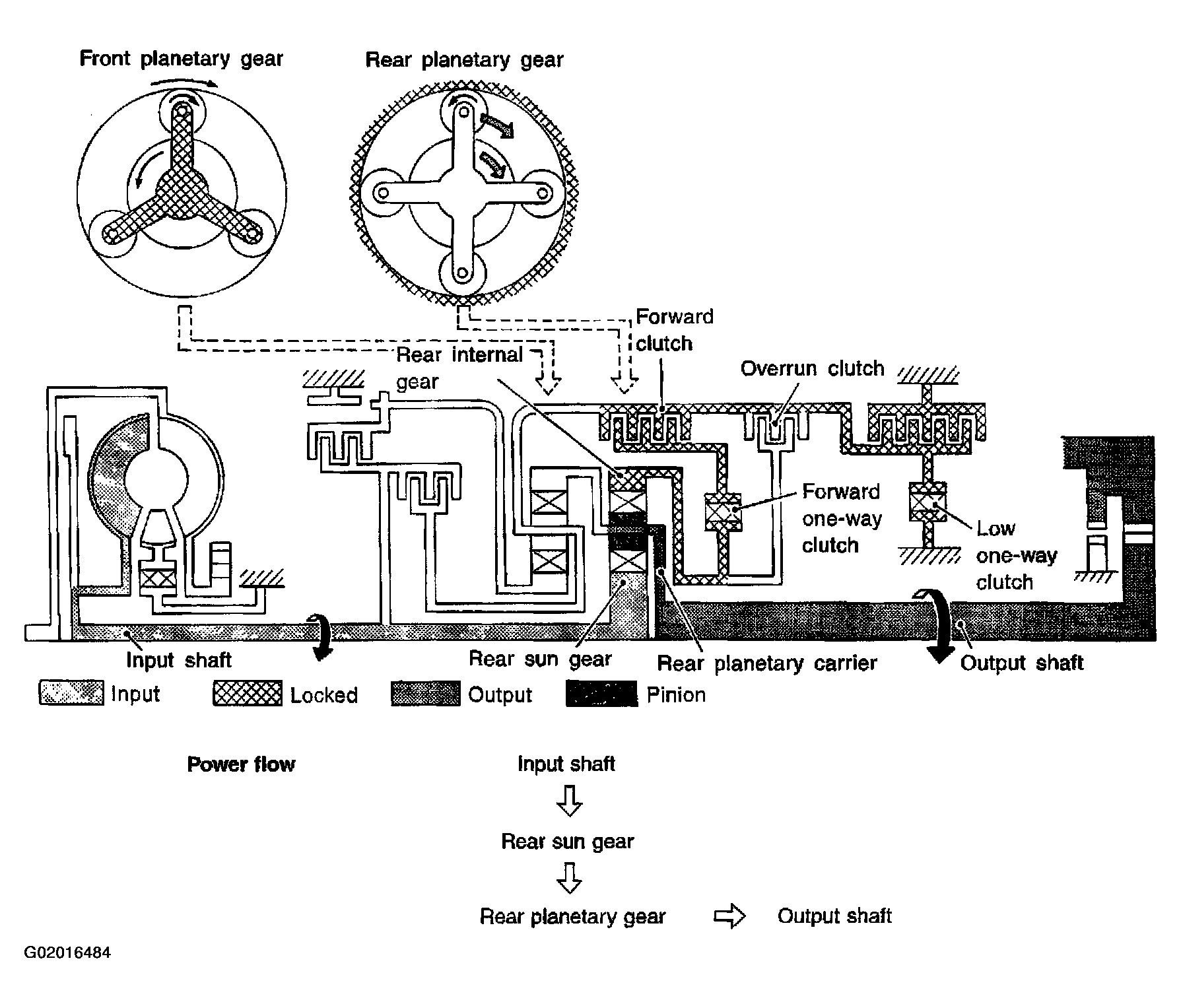

Fig 1: Automatic Transaxle System Power Transmission Diagram (1(1) Position)
Courtesy of NISSAN MOTOR CO., U.S.A.

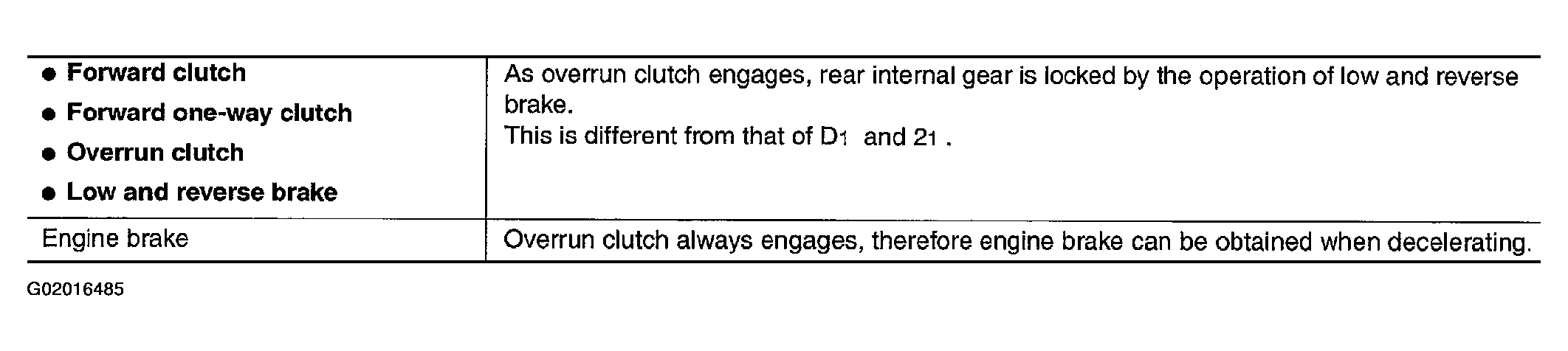

Fig 2: Components Operation Description Chart (1(1) Position)
Courtesy of NISSAN MOTOR CO., U.S.A.
