Clutch And Band Chart

WARNING: This page is about a different variant/trim than selected.
NOTE: For identification of components called out in heading, see Figure.

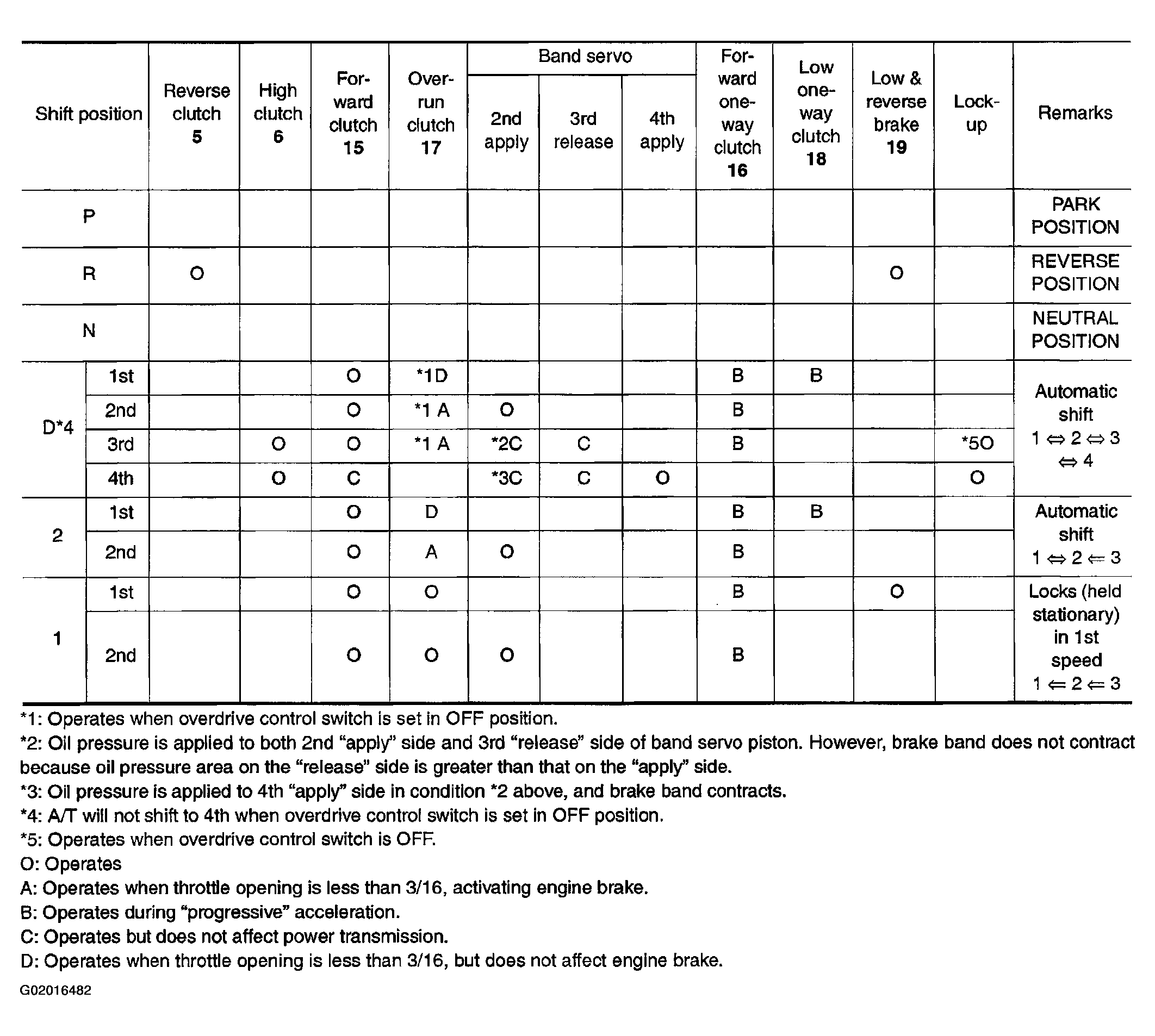

Fig 1: Clutch And Band Chart (1 Of 2)
G02016482Courtesy of NISSAN MOTOR CO., U.S.A.
