A/T Electrical Parts Location

WARNING: This page is about a different variant/trim than selected.

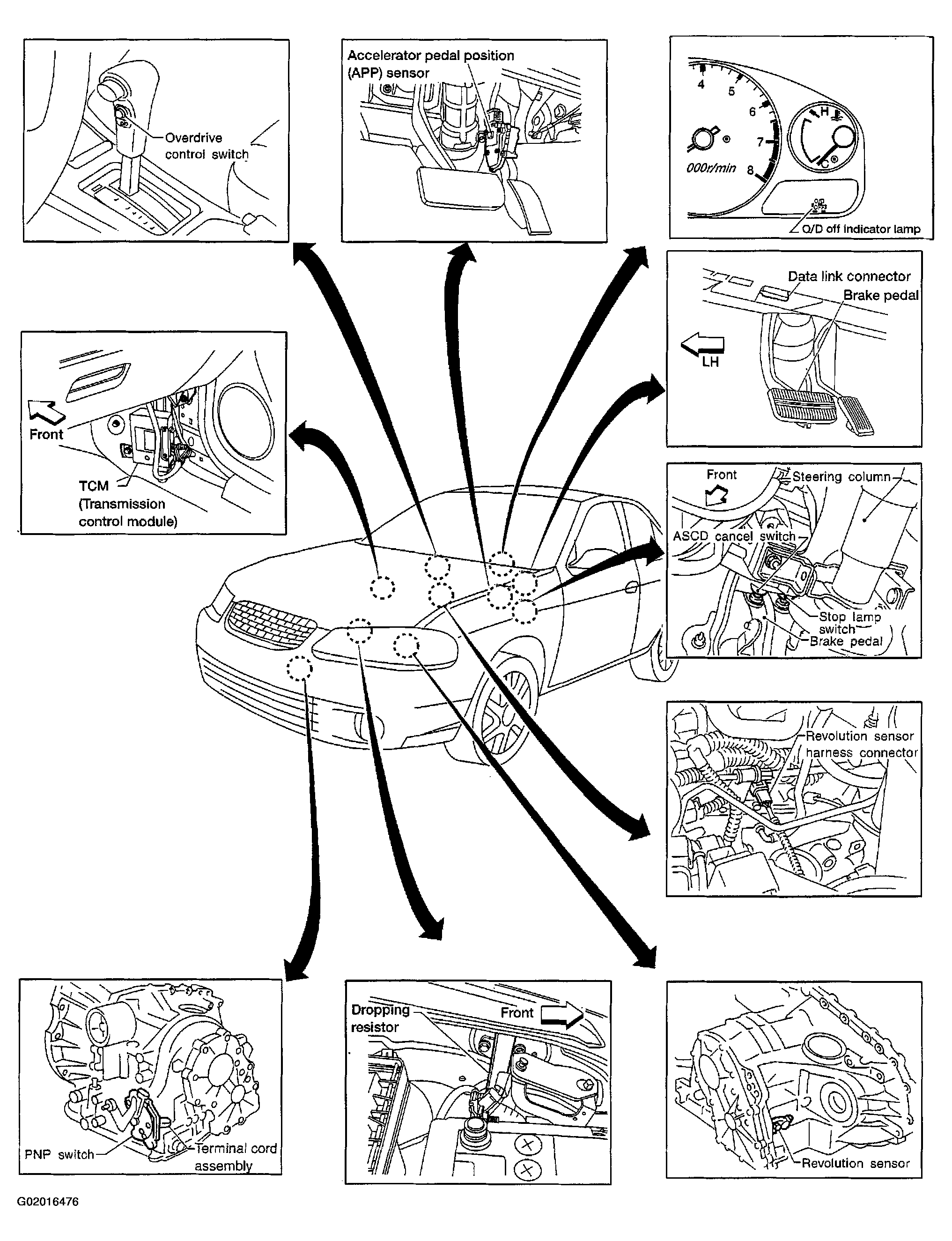

Fig 1: Locating Automatic Transmission System Electrical Components
G02016476Courtesy of NISSAN MOTOR CO., U.S.A.
