Removal And Installation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

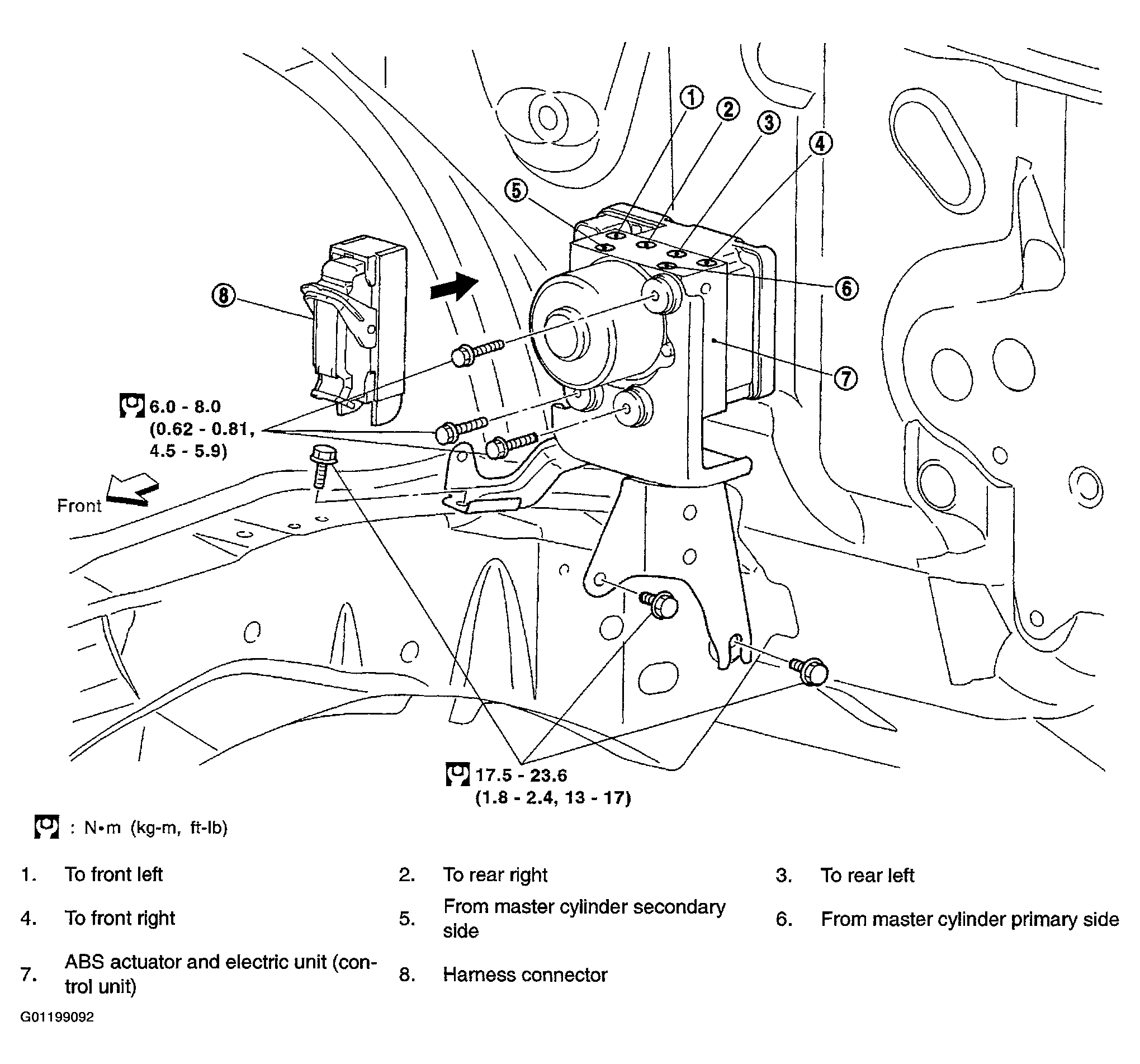

Fig 1: Removing And Installing Actuator And Electric Unit (Assembly)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Pay attention to the following when removing actuator:

If the part number on the part number label (pasted on actuator upper surface) is the same, VDC/TCS/ABS actuator (integrated in control unit, part No. : 47660*****) cannot be used on another vehicle.
If it is used on another vehicle, ABS warning lamp, SLIP indicator lamp, VDC OFF indicator lamp may turn ON or VDC/TCS/ABS may not operate normally.

When replacing VDC/TCS/ABS actuator (integrated in control unit), must use new service parts.
Before servicing, disconnect battery cables.
To remove brake tube, use flare nut wrench to prevent flare nuts and brake tube from being damaged. To install, use flare nut wrench (commercial service tool).
Do not remove and install actuator by holding harness.
After work is completed, bleed air from brake piping. Refer to BLEEDING BRAKE SYSTEM .
