Fitting Adjustment: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

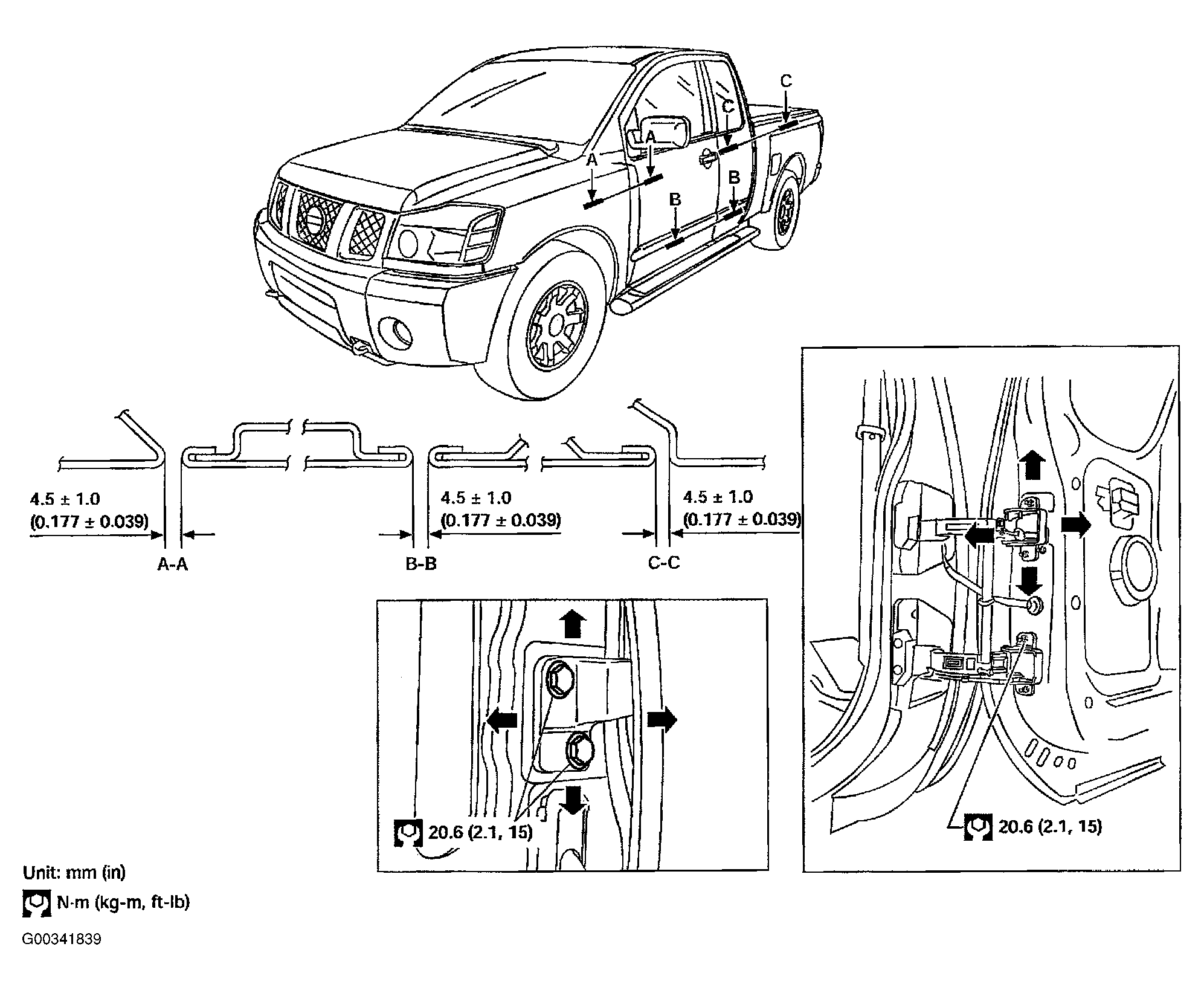

Fig 1: Door Fitting Adjustment (King Cab)
G00341839Courtesy of NISSAN MOTOR CO., U.S.A.

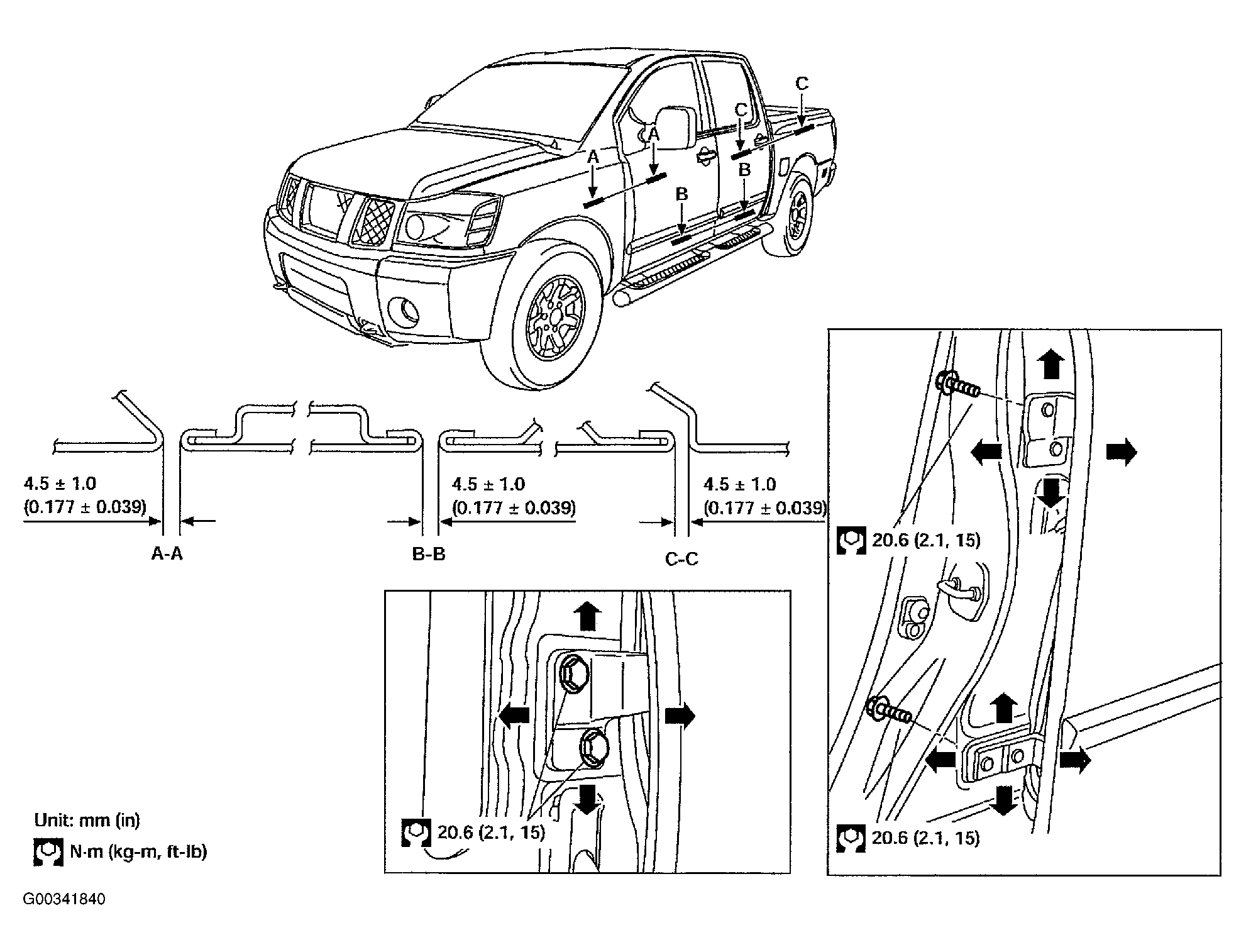

Fig 2: Door Fitting Adjustment (Crew Cab)
G00341840Courtesy of NISSAN MOTOR CO., U.S.A.
