Active Test

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Operation Procedure

CAUTION:

Do not perform active test while driving the vehicle.
Make sure to completely bleed air from brake system.
Active test cannot be performed when ABS warning lamp is on.

Connect CONSULT-II and CONSULT-II CONVERTER to connector to data link connector and start the engine.
Touch "START" on the display.
Touch "ABS" and "ACTIVE TEST".

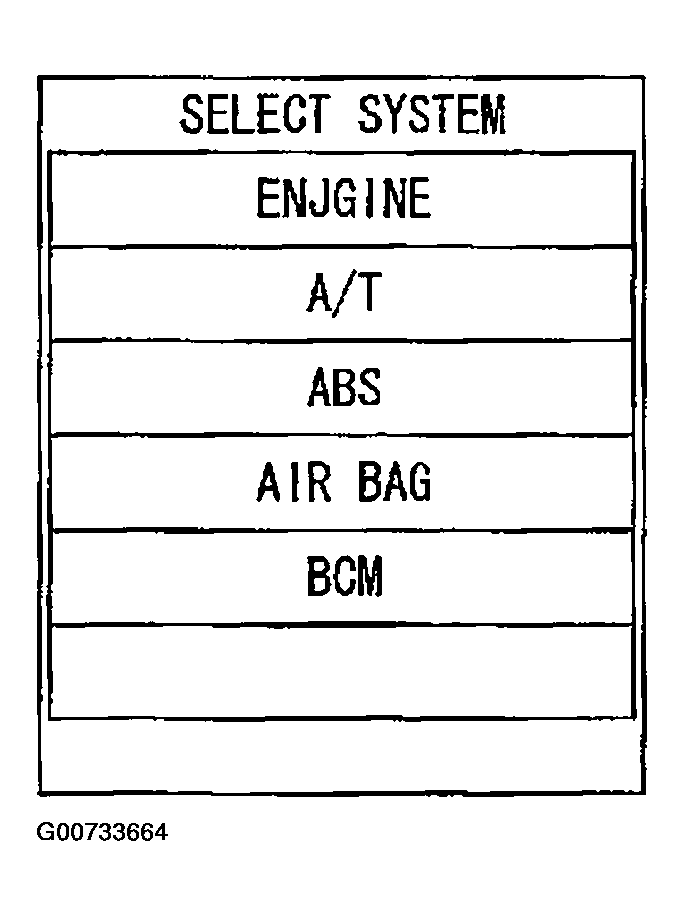

Fig 1: CONSULT-II Screen "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.

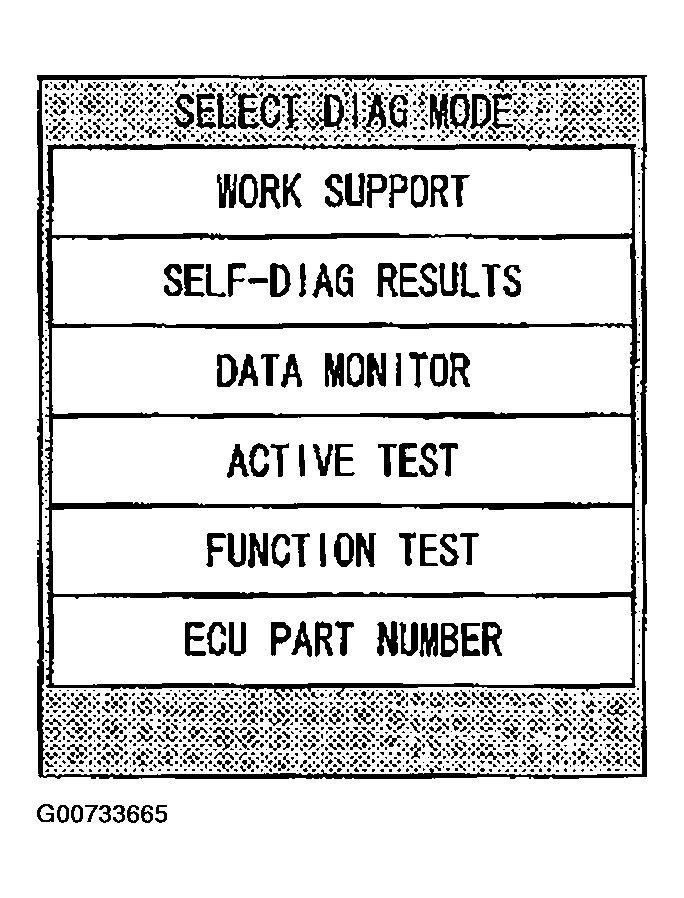

Fig 2: CONSULT-II Screen "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.
Test item selection screen is displayed.
Touch necessary test item.

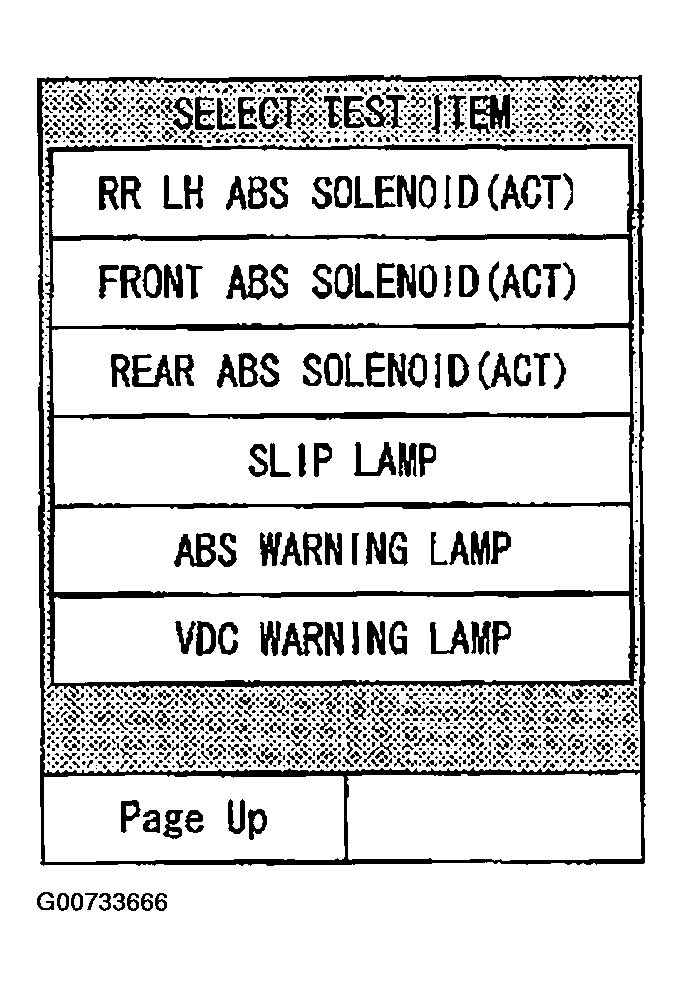

Fig 3: CONSULT-II Screen "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START" with "MAIN SIGNALS" line inverted.

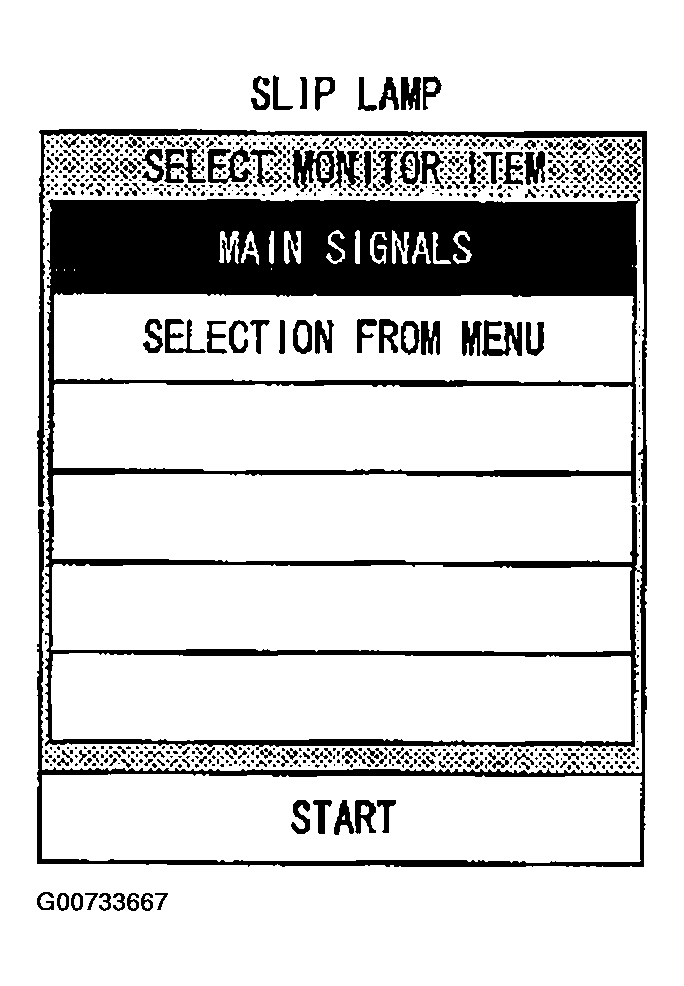

Fig 4: CONSULT-II Screen "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.
Active test screen is displayed.

Fig 5: CONSULT-II Screen "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.

Test Item

Solenoid valve
VDC OFF indicator lamp
ABS motor
SLIP indicator lamp
ABS warning lamp
ASCD signal

Solenoid Valve

To perform active test of ABS functions, select major items for each test item. To perform active test of VDC/TCS functions, select item menu for each test item.

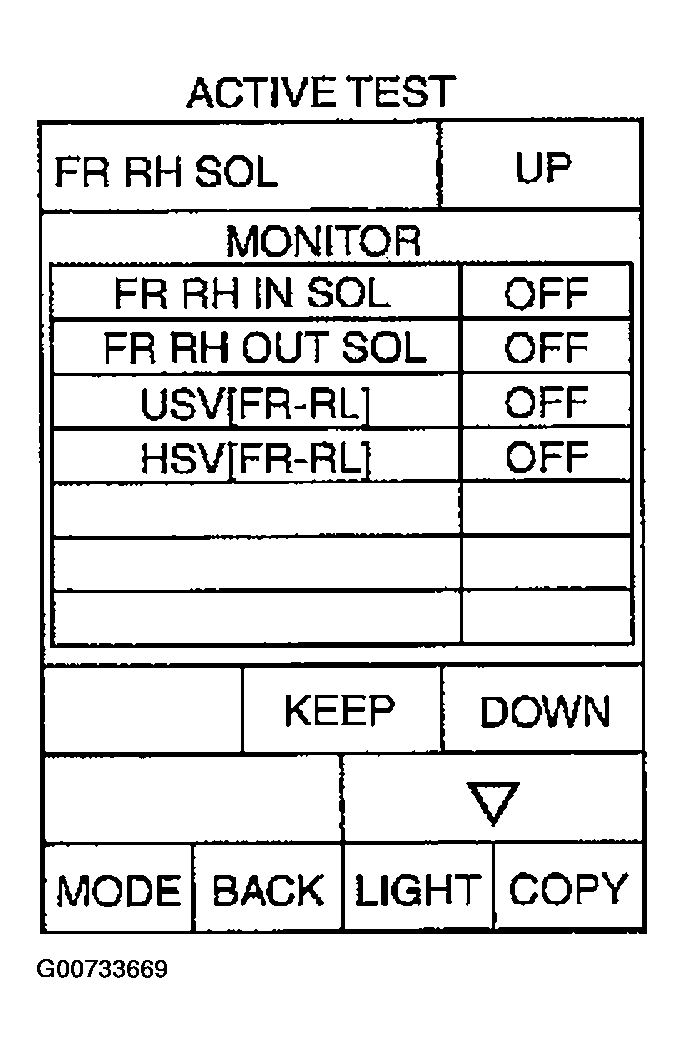

For ABS solenoid valve, touch "UP", "KEEP", and "DOWN". For ABS solenoid valve (ACT), touch "UP," "ACT UP," and "ACT KEEP". Use screen monitor to check that solenoid valve operates as shown in Solenoid Valve Operation Chart. Refer to Fig 7.

Fig 6: CONSULT-II Screen "ACTIVE TEST"

Courtesy of NISSAN MOTOR CO., U.S.A.

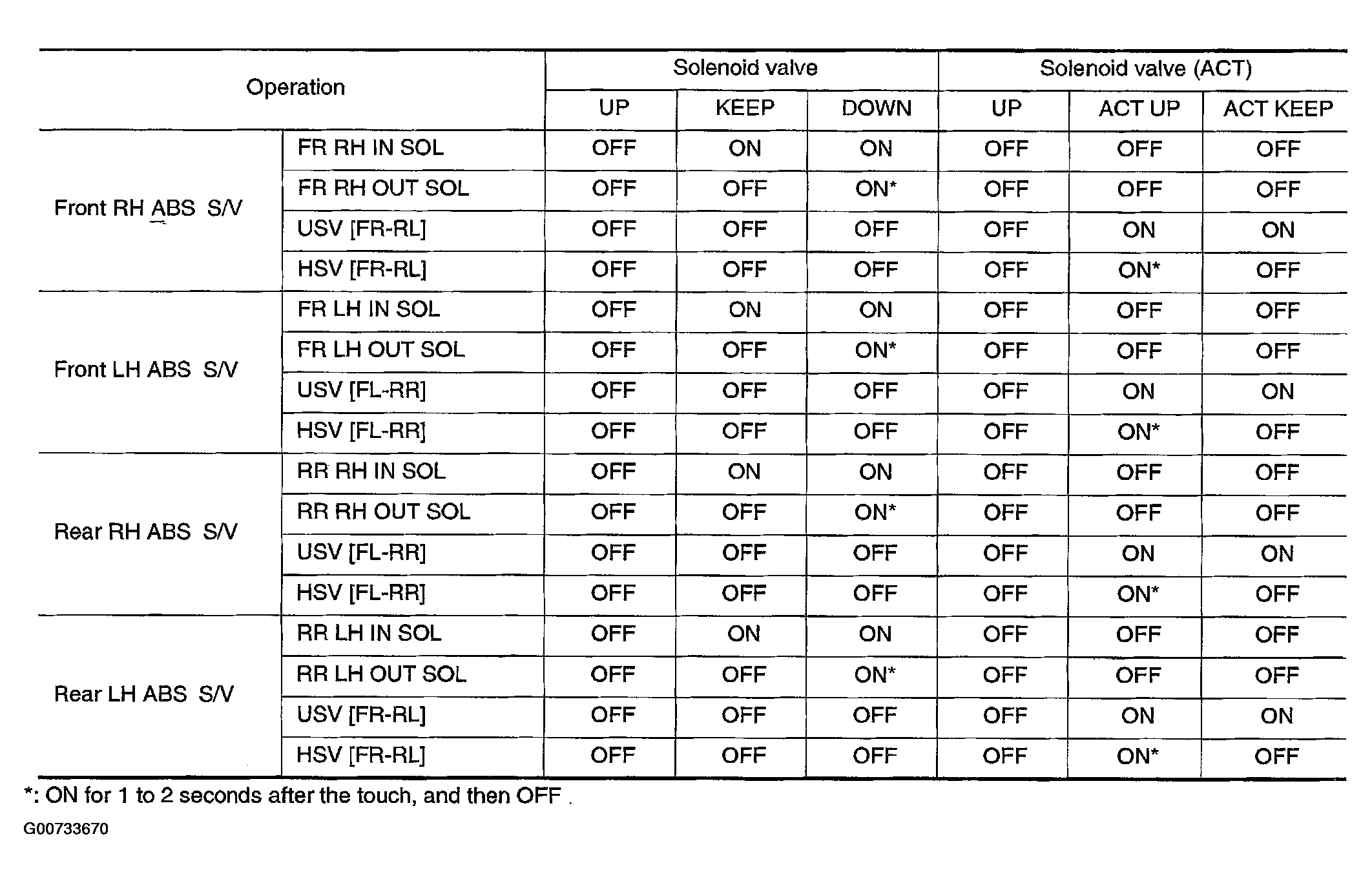

Solenoid Valve Operation Chart

Fig 7: Solenoid Valve Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST STOP" is displayed approximately 10 seconds after operation starts.
To conduct a retest after "TEST STOP" is displayed, touch "BACK" and conduct the test from step 6.

VDC OFF Indicator Lamp

Touch "ON" and "OFF" on the screen. Check that VDC OFF indicator lamp operates as shown in table below.

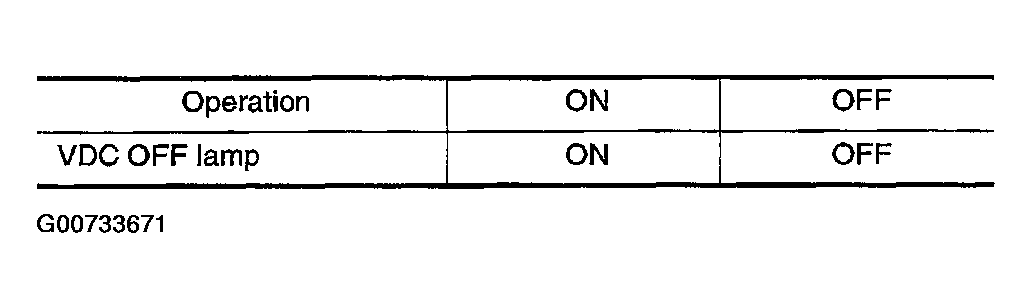

Fig 8: VDC OFF Indicator Lamp Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.

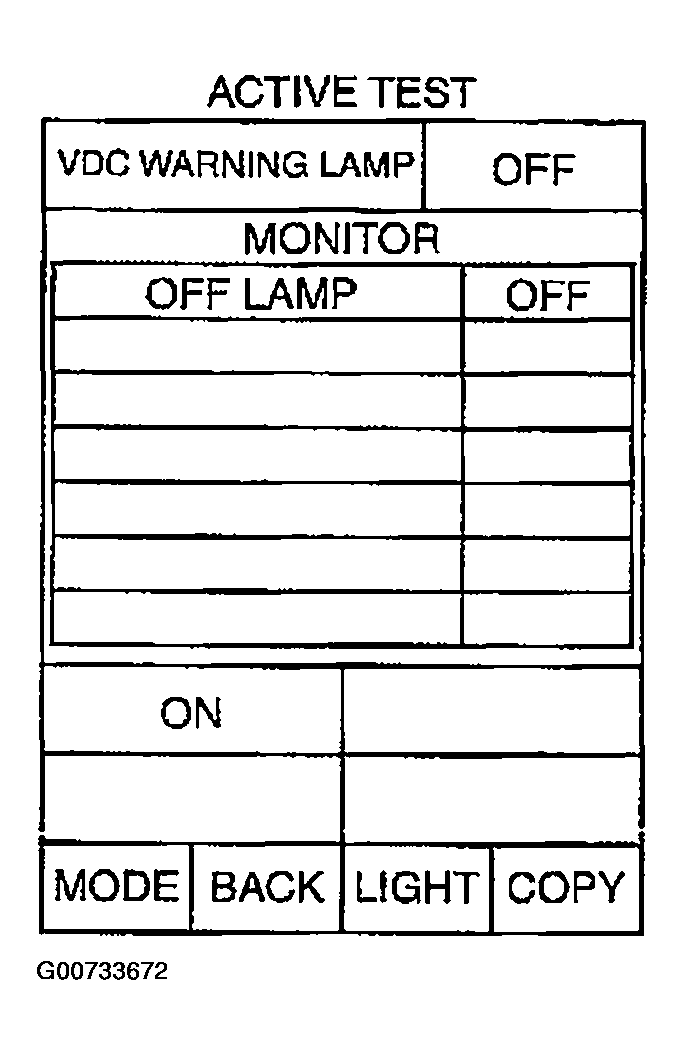

Fig 9: CONSULT-II Screen "ACTIVE TEST"

Courtesy of NISSAN MOTOR CO., U.S.A.

ABS Motor

Touch "ON" and "OFF" on the screen. Check that motor relay operates as shown in table below.

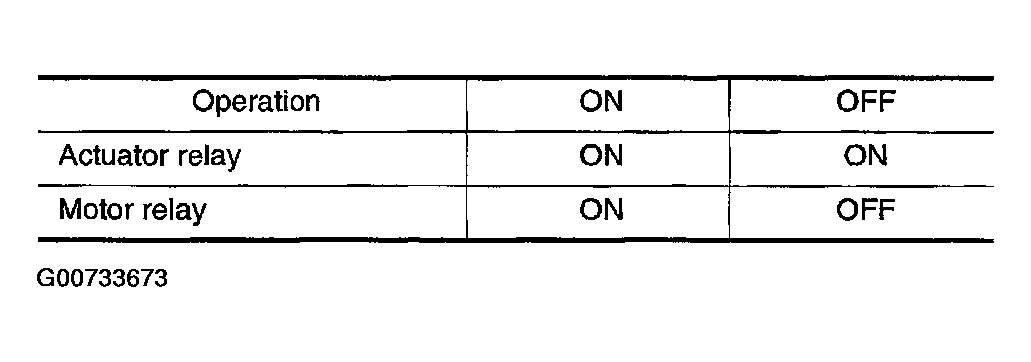

Fig 10: ABS Motor Relay Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST STOP" is displayed approximately 10 seconds after operation starts.

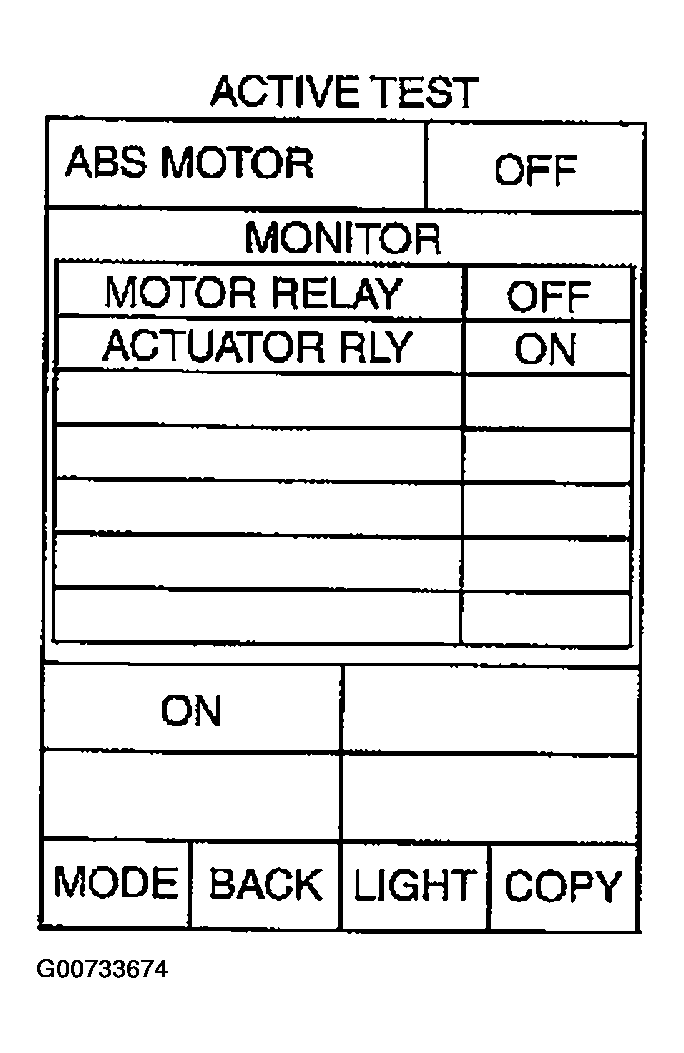

Fig 11: CONSULT-II Screen "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.

SLIP Indicator Lamp

Touch "ON" and "OFF" on the screen. Check that SLIP indicator lamp operates as shown in table below.

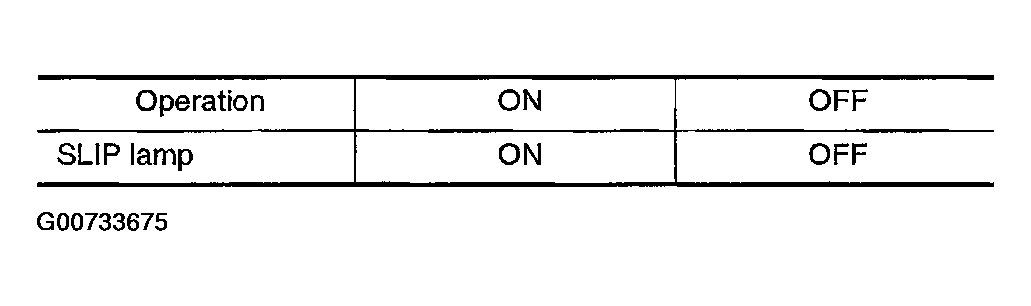

Fig 12: SLIP Indicator Lamp Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.

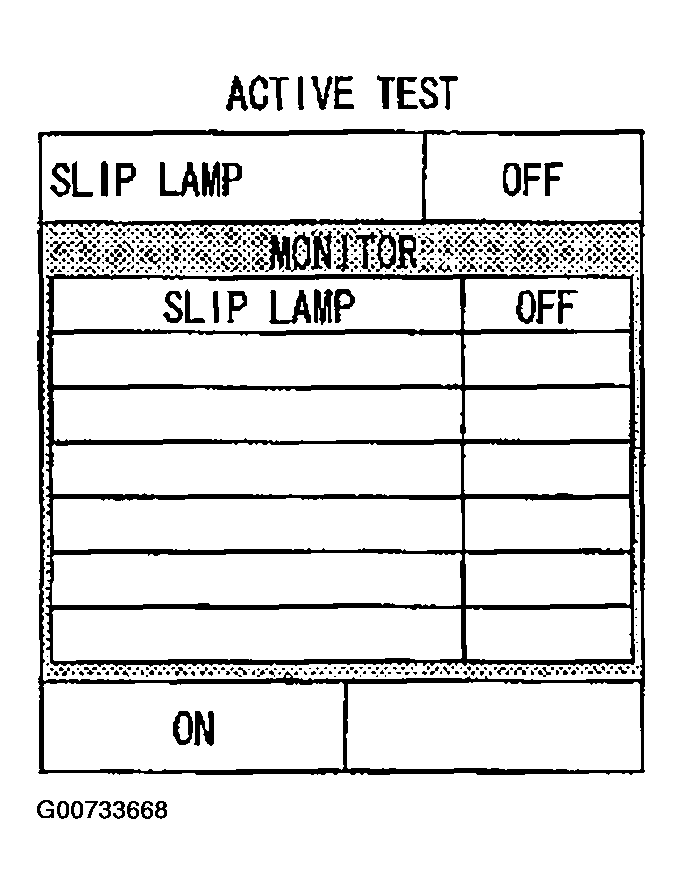

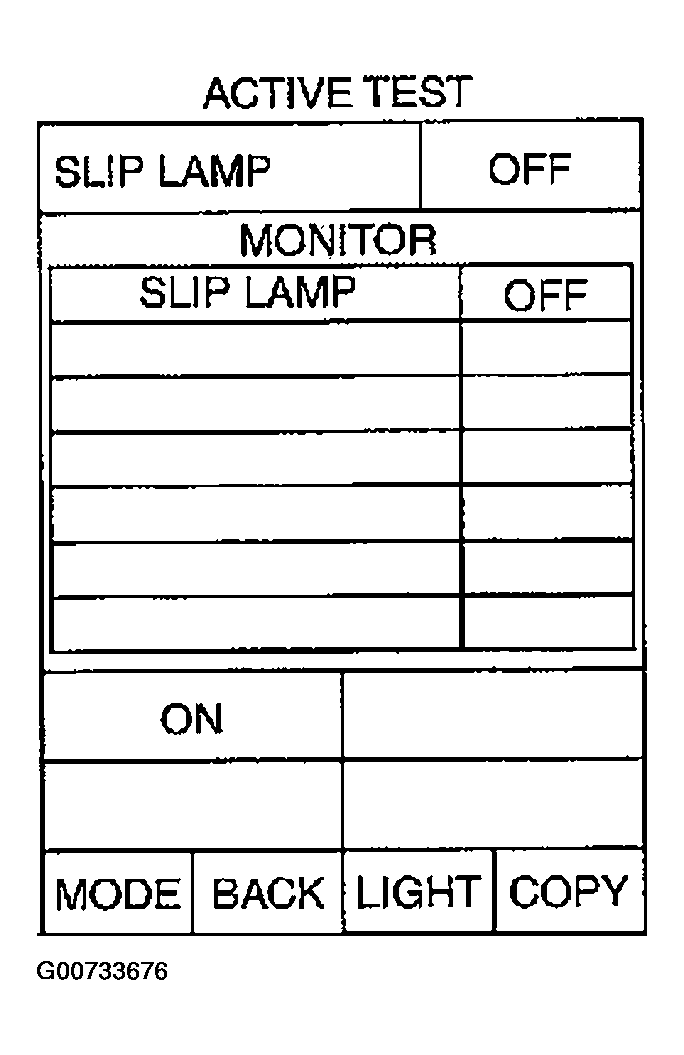

Fig 13: CONSULT-II Screen "ACTIVE TEST"

Courtesy of NISSAN MOTOR CO., U.S.A.

ABS Warning Lamp

Touch "ON" and "OFF" on the screen. Check that ABS warning lamp operates as shown in table below.

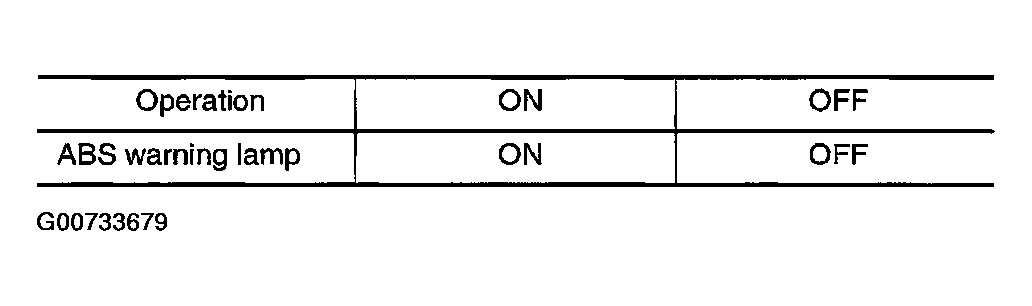

Fig 14: ABS Warning Lamp Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.

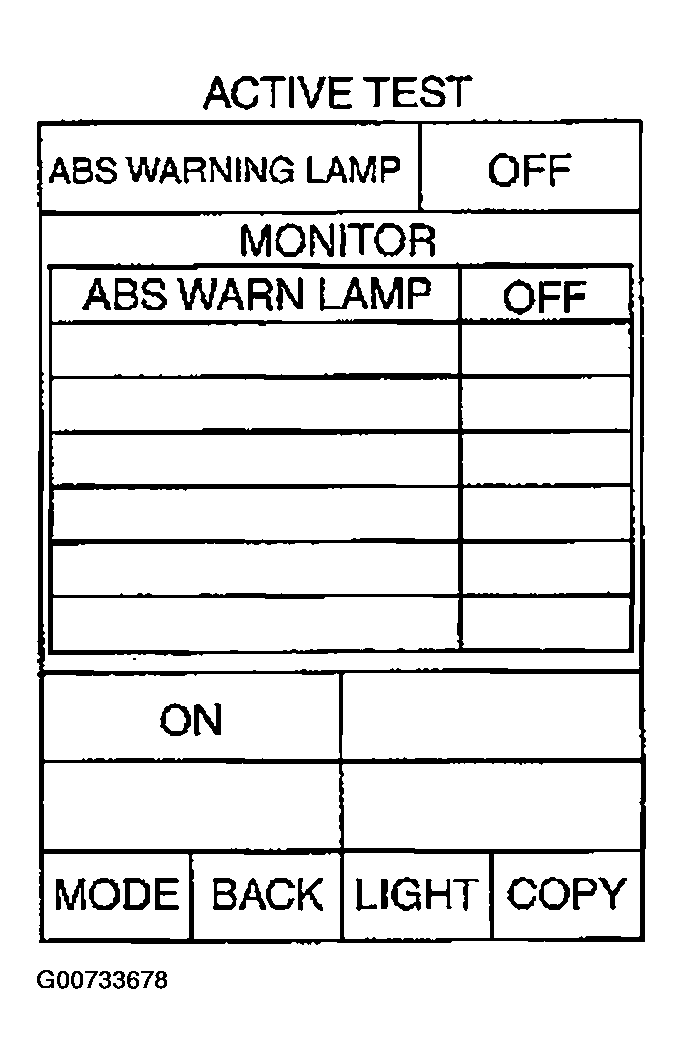

Fig 15: CONSULT-II Screen "ACTIVE TEST"

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD Signal

Touch "ON" and "OFF" on the screen. Check that ASCD signal is as shown in table below.

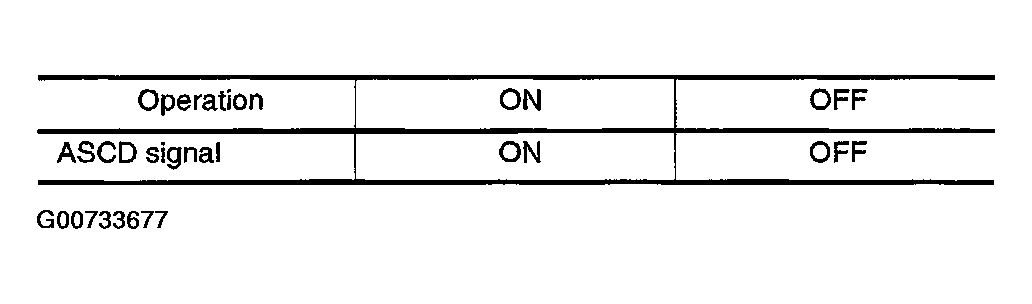

Fig 16: ASCD Signal Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
