Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove spiral cable assembly. Refer to SPIRAL CABLE .
  2. Remove steering angle sensor from spiral cable assembly.

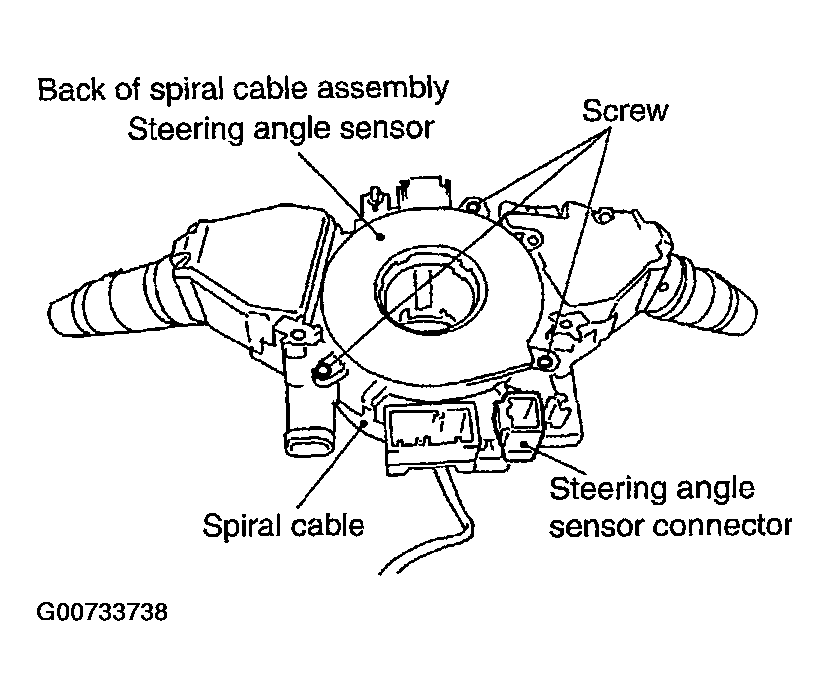

    Fig 1: Removal and Installation Of Steering Angle Sensor
    G00733738Courtesy of NISSAN MOTOR CO., U.S.A.
