Removal and Installation: Installation
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
Front
Refer to "WHEEL HUB & BEARING ASSEMBLY "
Rear
- Follow procedure below to install rear sensor rotor.

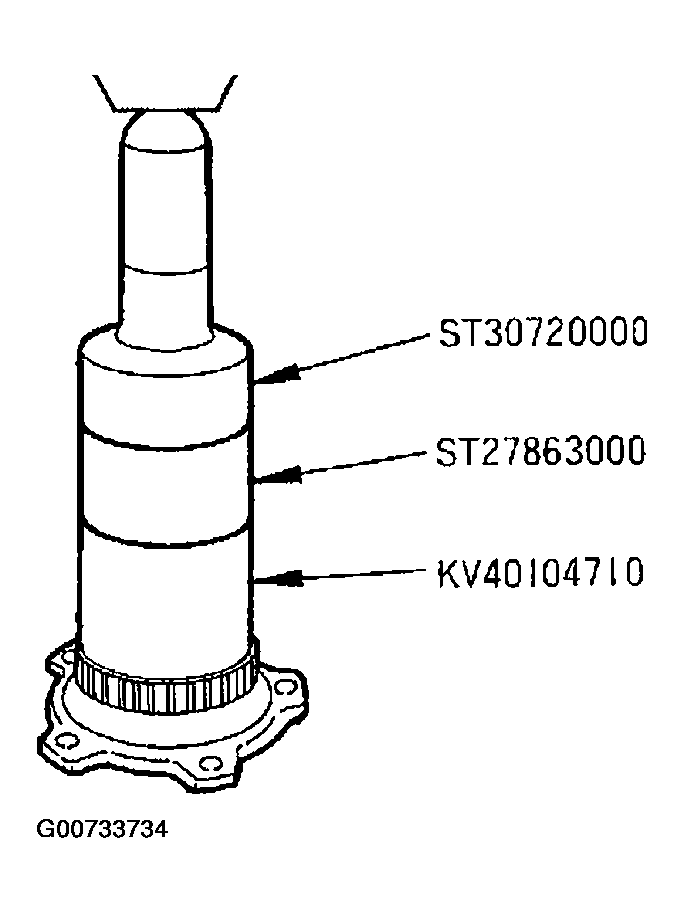

- Using a drift (special service tool), press rear sensor rotor onto the side flange.
- Install side flange. Refer to "SIDE OIL SEAL "
