SPECIAL SERVICE TOOLS

Tool number (Kent-Moore No.) Tool name		Description

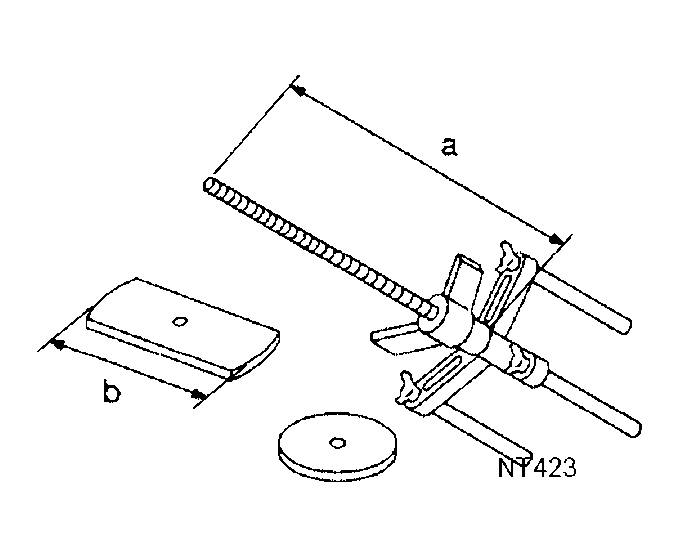

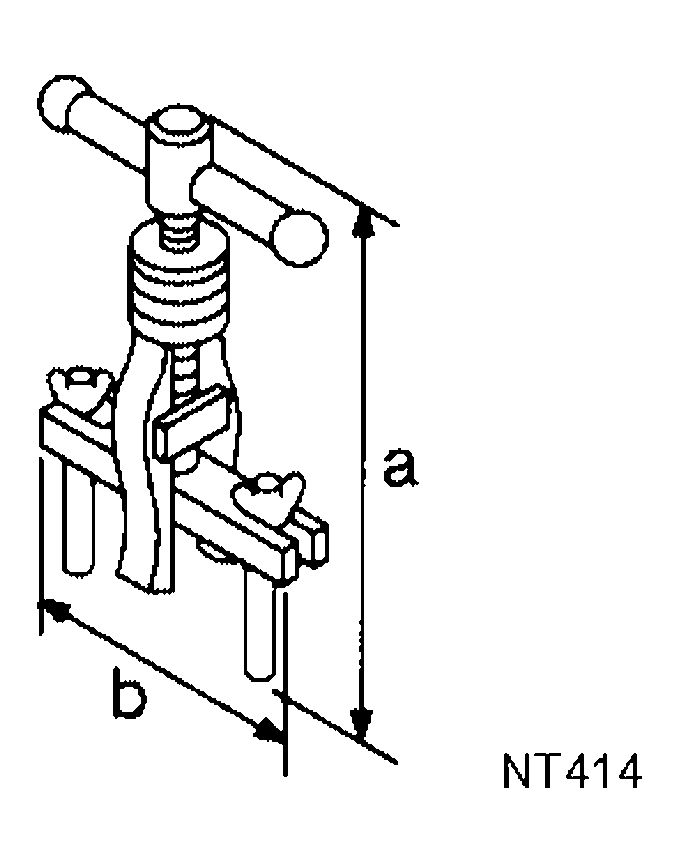

KV381054S0 (J-34286) Puller	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing differential side oil seals Removing differential side bearing outer race Removing idler gear bearing outer race a: 250 mm (9.84 in) b: 160 mm (6.30 in)

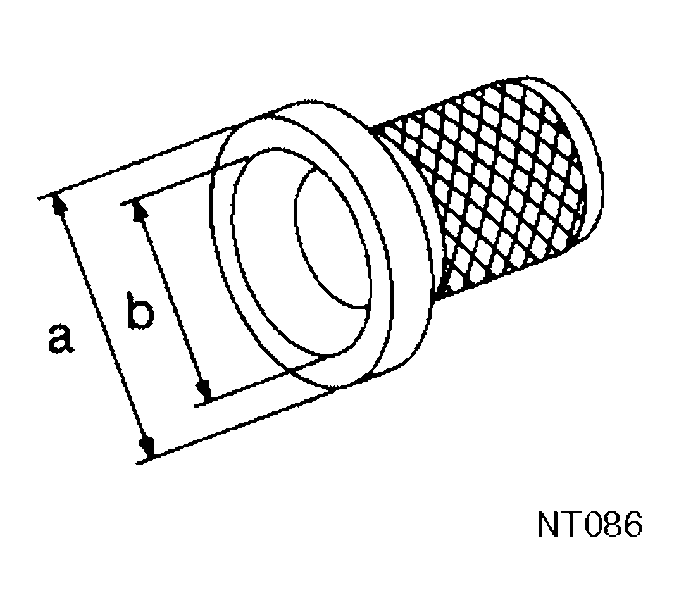

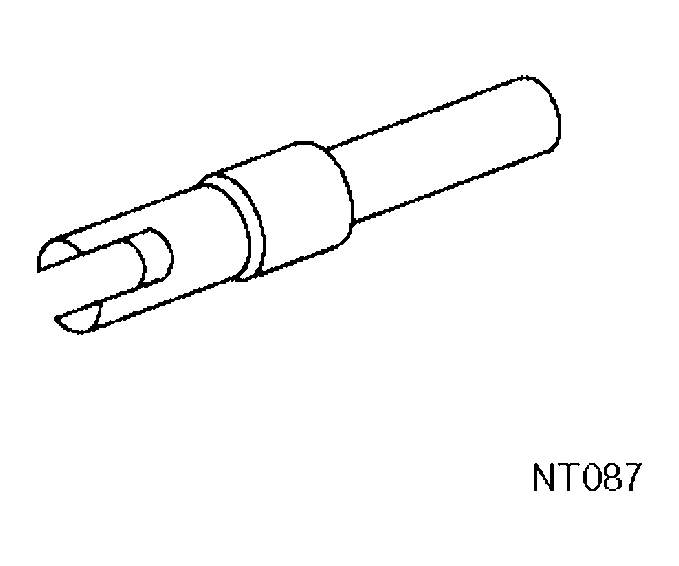

ST33400001 (J-26082) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing differential side oil seal (RH side) Installing oil seal on oil pump housing a: 60 mm (2.36 in) dia. b: 47 mm (1.85 in) dia.

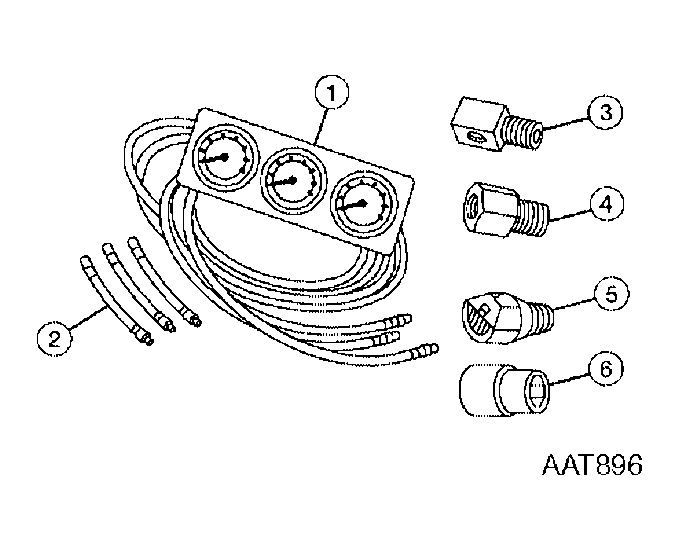

- (J-34301-C) Oil pressure gauge set - (J-34301-1) Oil pressure gauge - (J-34301-2) Hoses - (J-34298) Adapter - (J-34282-2) Adapter - (790-301-1230-A) 60° Adapter - (J-34301-15) Square socket	Courtesy of NISSAN MOTOR CO., U.S.A.	Measuring line pressure

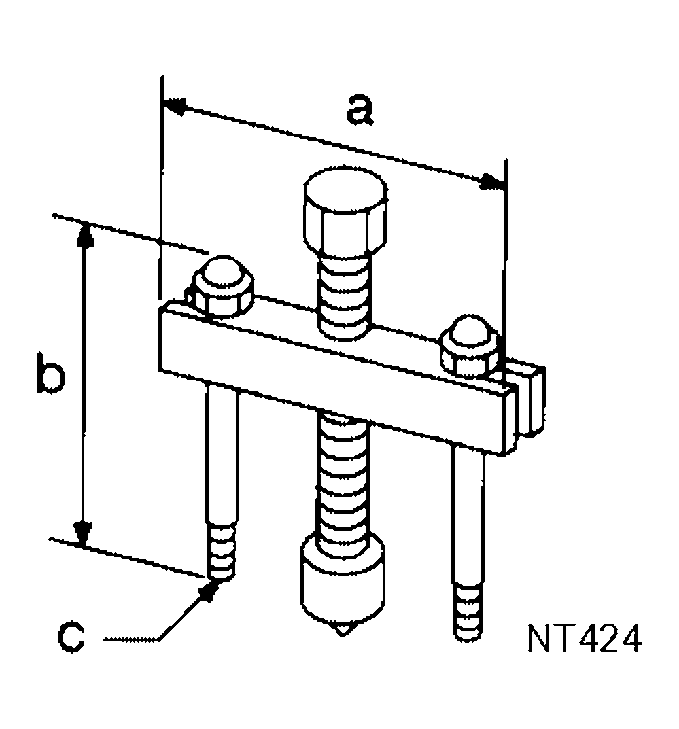

ST27180001 (J-25726-A) Puller	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing idler gear a: 100 mm (3.94 in) b: 110 mm (4.33 in) c: M8 x 1.25P

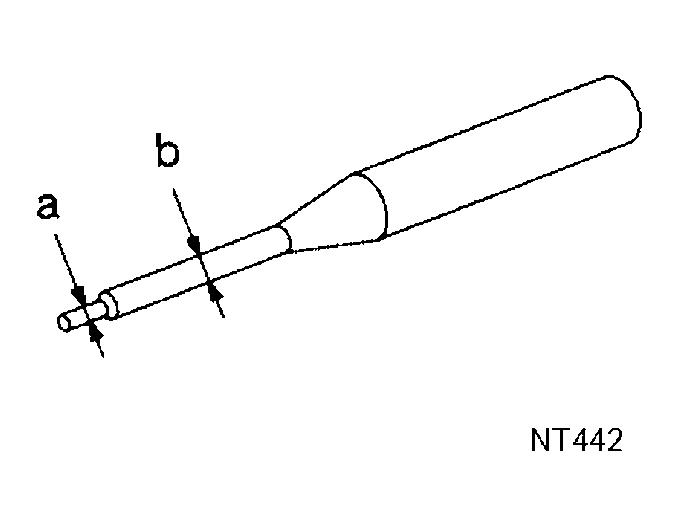

ST23540000 (J-25689-A) Pin punch	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing and installing parking rod plate and manual plate pins a: 2.3 mm (0.091 in) dia. b: 4 mm (0.16 in) dia.
ST25710000 (J-25689-A) Pin punch	Courtesy of NISSAN MOTOR CO., U.S.A.	Aligning groove of manual shaft and hole of transmission case a: 2 mm (0.08 in) dia.
KV32101000 (J-25689-A) Pin punch	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing and installing manual shaft retaining pin Removing and installing pinion mate shaft lock pin a: 4 mm (0.16 in) dia.
KV31102400 (J-34285 and J-34285-87) Clutch spring compressor	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing and installing clutch return springs Installing low & reverse brake piston a: 320 mm (12.60 in) b: 174 mm (6.85 in)

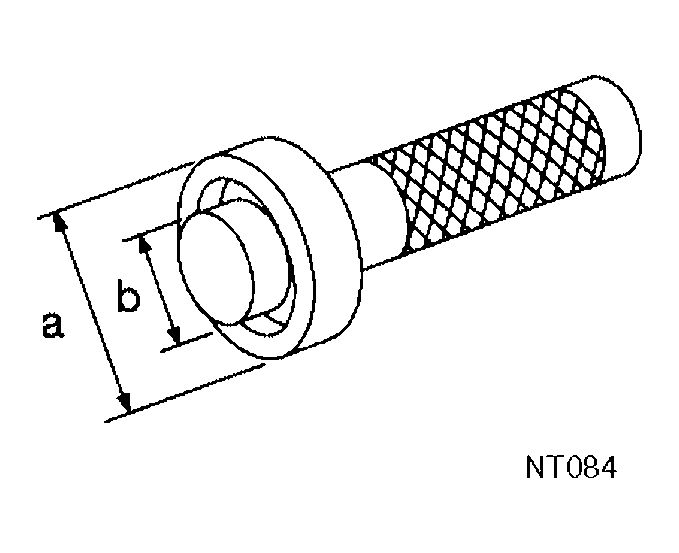

KV40100630 (J-26092) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing reduction gear bearing inner race Installing idler gear bearing inner race a: 67.5 mm (2.657 in) dia. b: 44 mm (1.73 in) dia. c: 38.5 mm (1.516 in) dia.

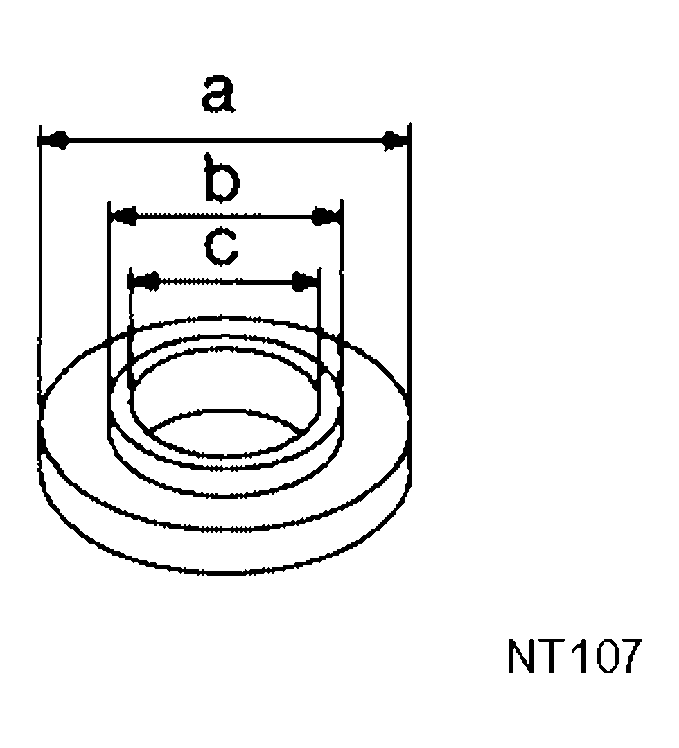

ST30720000 (J-25405 and J-34331) Bearing installer	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing idler gear bearing outer race a: 77 mm (3.03 in) dia. b: 55.5 mm (2.185 in) dia.
ST35321000 (-) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing output shaft bearing a: 49 mm (1.93 in) dia. b: 41 mm (1.61 in) dia.

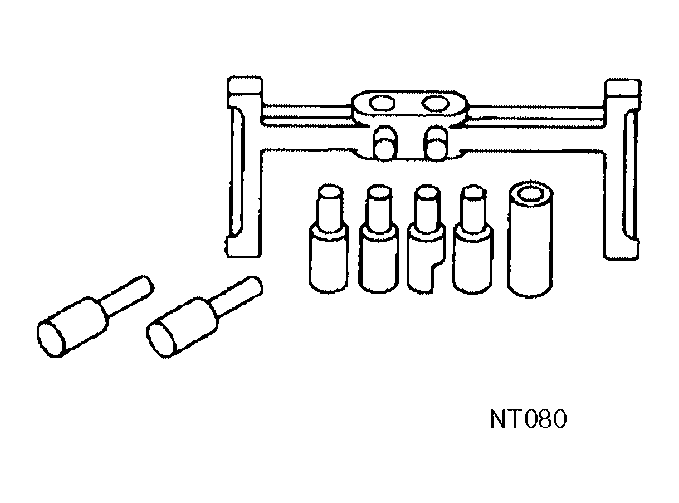

- (J-34291-A) Shim setting gauge set	Courtesy of NISSAN MOTOR CO., U.S.A.	Selecting oil pump cover bearing race and oil pump thrust washer Selecting side gear thrust washer
ST33230000 (J-25805-01) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing differential side bearing inner race (RH side) a: 51 mm (2.01 in) dia. b: 28.5 mm (1.122 in) dia.
- (J-34290) Shim selecting tool set	Courtesy of NISSAN MOTOR CO., U.S.A.	Selecting differential side bearing adjusting shim

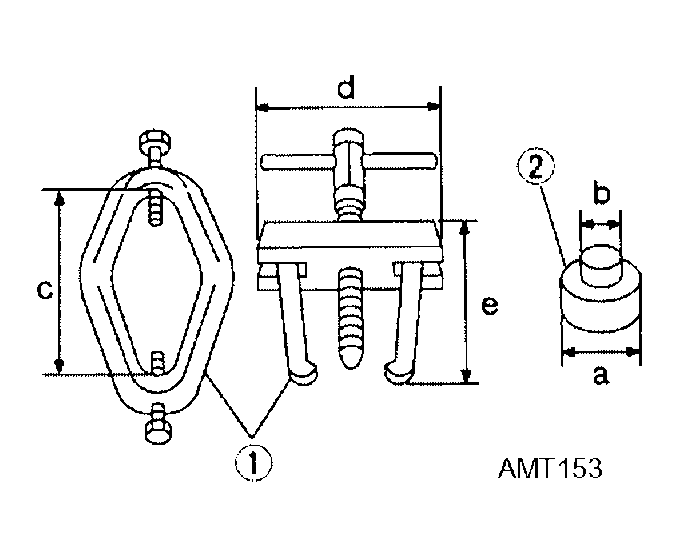

ST3306S001 (J-22888-D) Differential side bearing puller set ST33051001 (J-22888-D) Puller ST33061000 (J-8107-2) Adapter	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing differential side bearing inner race a: 38 mm (1.50 in) dia. b: 28.5 mm (1.122 in) dia. c: 130 mm (5.12 in) d: 135 mm (5.31 in) e: 100 mm (3.94 in)

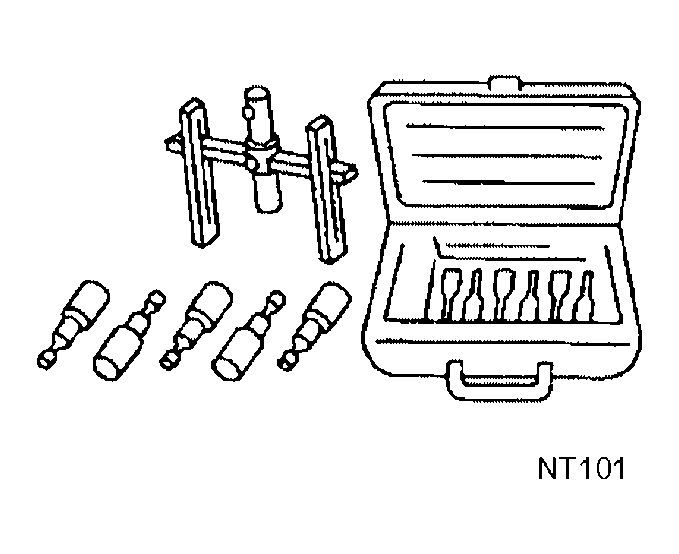

ST3127S000 (J-25765-A) Preload gauge GG91030000 (J-25765-A) Torque wrench HT62940000 (-) Socket adapter HT62900000 (-) Socket adapter	Courtesy of NISSAN MOTOR CO., U.S.A.	Checking differential side bearing preload
ST35271000 (J-26091) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing idler gear a: 72 mm (2.83 in) dia. b: 63 mm (2.48 in) dia.
- (J-39713) Preload adapter	Courtesy of NISSAN MOTOR CO., U.S.A.	Selecting differential side bearing adjusting shim Checking differential side bearing preload
