Preliminary Check

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

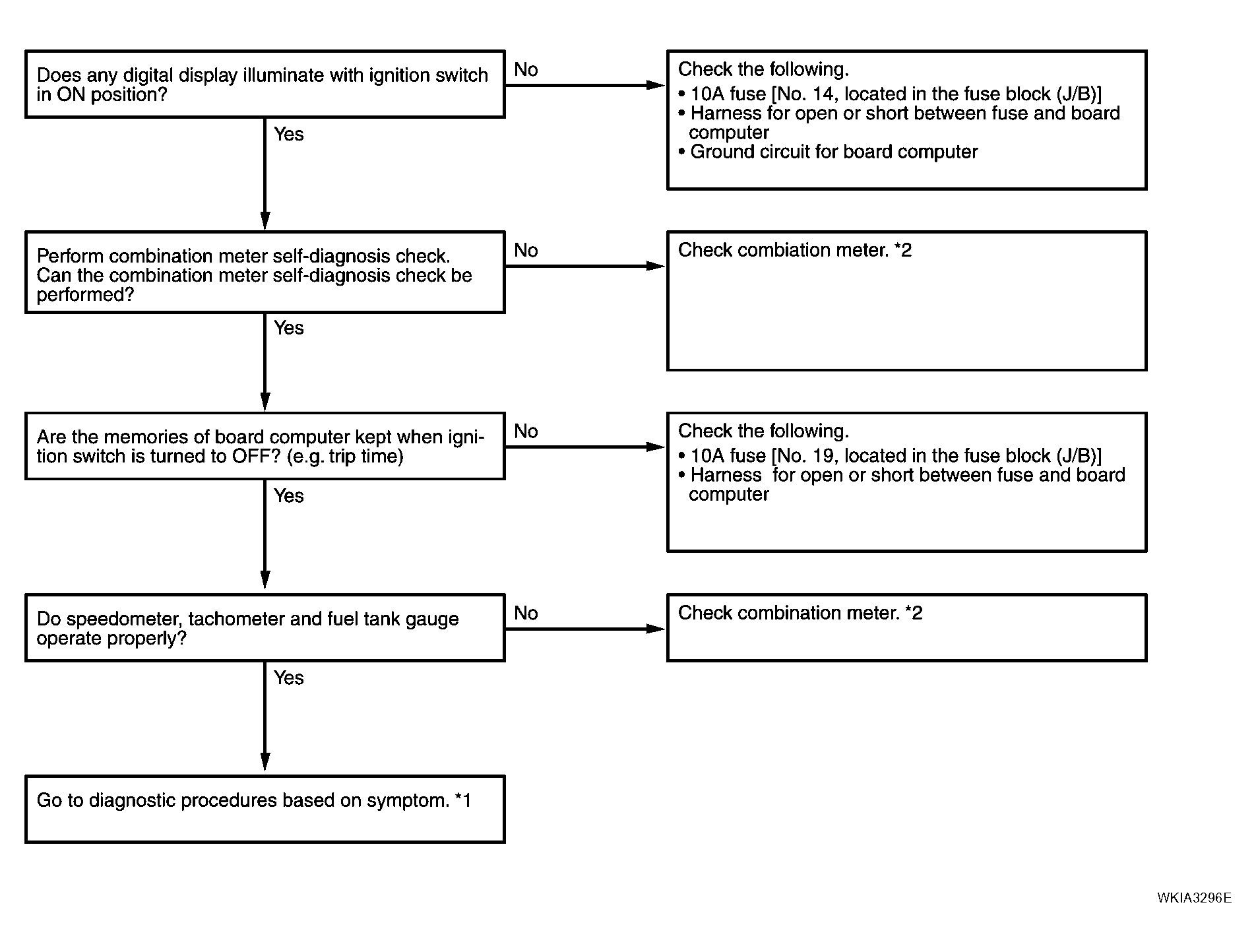

Fig 1: Preliminary Check - Flow Chart
G04206332Courtesy of NISSAN MOTOR CO., U.S.A.
PRELIMINARY CHECK - FLOW CHART REFERENCES

*1. DIAGNOSIS PROCEDURE
*2. DIAGNOSIS FLOW
