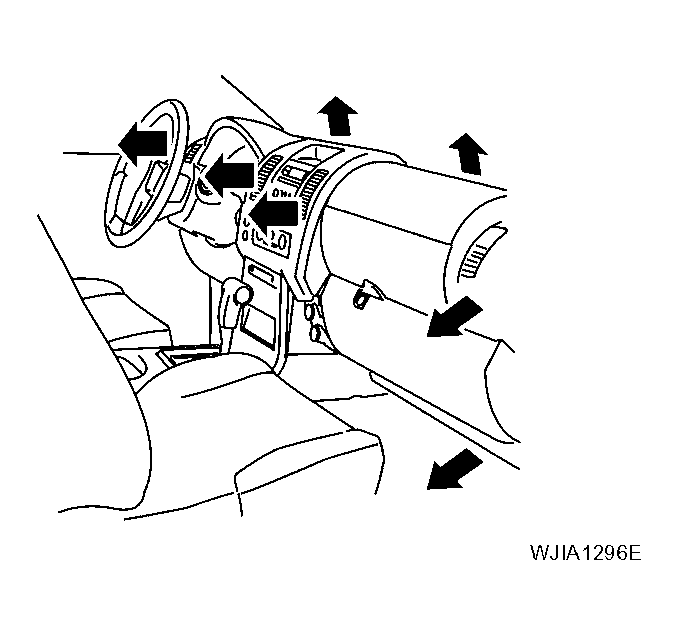

Discharge Air Flow
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A. MODE DOOR POSITION REFERENCE
| Mode door position |
Air outlet/distribution |
| Vent |
Foot |
Defroster |
| |
95% |
5% |
- |
| |
60% |
40% |
- |
| |
20% |
55% |
25% |
| |
15% |
50% |
35% |
| |
7% |
15% |
78% |
| Airflow always present at driver and passenger side demisters |
