Check A/C Switch

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press A/C switch with the blower control dial set to 1.
  2. A/C switch indicator will turn ON.
    • Confirm that the A/C compressor clutch engages (sound or visual inspection).

If NG, go to trouble diagnosis procedure for "MAGNET CLUTCH CIRCUIT ".

If OK, continue with next check.

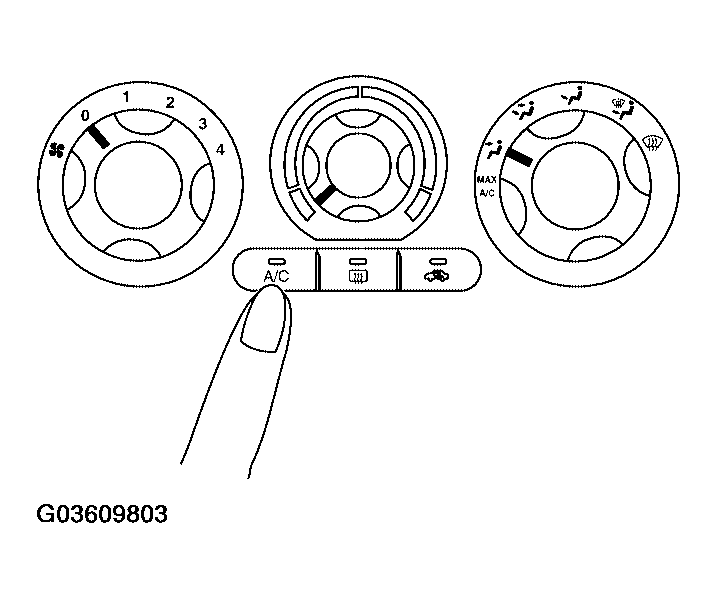

Fig 1: Pressing A/C Switch
G03609803Courtesy of NISSAN MOTOR CO., U.S.A.
