Warning Lamp and Indicator Timing

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

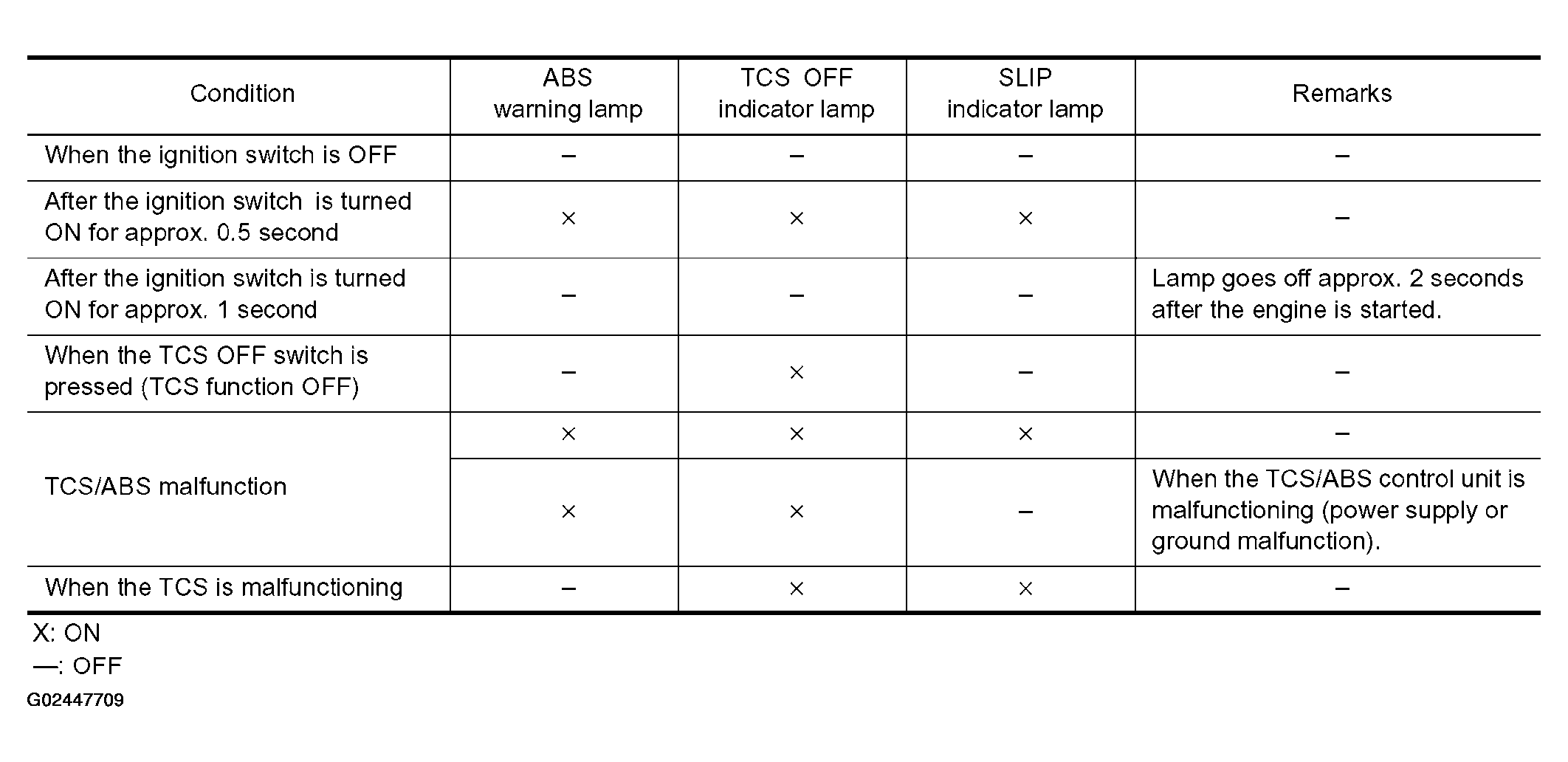

Fig 1: Warning Lamp & Indicator Timing Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
