Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column lower cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove column upper cover and combination meter assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  3. While pressing pawls in direction as shown in the figure, pull lighting and turn signal switch toward driver door and disconnect from the base.

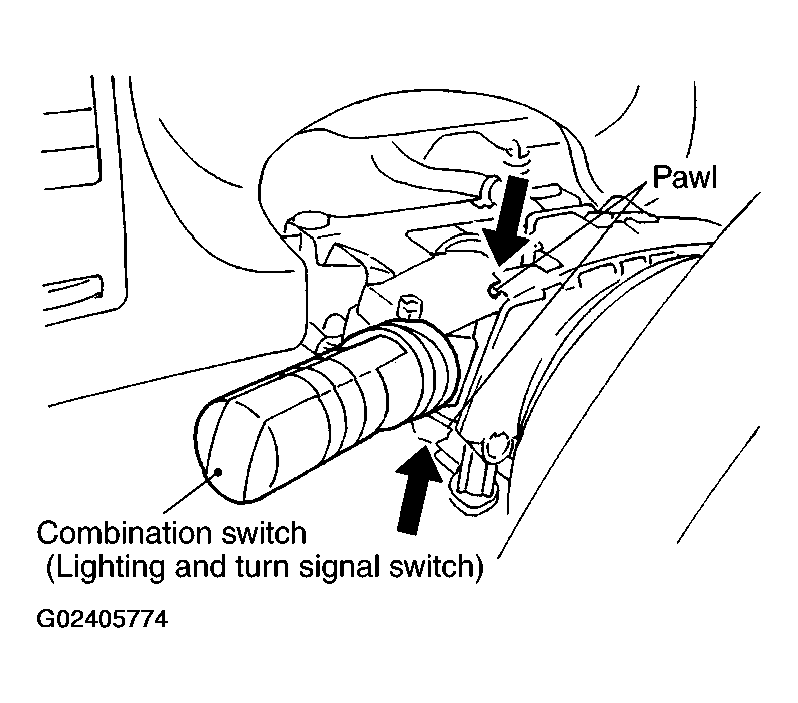

    Fig 1: Locating Pawl
    G02405774Courtesy of NISSAN MOTOR CO., U.S.A.
