Wiring Diagram-COMBSW-

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

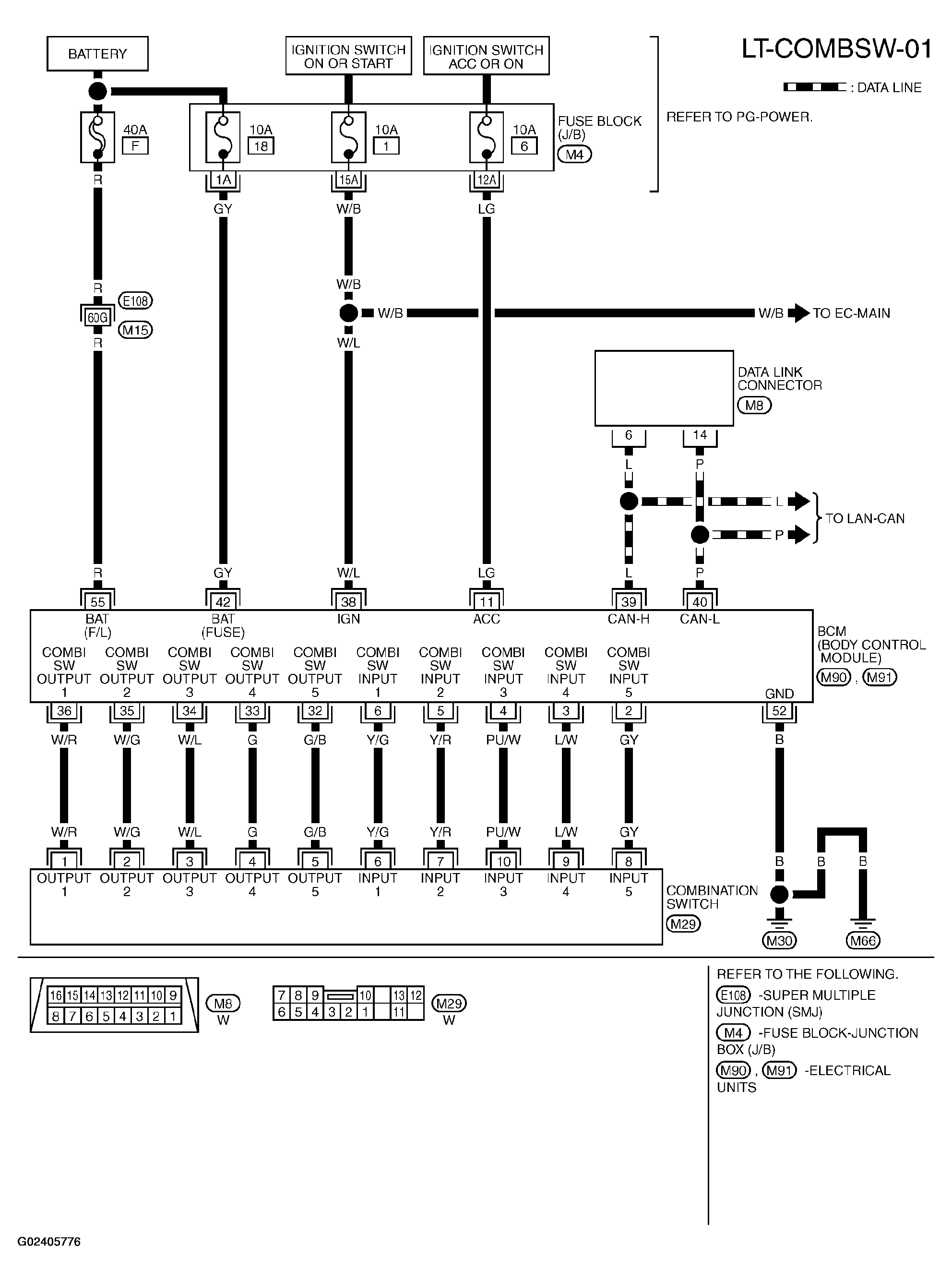

Fig 1: Wiring Diagram - Combination Switch - COMBSW - LT-COMBSW-01
G02405776Courtesy of NISSAN MOTOR CO., U.S.A.
