Control Valve And TCM Assembly Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cable from the negative terminal.
Disconnect heated oxygen sensor 2 harness connector.
Drain ATF through drain plug.
Disconnect A/T assembly harness connector.
Remove snap ring from A/T assembly harness connector.

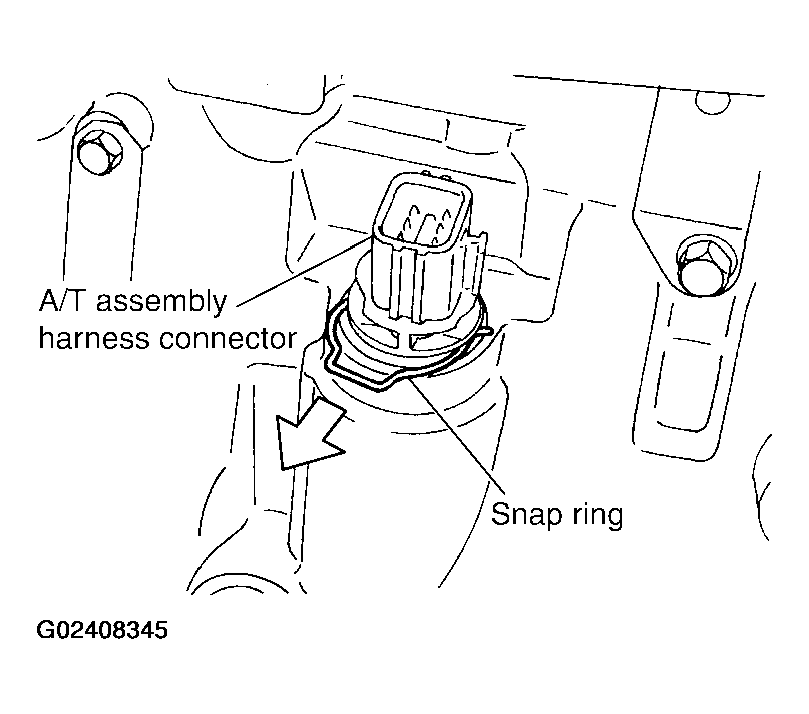

Fig 1: Removing Snap Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Push A/T assembly harness connector.
CAUTION: Be careful not to damage connector.

Fig 2: Pushing A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan and oil pan gasket.

Fig 3: Removing Oil Pan & Oil Pan Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
- If frictional material is detected, perform A/T fluid cooler cleaning. Refer to "A/T FLUID COOLER CLEANING ".
Fig 4: Checking Foreign Materials In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove magnets from oil pan.

Fig 5: Removing Magnets From Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect A/T fluid temperature sensor 2 connector.
CAUTION: Be careful not to damage connector.

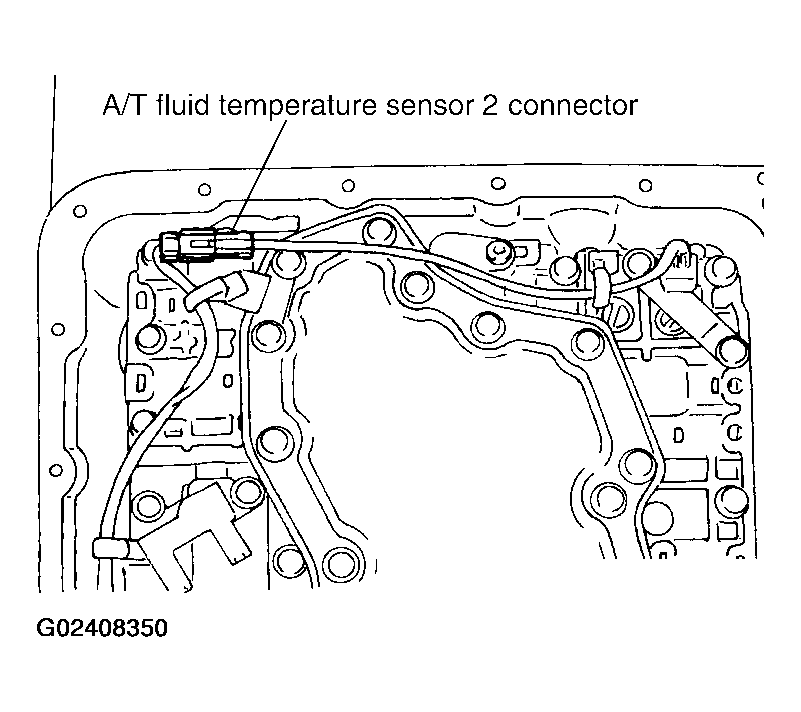

Fig 6: Disconnecting A/T Fluid Temperature Sensor 2 Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Straighten terminal clips to free terminal cord assembly and A/T fluid temperature sensor 2 harness.

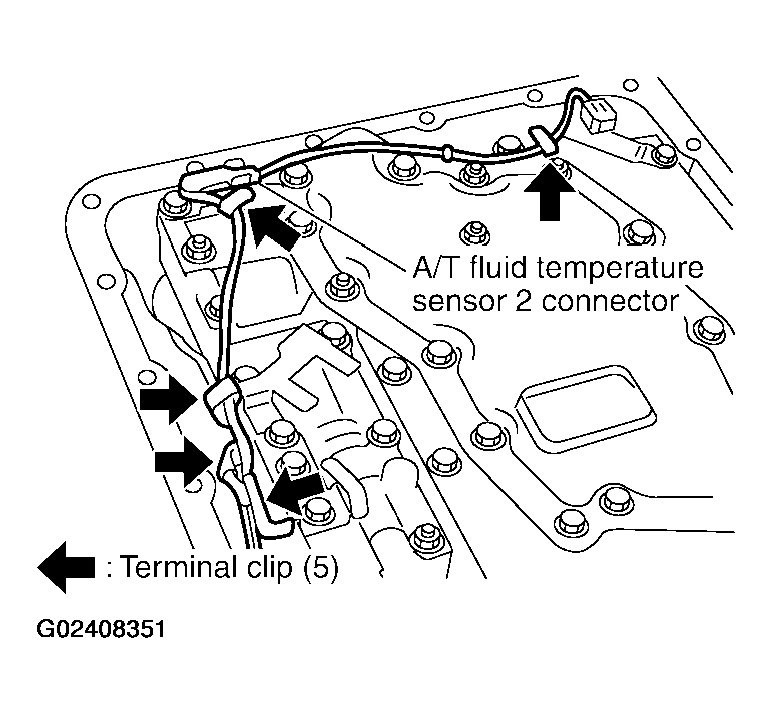

Fig 7: Removing Terminal Cord Assembly & A/T Fluid Temperature Sensor 2 Harness
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect revolution sensor connector.
CAUTION: Be careful not to damage connector.

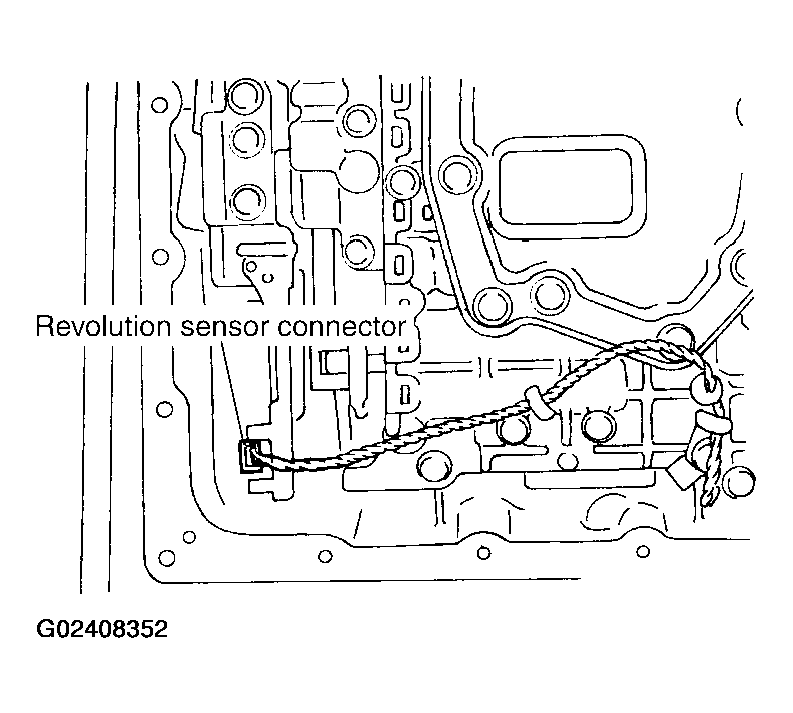

Fig 8: Disconnecting Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Straighten terminal clips to free revolution sensor harness.

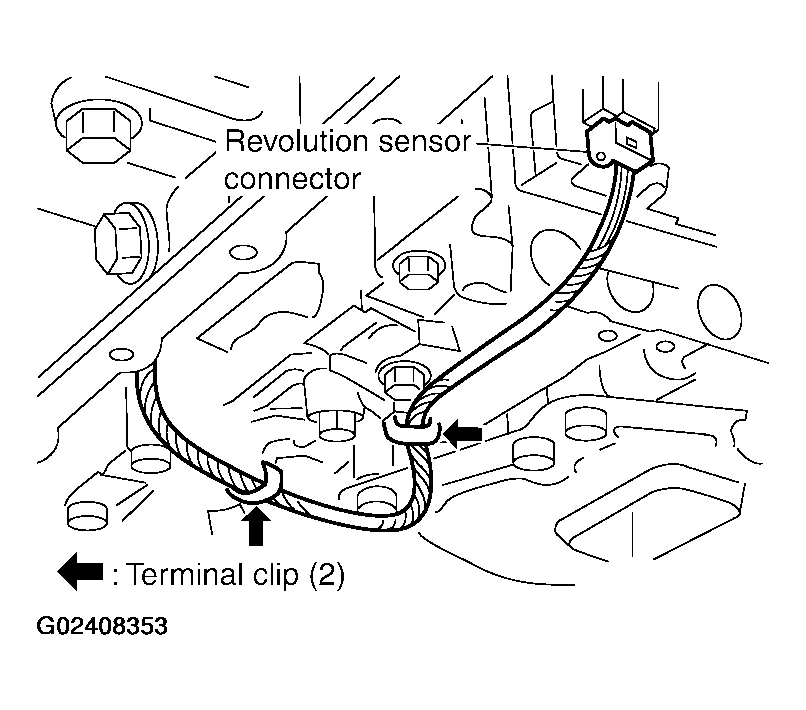

Fig 9: Disconnecting Revolution Sensor Harness
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove bolts A, B and C from control valve with TCM.

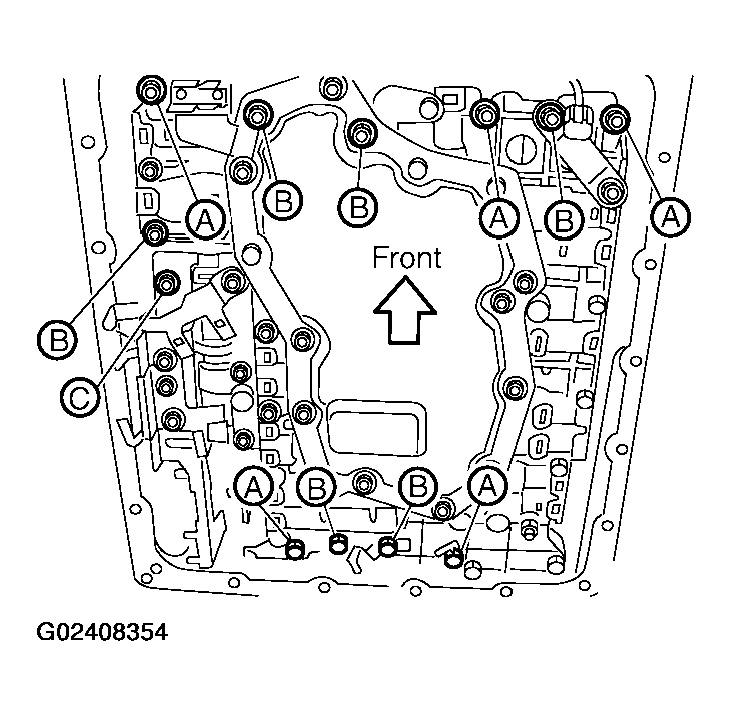

Fig 10: Removing Bolts From Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

BOLT SYMBOL AND LENGTH SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

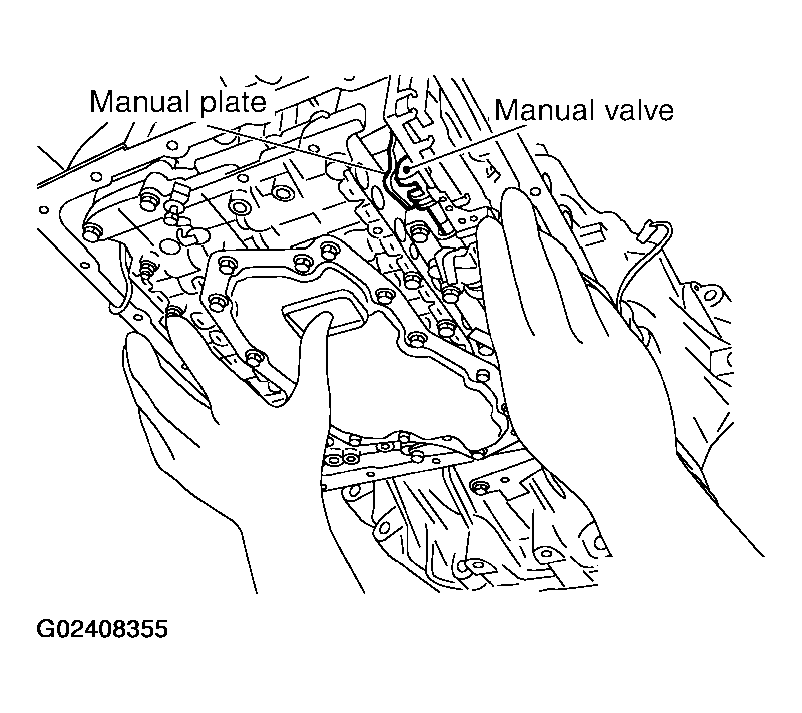

Remove control valve with TCM from transmission case.
CAUTION: When removing, be careful with the manual valve notch and manual plate height. Remove it vertically.

Fig 11: Removing Control Valve With TCM From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove A/T fluid temperature sensor 2 with bracket from control valve with TCM.

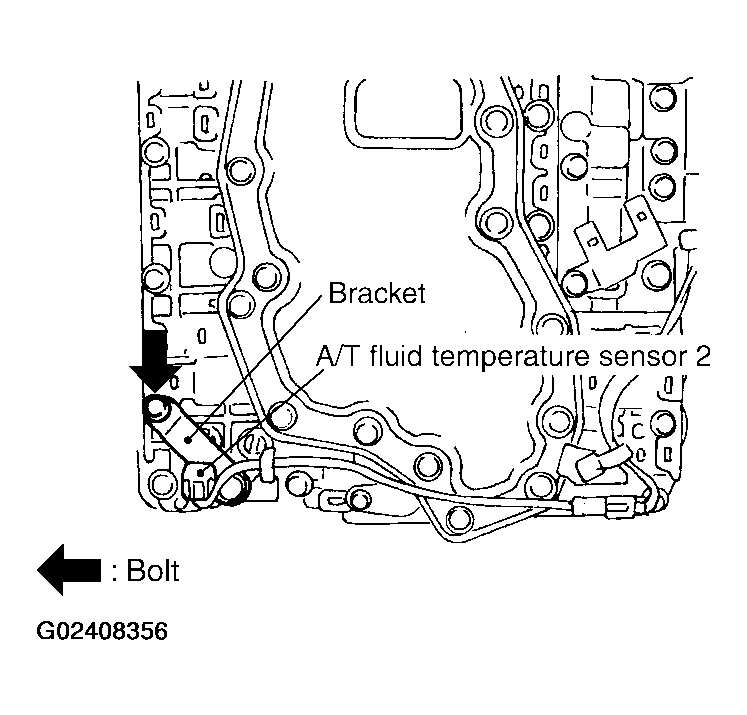

Fig 12: Removing A/T Fluid Temperature Sensor 2 With Bracket From Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bracket from A/T fluid temperature sensor 2.

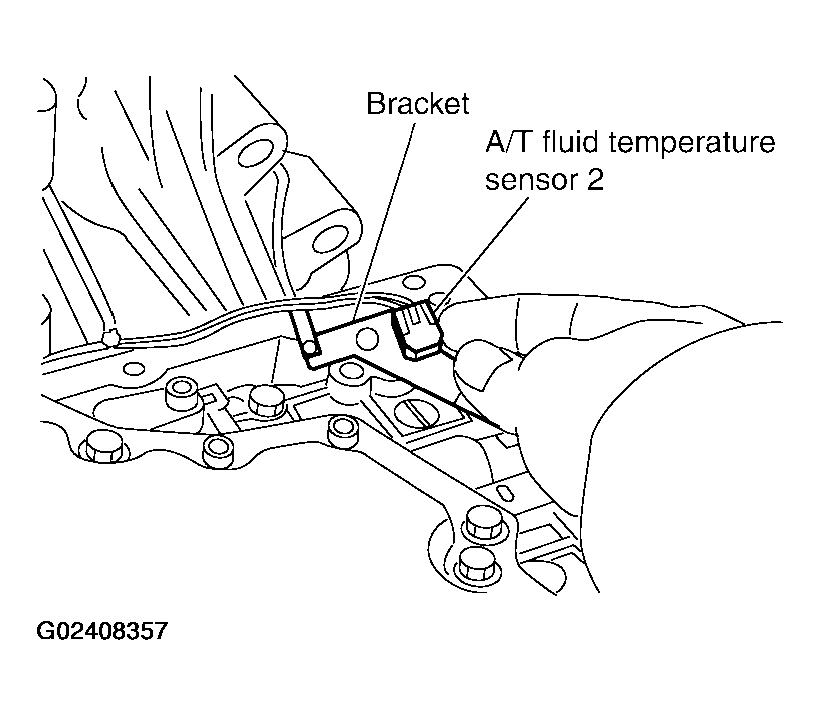

Fig 13: Removing Bracket From A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from A/T assembly harness connector.

Fig 14: Removing O-Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connectors.
CAUTION: Be careful not to damage connectors.

Fig 15: Disconnecting TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

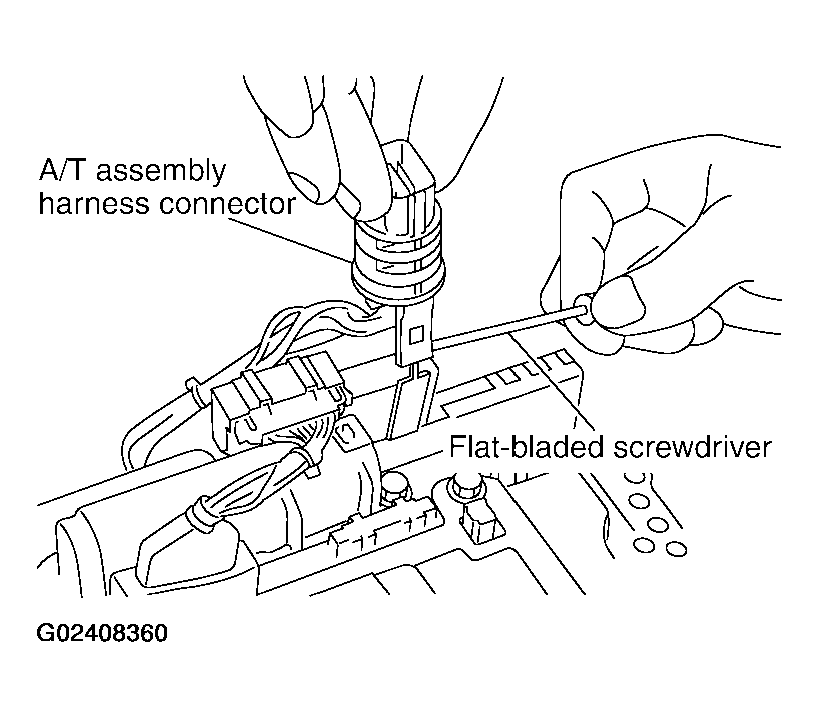

Remove A/T assembly harness connector from control valve with TCM using a flat-bladed screwdriver.

Fig 16: Removing A/T Assembly Harness Connector From Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connector and park/neutral position switch connector.
CAUTION: Be careful not to damage connectors.

Fig 17: Disconnecting TCM Connector & Park/Neutral Position Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
