Aiming Adjustment: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Complete all necessary work for laser beam adjustment until the adjustment completes as shown in the procedure. If the procedure does not complete, the ICC system is inoperable.
  • If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER on the data link connector.

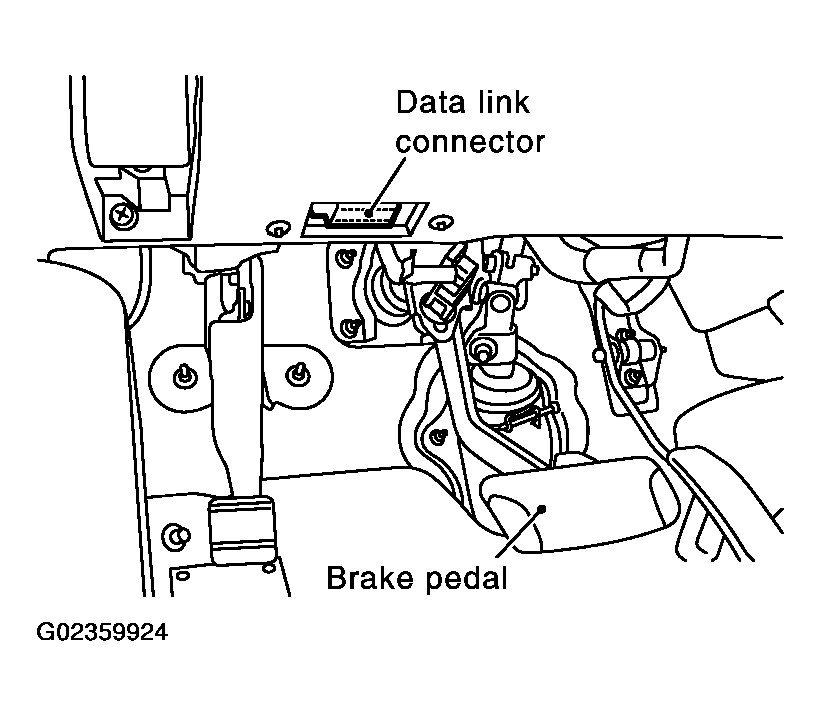

    Fig 1: Identifying Data Link Connector Location
    G02359924Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start the engine, wait for at least 10 seconds, and touch "START (NISSAN BASED VHCL)".
    Fig 2: Nissan Based VHCL Screen
    G02359925Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "ICC".

    If "ICC" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

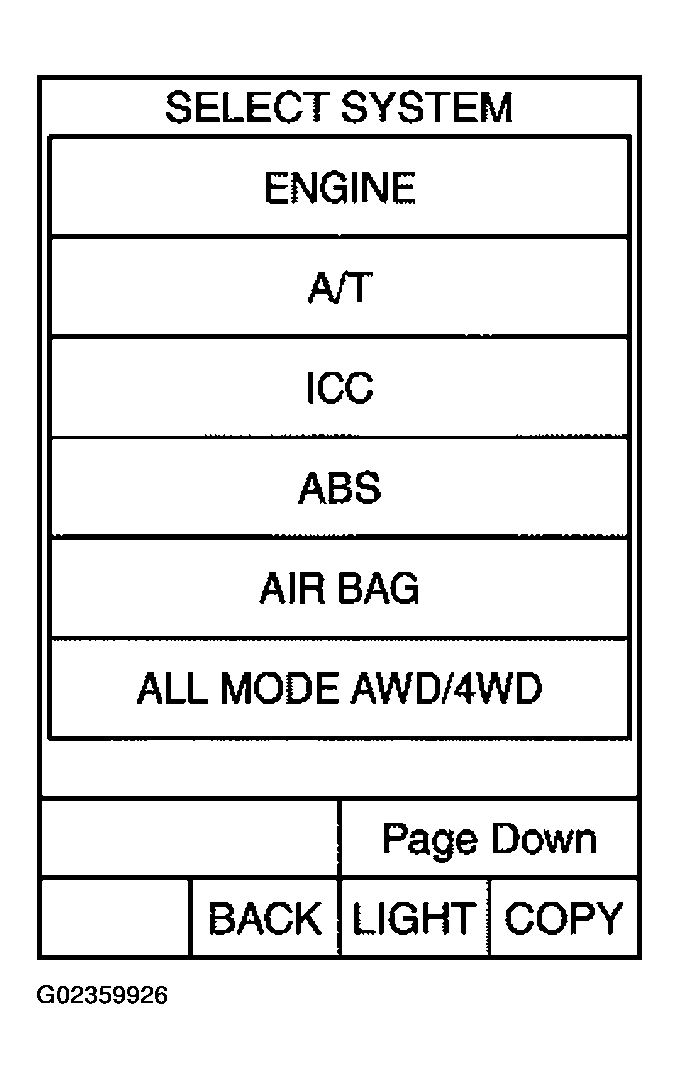

    Fig 3: ICC Screen
    G02359926Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "WORK SUPPORT".

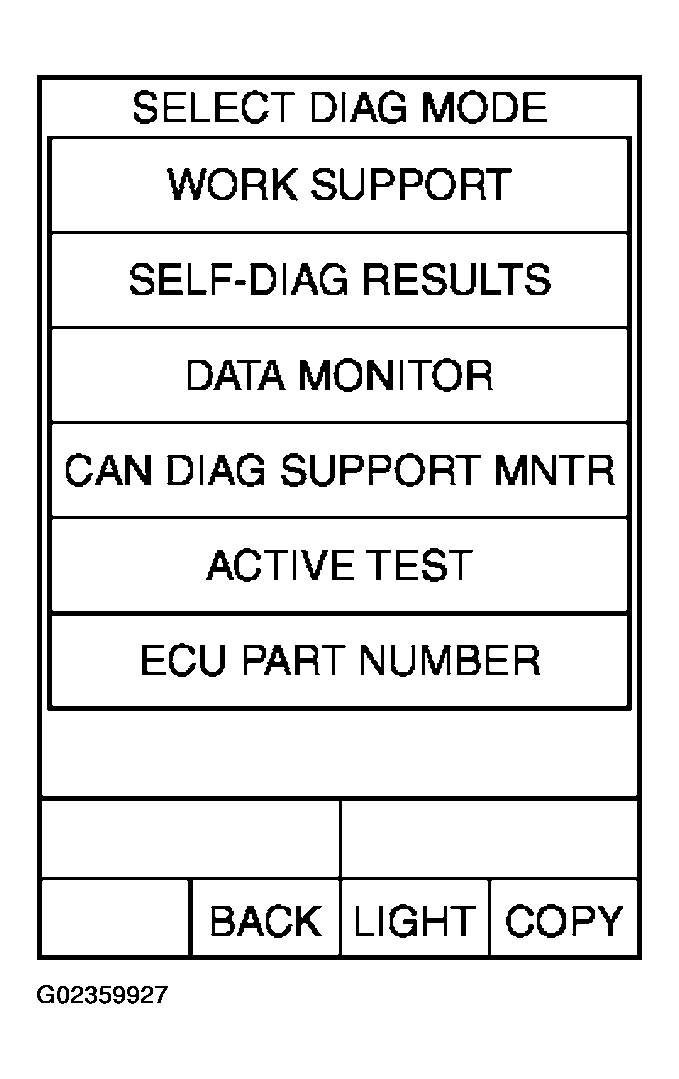

    Fig 4: Work Support Screen
    G02359927Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "LASER BEAM ADJUST".
    Fig 5: Laser Beam Adjust Screen
    G02359928Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "START".
    CAUTION: If the adjustment screen does not appear on the CONSULT-II screen in 10 seconds. After touching "LASER BEAM ADJUST" screen, the following causes may be considered:
    • Target is not set accurately.
    • There is not enough space beside the target.
    • Deformation of vehicle or the surrounding equipment unit, bracket, or the surrounding equipment is causing inappropriate installation of sensor and aiming may be set out of the adjustable range.

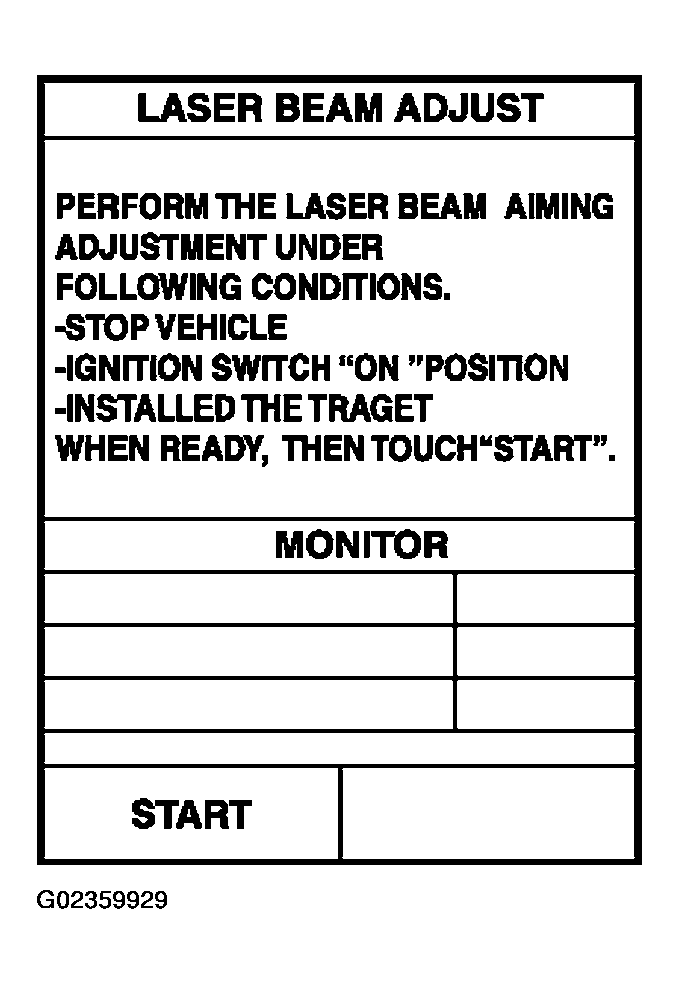

      Fig 6: Adjustment Of Vertical Laser Beam Aiming
      G02359929Courtesy of NISSAN MOTOR CO., U.S.A.
    • The area is not suitable for the adjustment work.
    • ICC sensor is not clean.
  8. After the CONSULT-II displays "ADJUST THE VERTICAL OF LASER BEAM AIMING" turn the up-down direction adjusting screw until "U/D CORRECT" value is set in the range of +/-4.
    CAUTION: Turn the screw slowly. The value change on display is slower than actual movement of the ICC sensor. Wait for 2 seconds every time the screw is turned half a rotation.
    NOTE: Turning the screw to the right lowers the aiming and to the left lifts the aiming.
    Fig 7: Turning Screw To Right Lowers Aiming
    G02359930Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 8: Laser Beam Adjust Screen (1 Of 3)
    G02359931Courtesy of NISSAN MOTOR CO., U.S.A.
  9. When "U/D CORRECT" value indicates +/-4, confirm that the margin of value remains within +/-4 at least for 2 seconds with no equipment or hand touching the ICC sensor. When "COMPLETED THE VERTICAL AIMING OF LASER BEAM" appears on screen, touch "END".
    CAUTION: Be sure that the margin of "U/D CORRECT" is within +/-4 with ICC sensor unit is untouched.

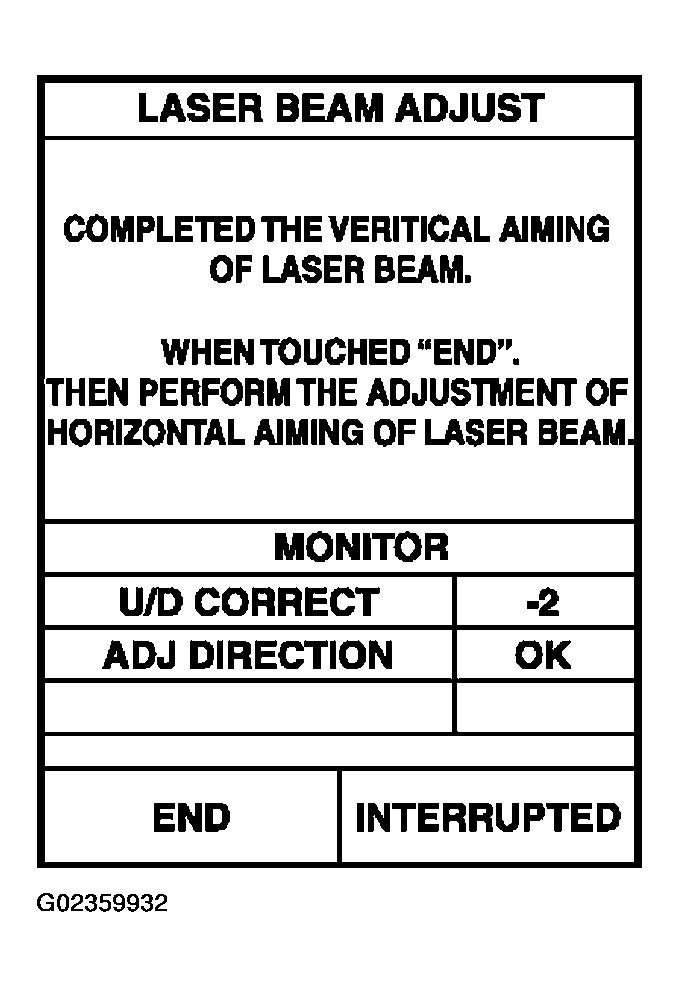

    Fig 9: Laser Beam Adjust Screen (2 Of 3)
    G02359932Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Confirm that "ADJUSTING AUTOMATIC HORIZONTAL LASER BEAM AIMING" is on screen and wait for a while (maximum: 10 seconds).
    Fig 10: Laser Beam Adjust Screen (3 Of 3)
    G02359933Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Confirm that "NORMALLY COMPLETED" is displayed on CONSULT-II and close the aiming adjustment procedure by touching "END".
    CAUTION: Complete all the procedures once "LASER BEAM ADJUST" mode is entered in CONSULT-II. When the procedure is discontinued, the ICC system is inoperable.
    Fig 11: Laser Beam Adjust Screen
    G02359934Courtesy of NISSAN MOTOR CO., U.S.A.
