Wiring Diagram -VEHSEC-

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

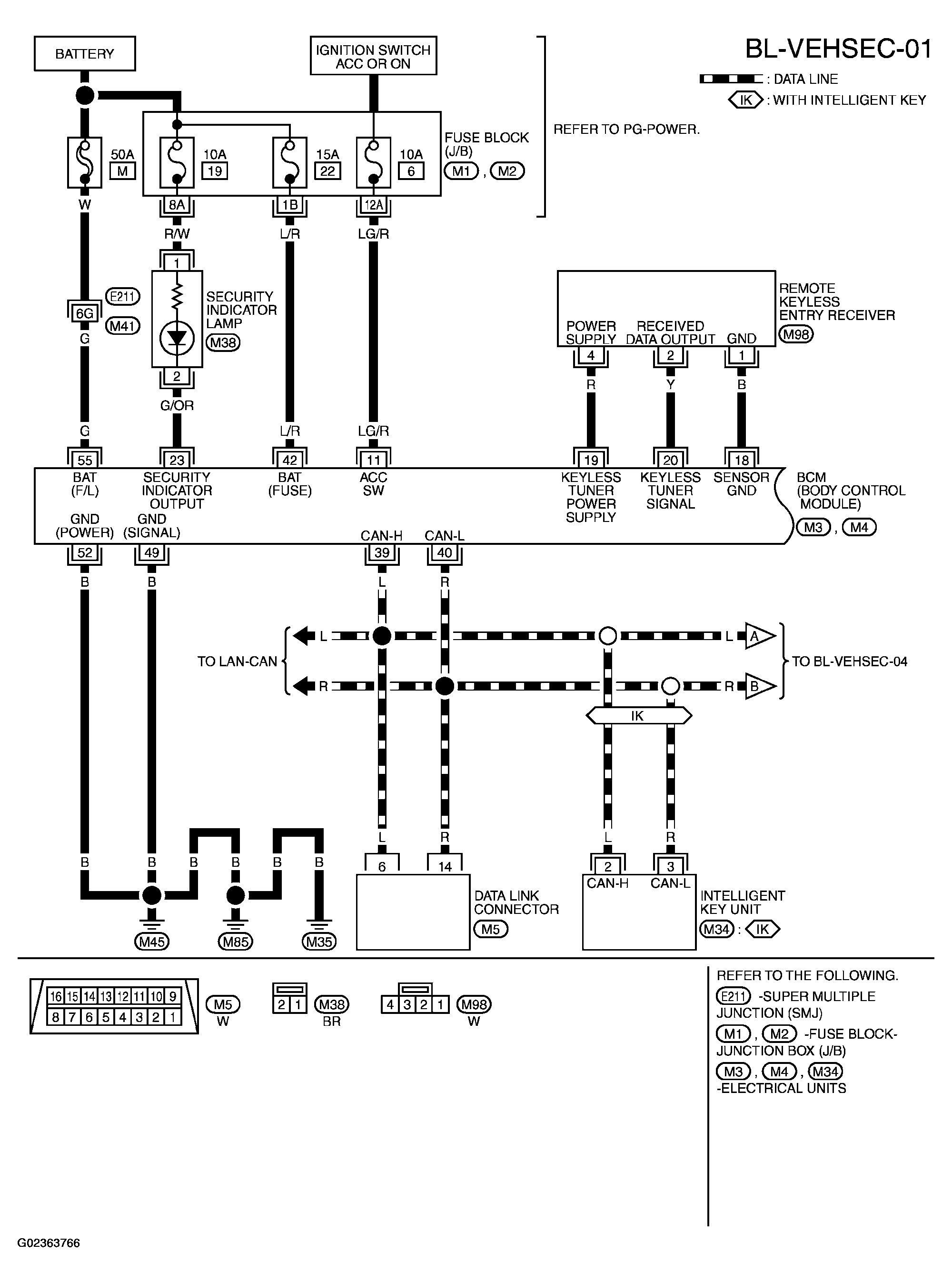

Fig 1: Wiring Diagram - BL-VEHSEC-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Diagram - BL-VEHSEC-02

Courtesy of NISSAN MOTOR CO., U.S.A.

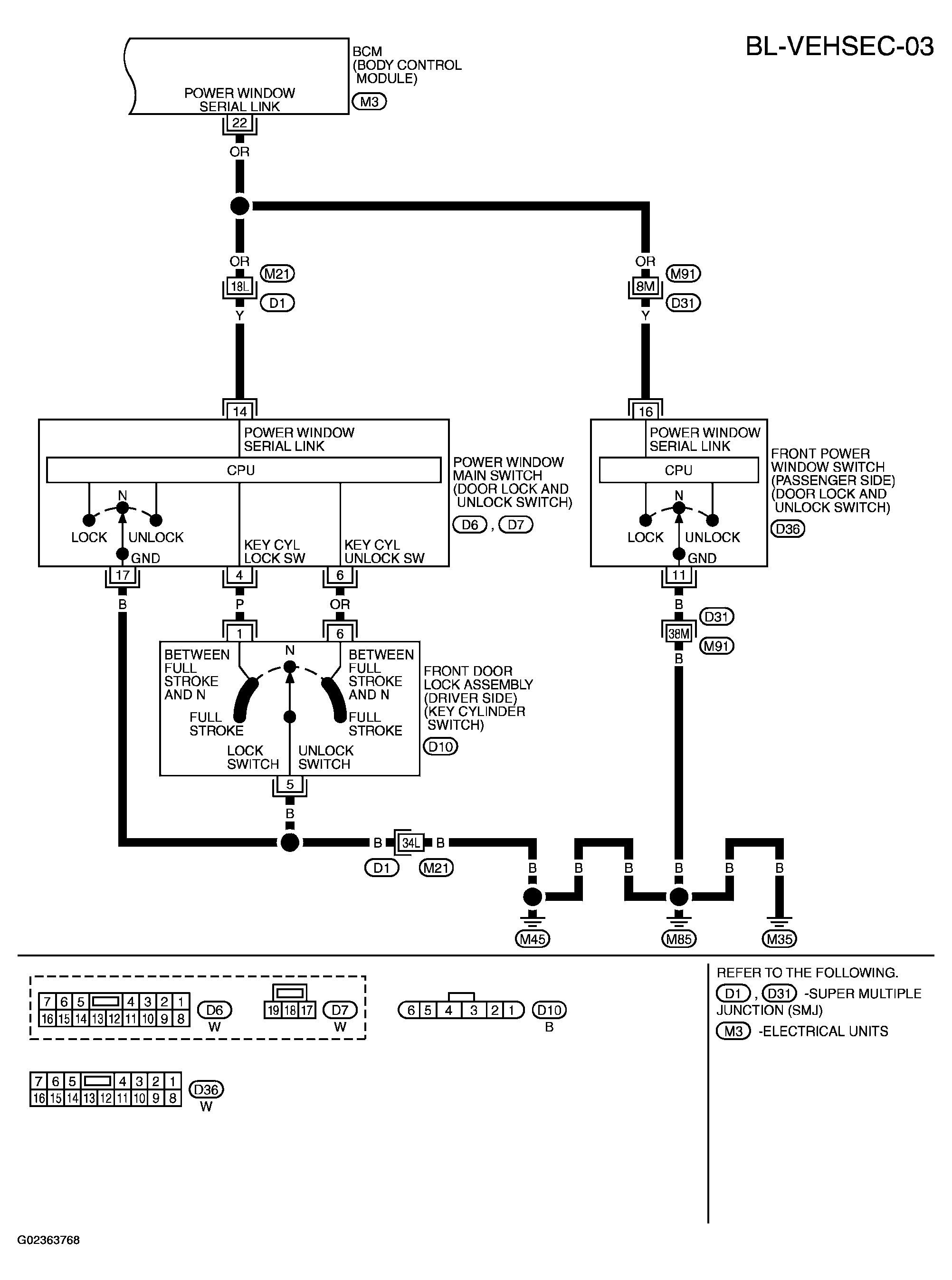

Fig 3: Wiring Diagram - BL-VEHSEC-03

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Wiring Diagram - BL-VEHSEC-04

Courtesy of NISSAN MOTOR CO., U.S.A.

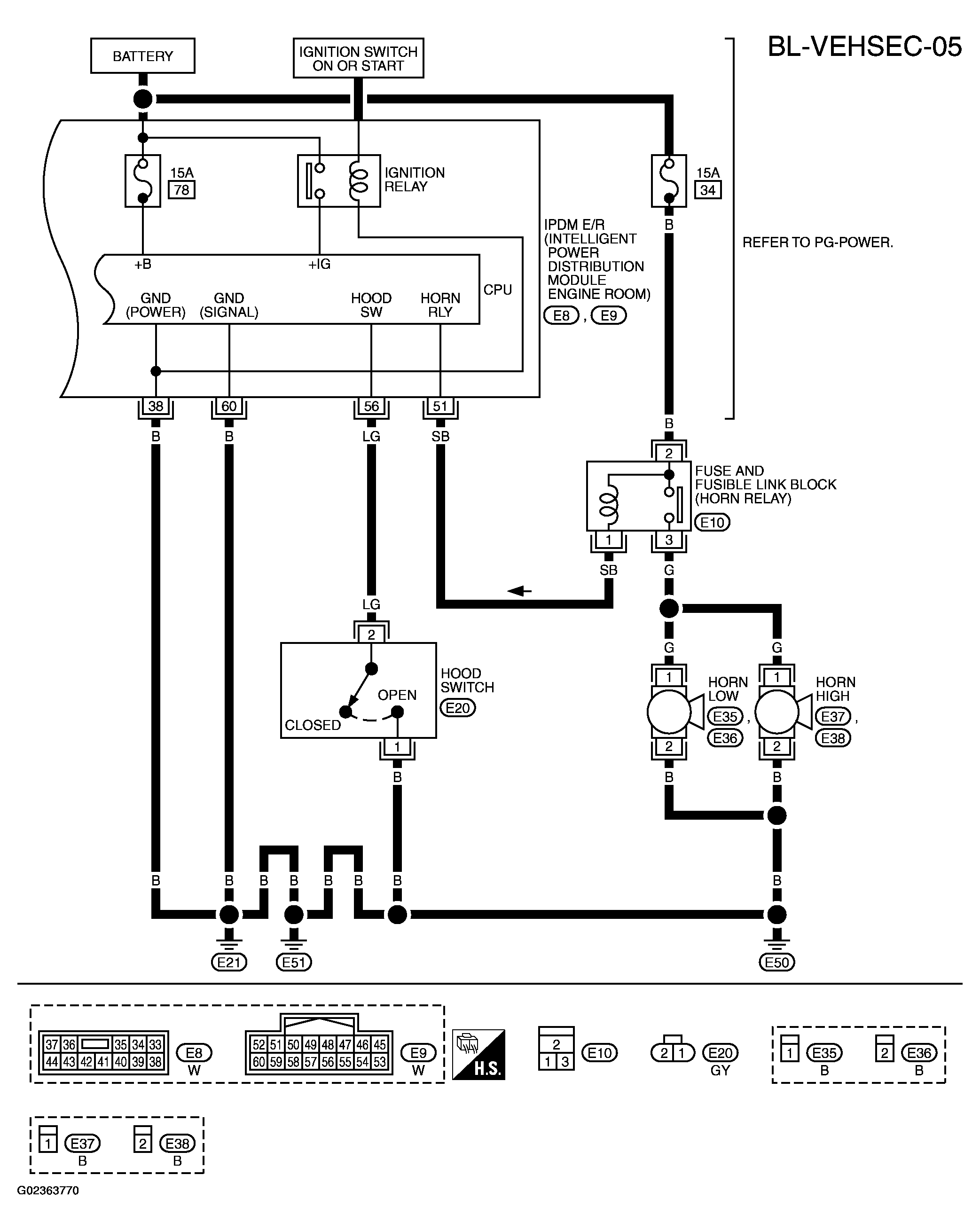

Fig 5: Wiring Diagram - BL-VEHSEC-05

Courtesy of NISSAN MOTOR CO., U.S.A.
