Abs Actuator & Electric Unit

The ABS actuator & electric unit controls the hydraulic circuit and increases, holds or decreases hydraulic pressure to all or individual wheels. See Figure and Fig 1 .

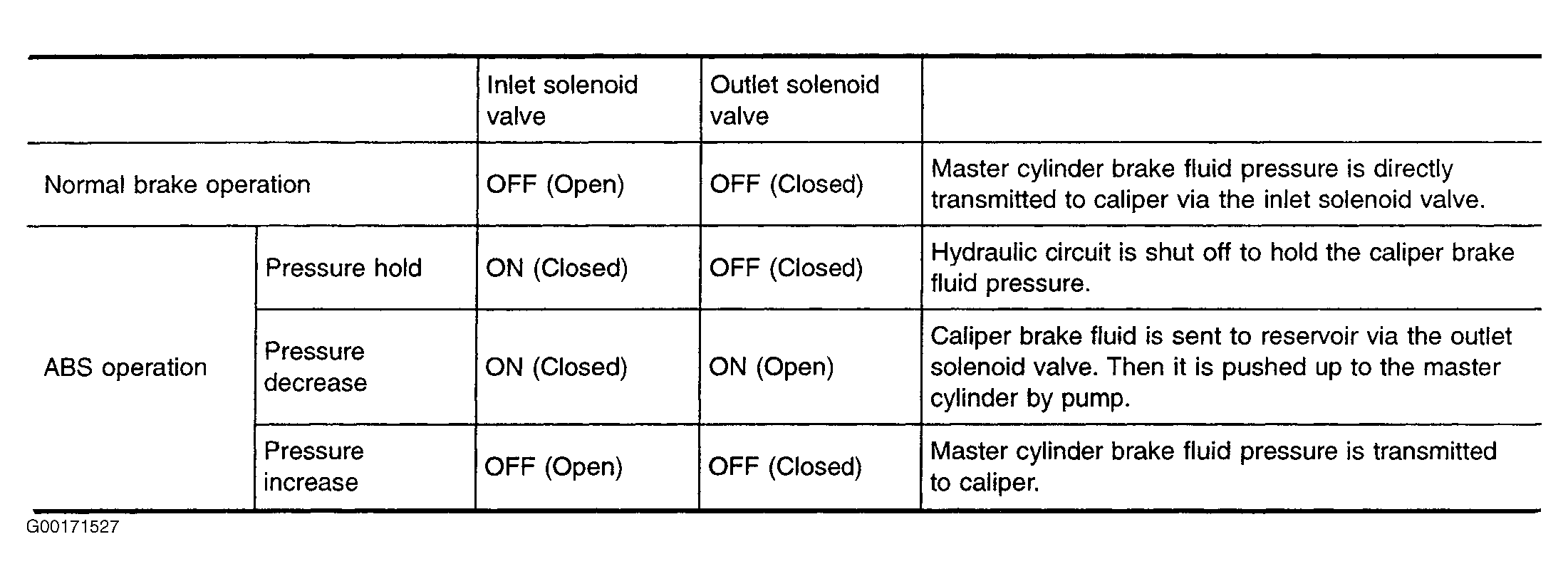

Fig 1: ABS Actuator Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
