Component Parts and Harness Connector Location

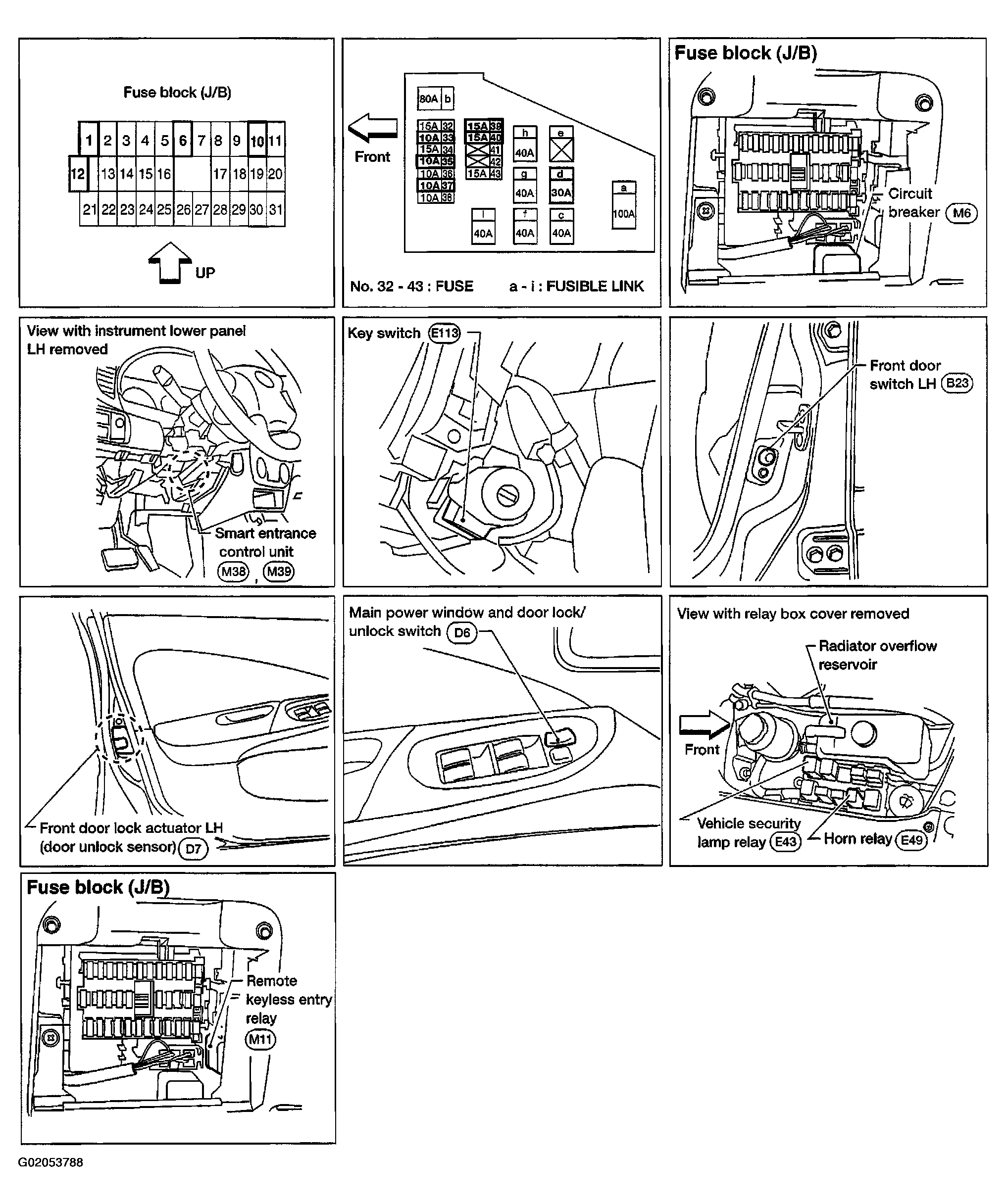

Fig 1: Locating Remote Keyless Entry System Components
G02053788Courtesy of NISSAN MOTOR CO., U.S.A.
