Wiring Diagram - ASCD

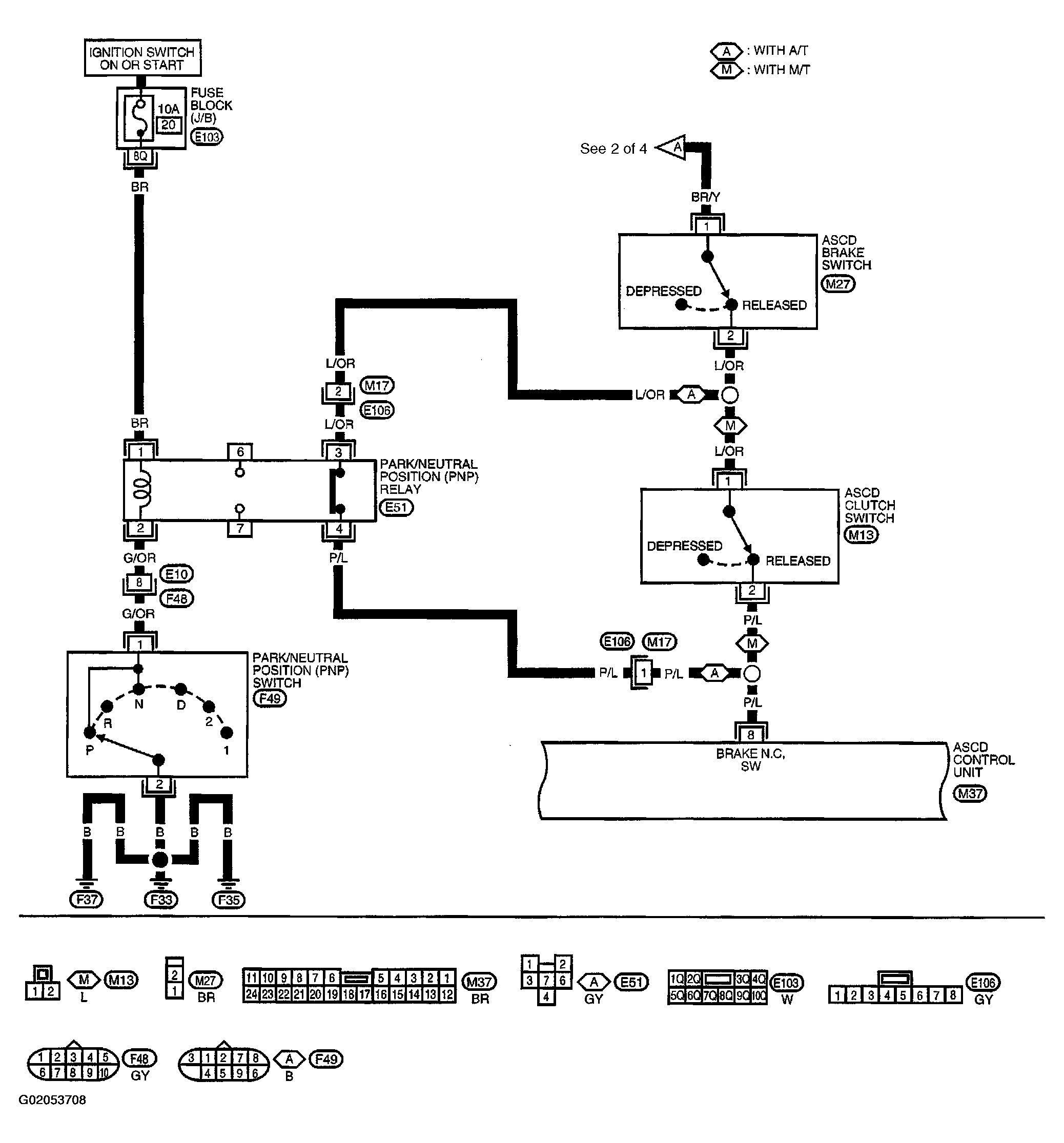

Fig 1: ASCD Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD control unit terminal and reference value measured between each terminal and ground.

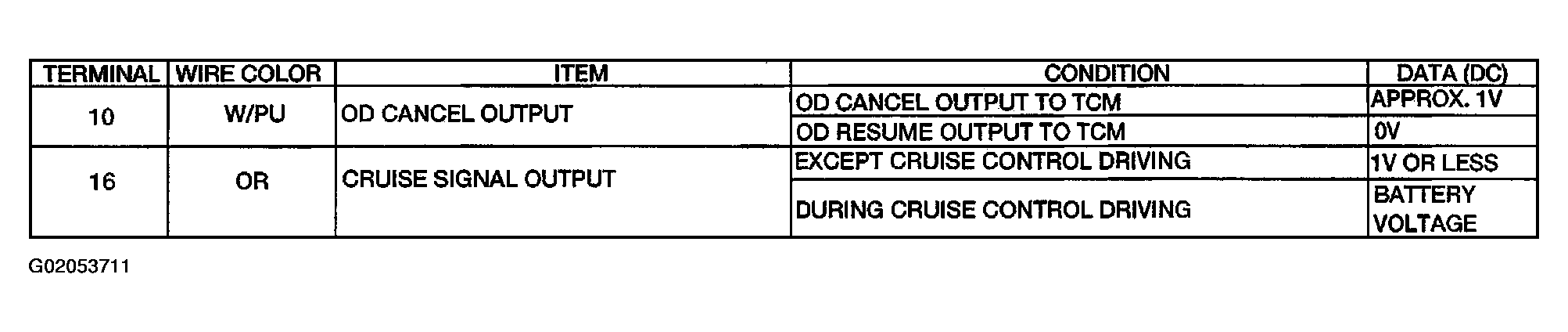

Fig 2: Reference Values Between Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: ASCD Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD control unit terminals and reference value measured between each terminal and ground.

REFERENCE VALUES BETWEEN TERMINALS

Terminal	Wire Color	Item	Condition	Data (DC)
1	PU/W	Motor Lower Side Output 1	Ignition Switch On, Accel/Res Switch In On Position, Vehicle Speed Greater Than 40 KPH (25 MPH)	0-1.2V
7	R	Clutch Upper Side Output	Set Switch In On Position, Vehicle Speed Greater Than 40 KPH (25MPH)	Battery Voltage
11	G	Command Switch (A/D) Input	Cruise On-Off Switch In On Position	5.5V
12	BR/Y	Motor Upper Side Output	Ignition Switch On, ACCEL/RES Switch In On Position, Vehicle Speed Greater Than 40 KPH (25MPH)	Battery Voltage
13	B/W	Motor Lower Side Output 2	Ignition Switch On, ACCEL/RES Switch In On Position, Vehicle Speed Greater Than 40 KPH (25MPH)	0-1.2V
14	BR/W	Motor Lower Side Output 3	Ignition Switch On, ACCEL/RES Switch In On Position, Vehicle Speed Greater Than 40 KPH (25MPH)	0-1.2V
24	G/OR	Command Switch Ground Input	-	-

CAUTION: Fix rear tires with tire stopper. Support front garage jack points and put safety stands to front safety stand points.

Fig 4: ASCD Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD control unit terminals and reference value measured between each terminal and ground.

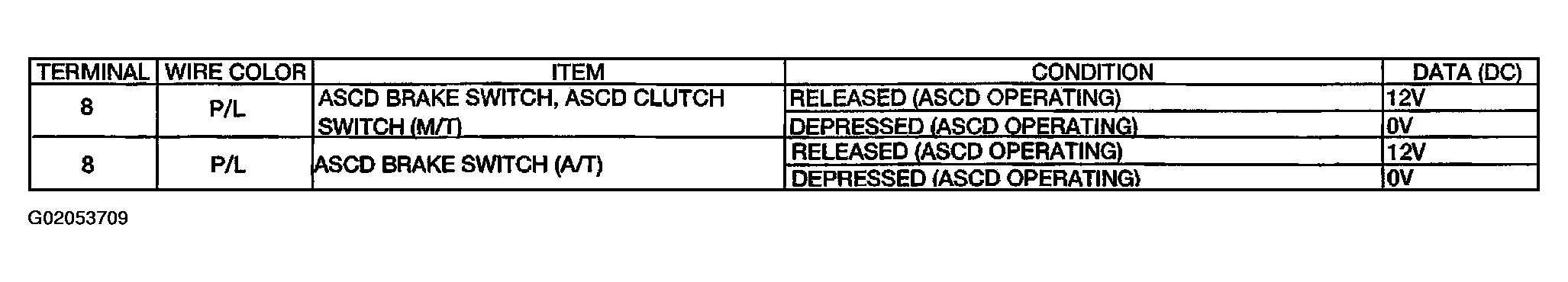

Fig 5: Reference Values Between Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

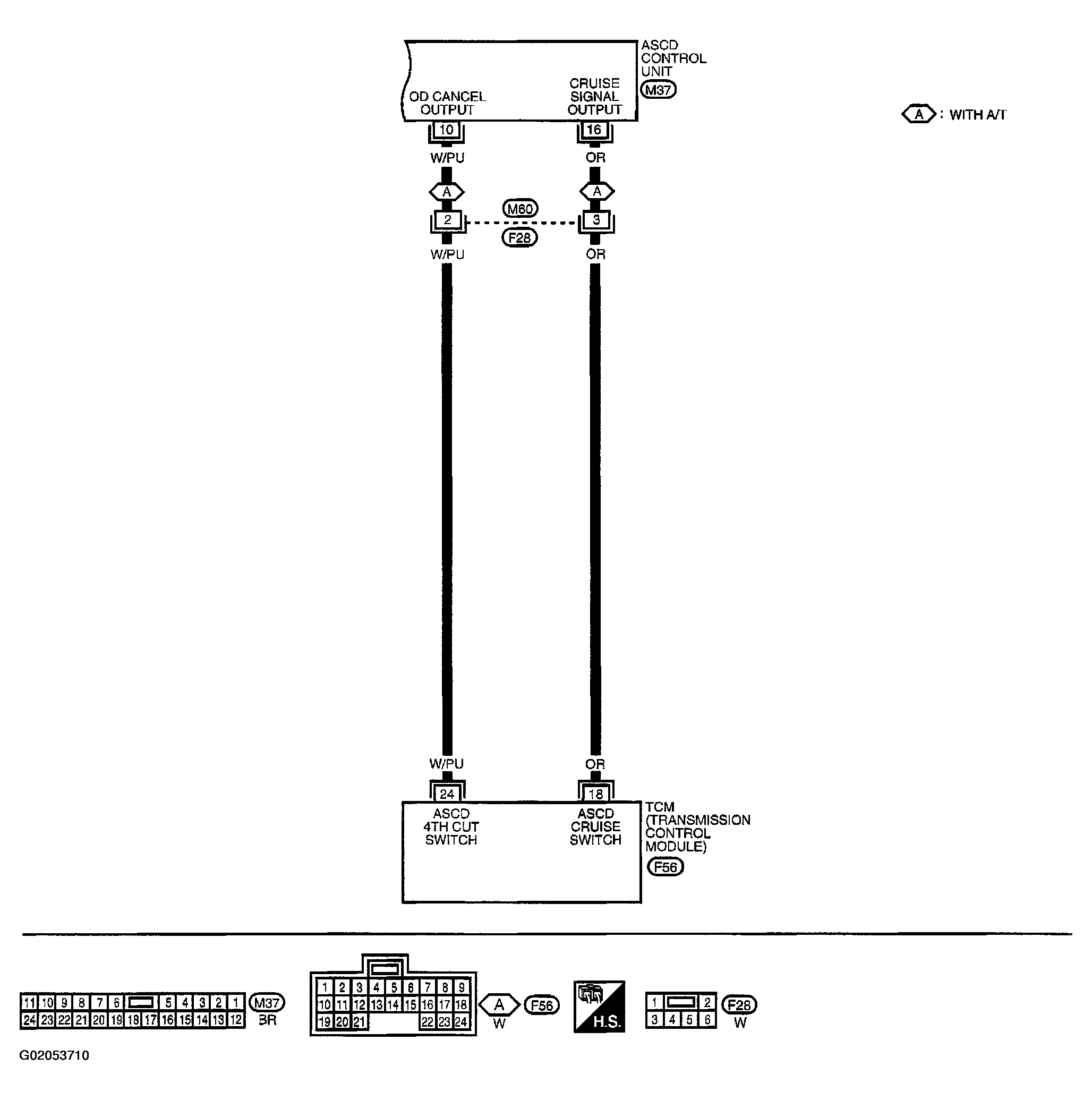

Fig 6: ASCD Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD control unit terminals and reference value measured between each terminal and ground.

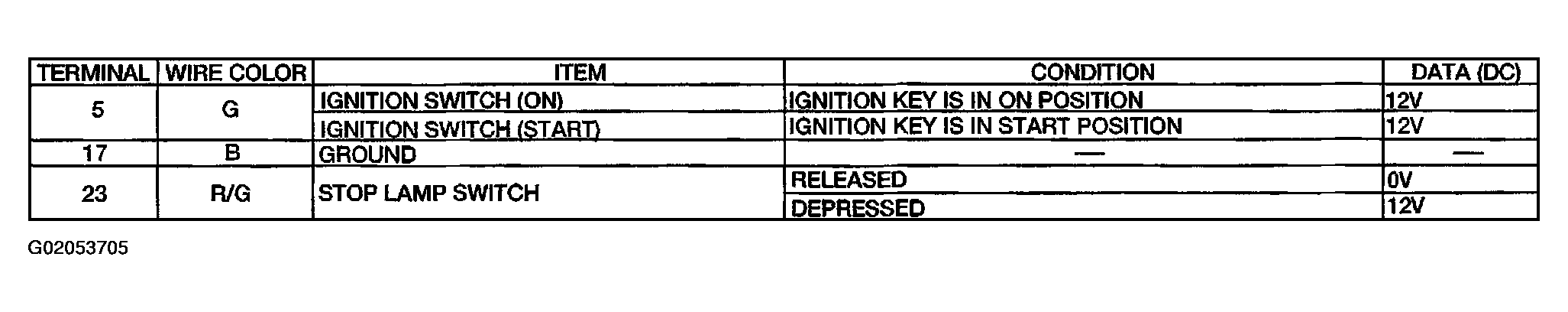

Fig 7: Reference Values Between Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
