Input/Output (Smart Entrance Control Unit)

For Smart Entrance Control Unit (SECU) input/outputs, see Fig 1 .

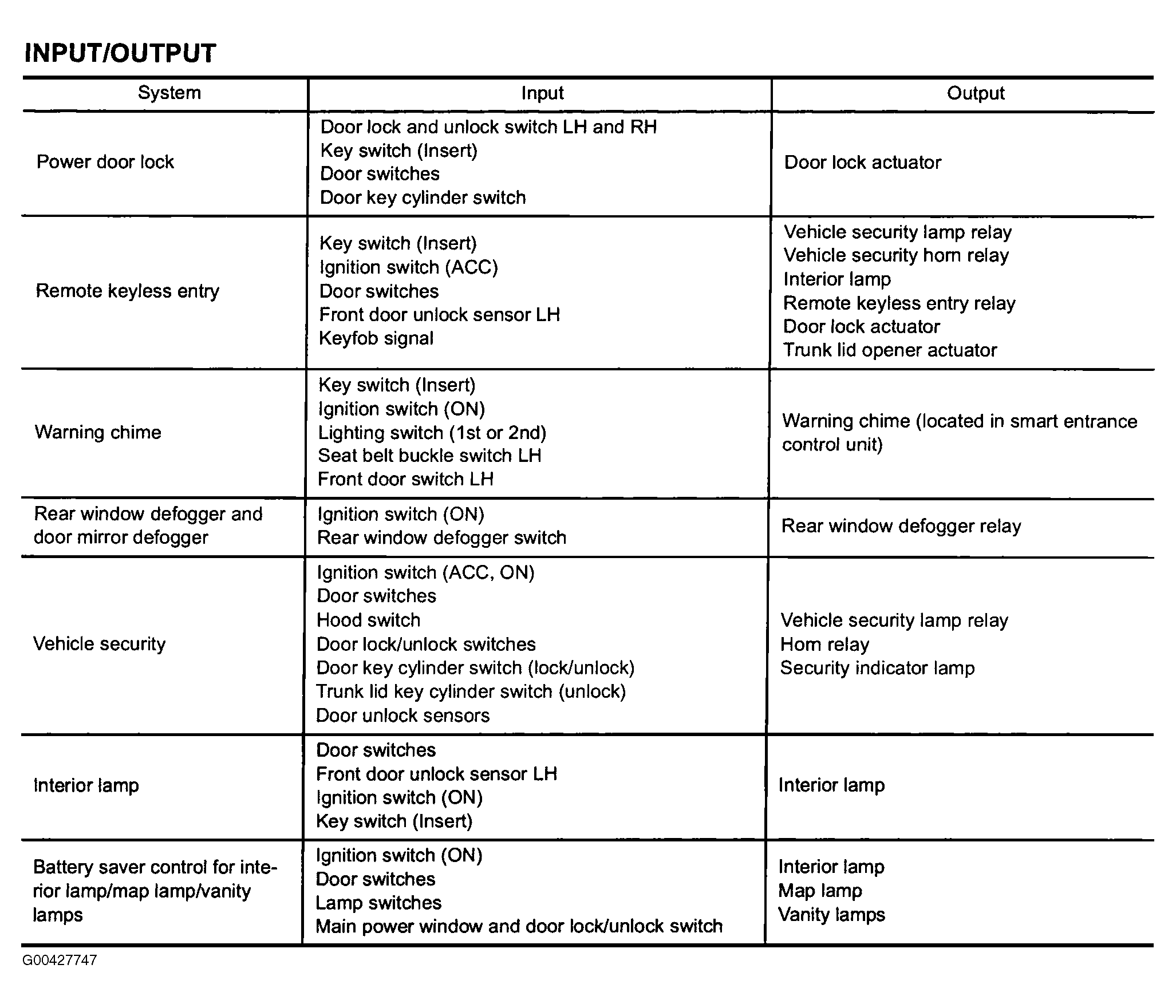

Fig 1: Identifying Smart Entrance Control Unit Input/Outputs
G00227747Courtesy of NISSAN MOTOR CO., U.S.A.
