Can Communication Circuit Test

NOTE: For ECM/TCM internal circuit inspection, see ECM/TCM INTERNAL CIRCUIT INSPECTION under COMPONENT TESTS and for DTC U1000 & U1001: CAN COMMUNICATION LINE (ENGINE) and DTC U1000: CAN COMMUNICATION LINE (A/T), see DTC U1000 & U1001: CAN COMMUNICATION LINE (ENGINE) and DTC U1000: CAN COMMUNICATION LINE (A/T) .

For CAN communication circuit test, see Fig 1 -Fig 4 .

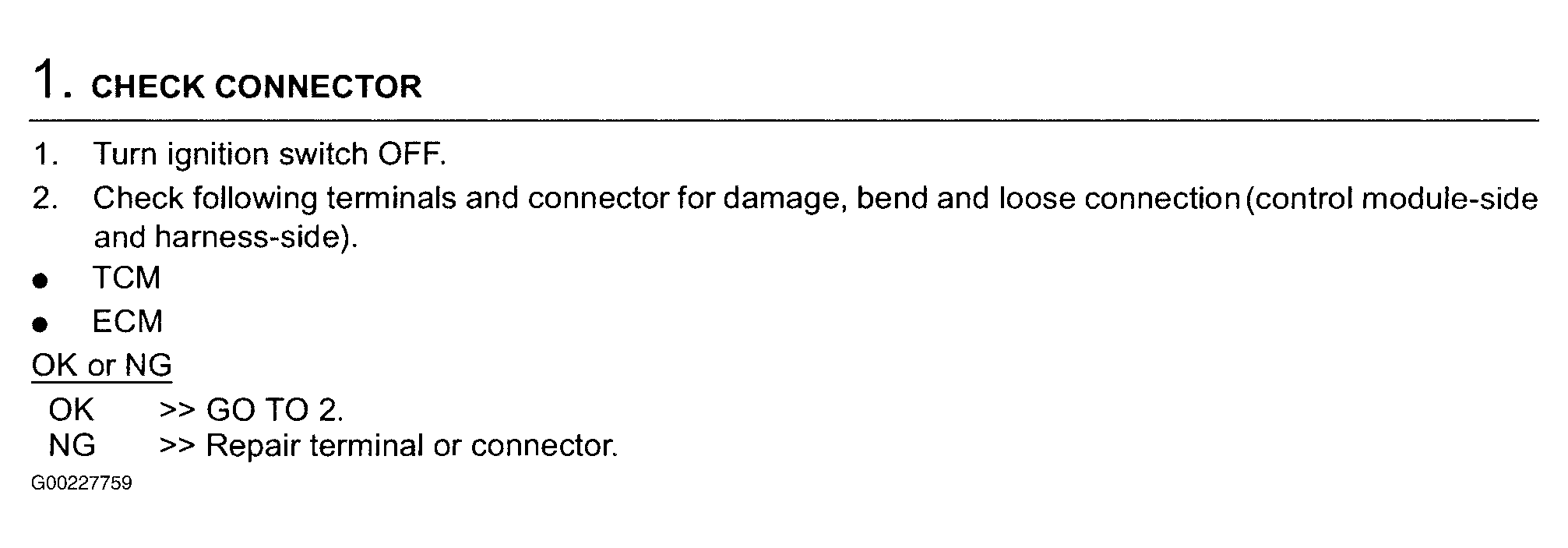

Fig 1: Identifying CAN Communication Circuit Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

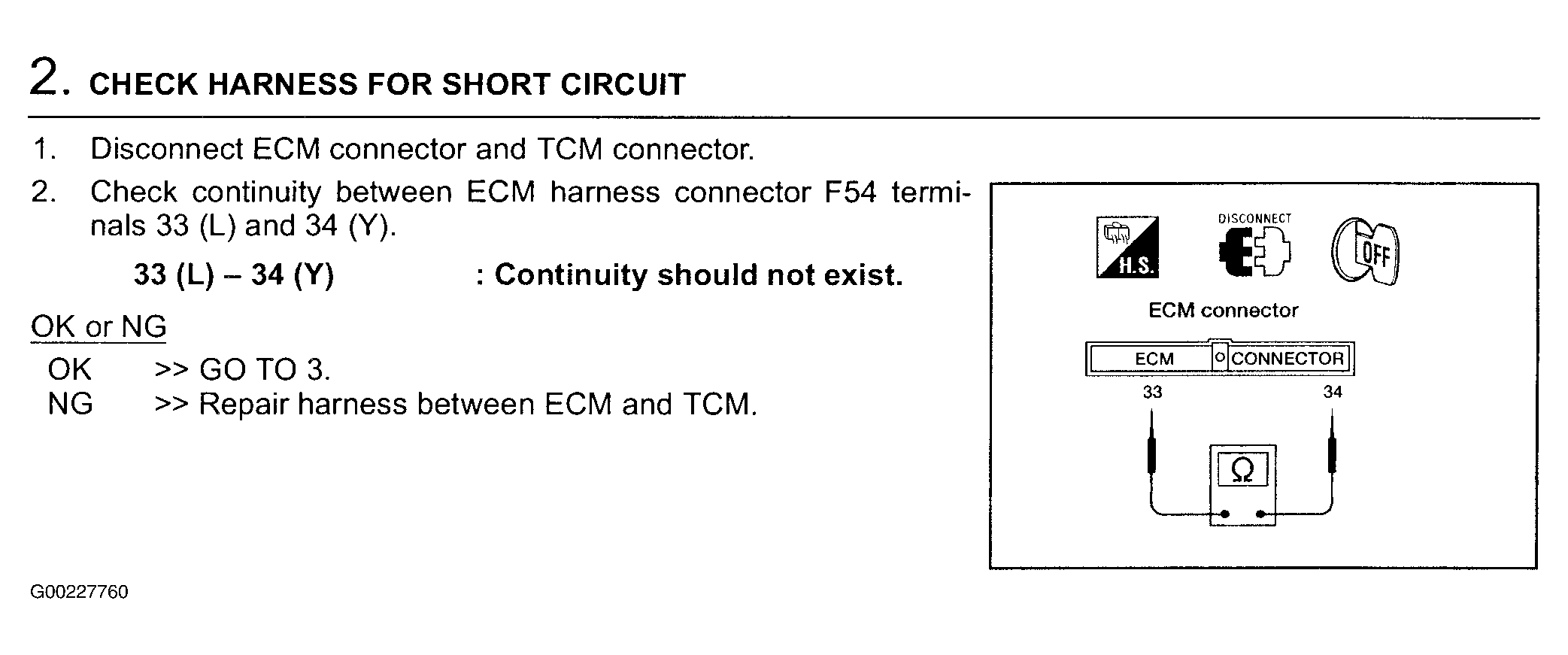

Fig 2: Identifying CAN Communication Circuit Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

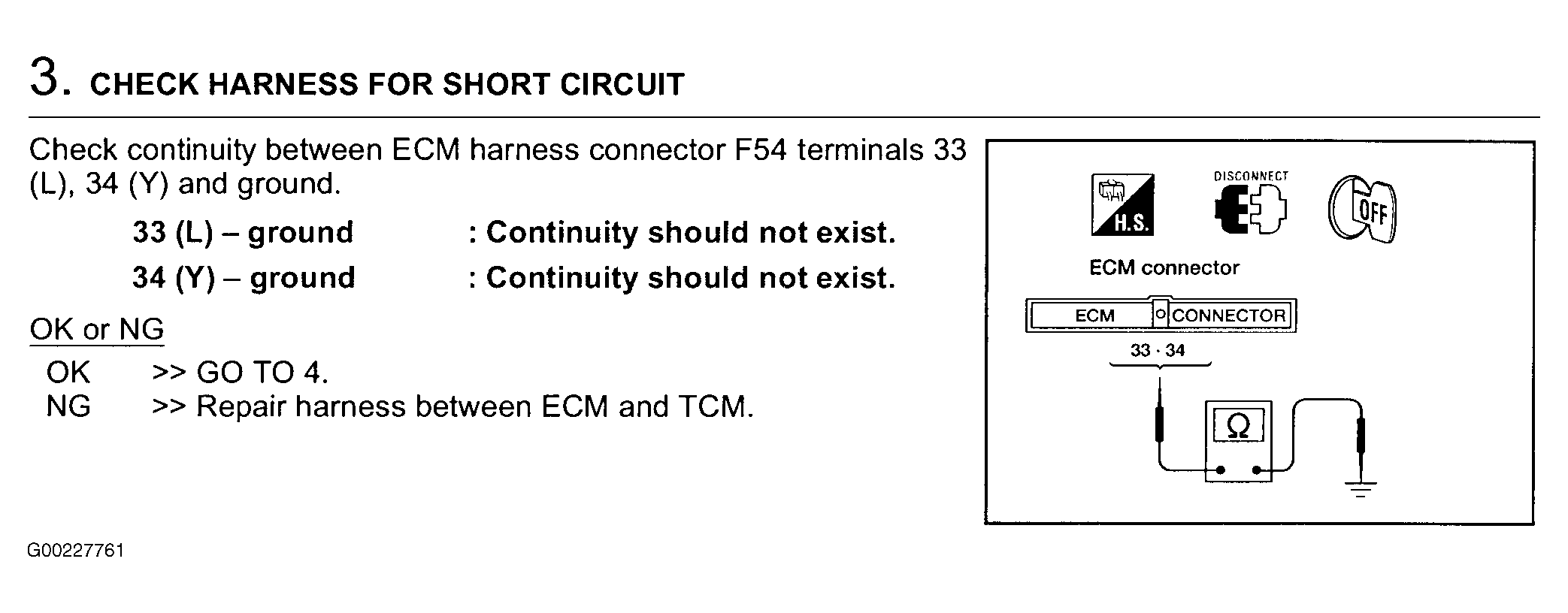

Fig 3: Identifying CAN Communication Circuit Test, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.

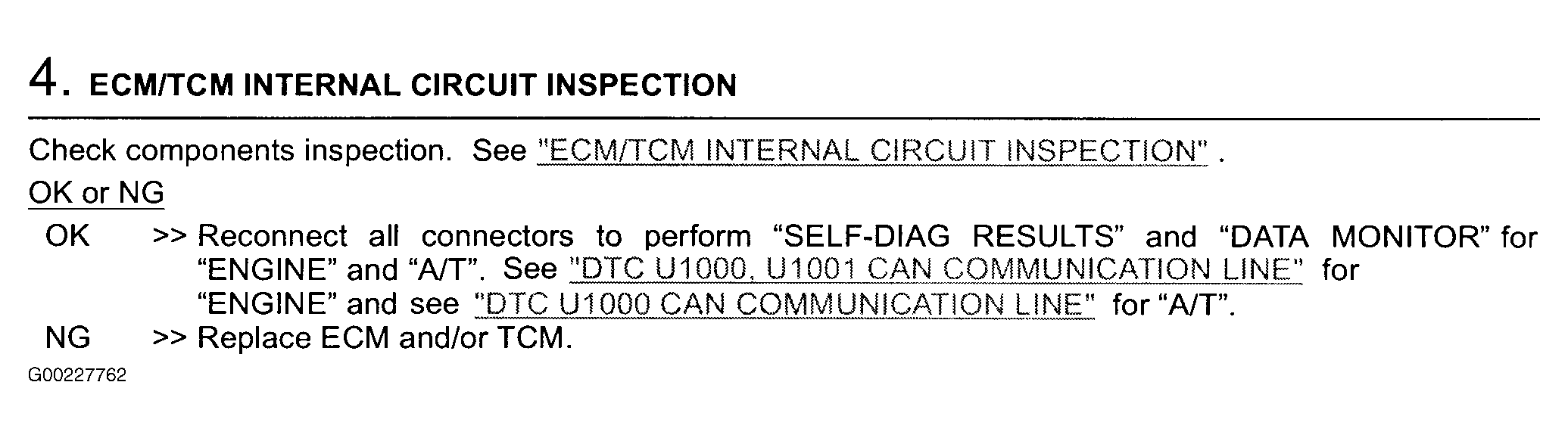

Fig 4: Identifying CAN Communication Circuit Test, Step 4

Courtesy of NISSAN MOTOR CO., U.S.A.
