Wheel Alignment Specifications & Adjustment Procedures: Specifications: XTERRA

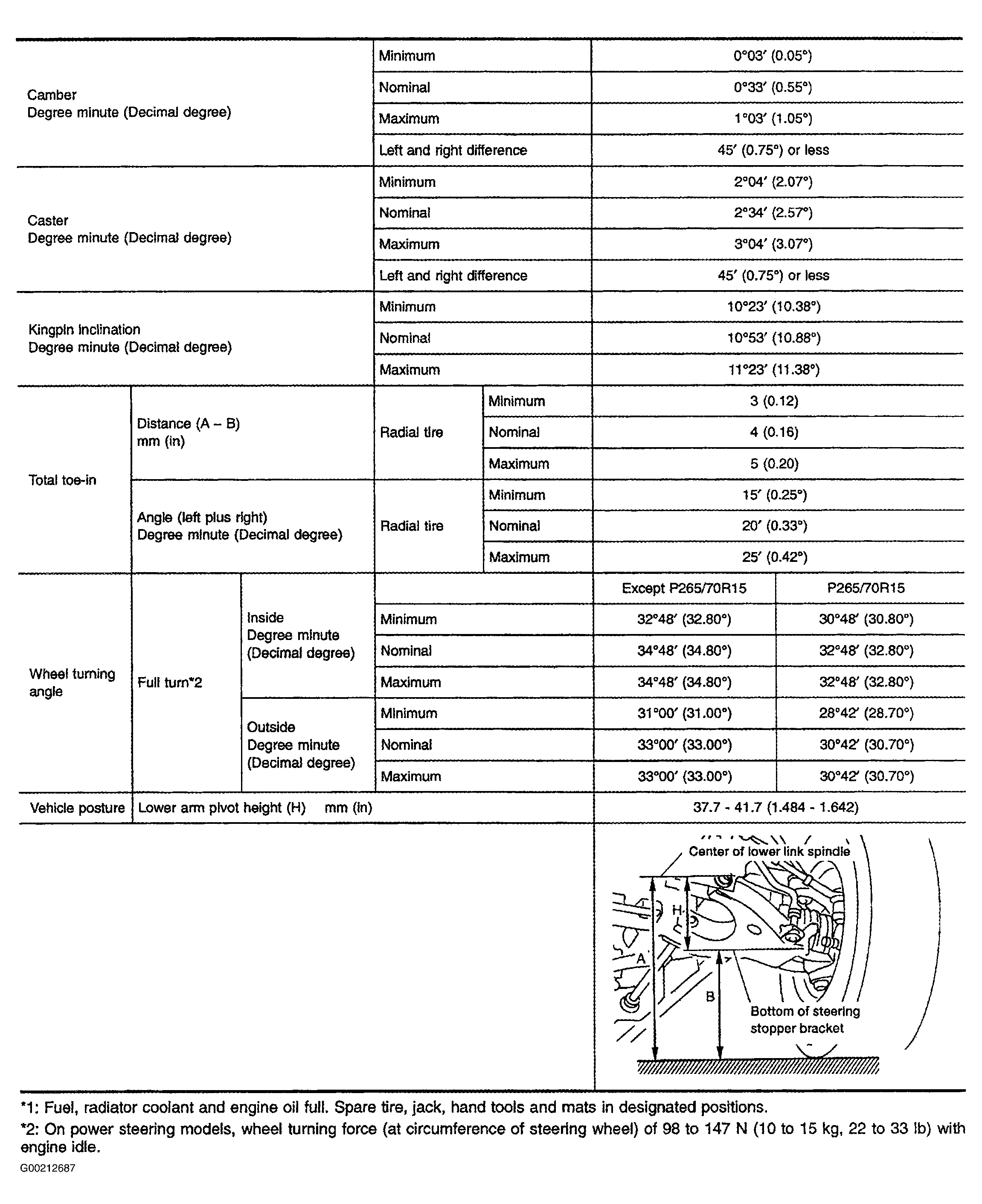

Fig 1: Wheel Alignment Specifications (Xterra - 2WD)
G00212687Courtesy of NISSAN MOTOR CO., U.S.A.

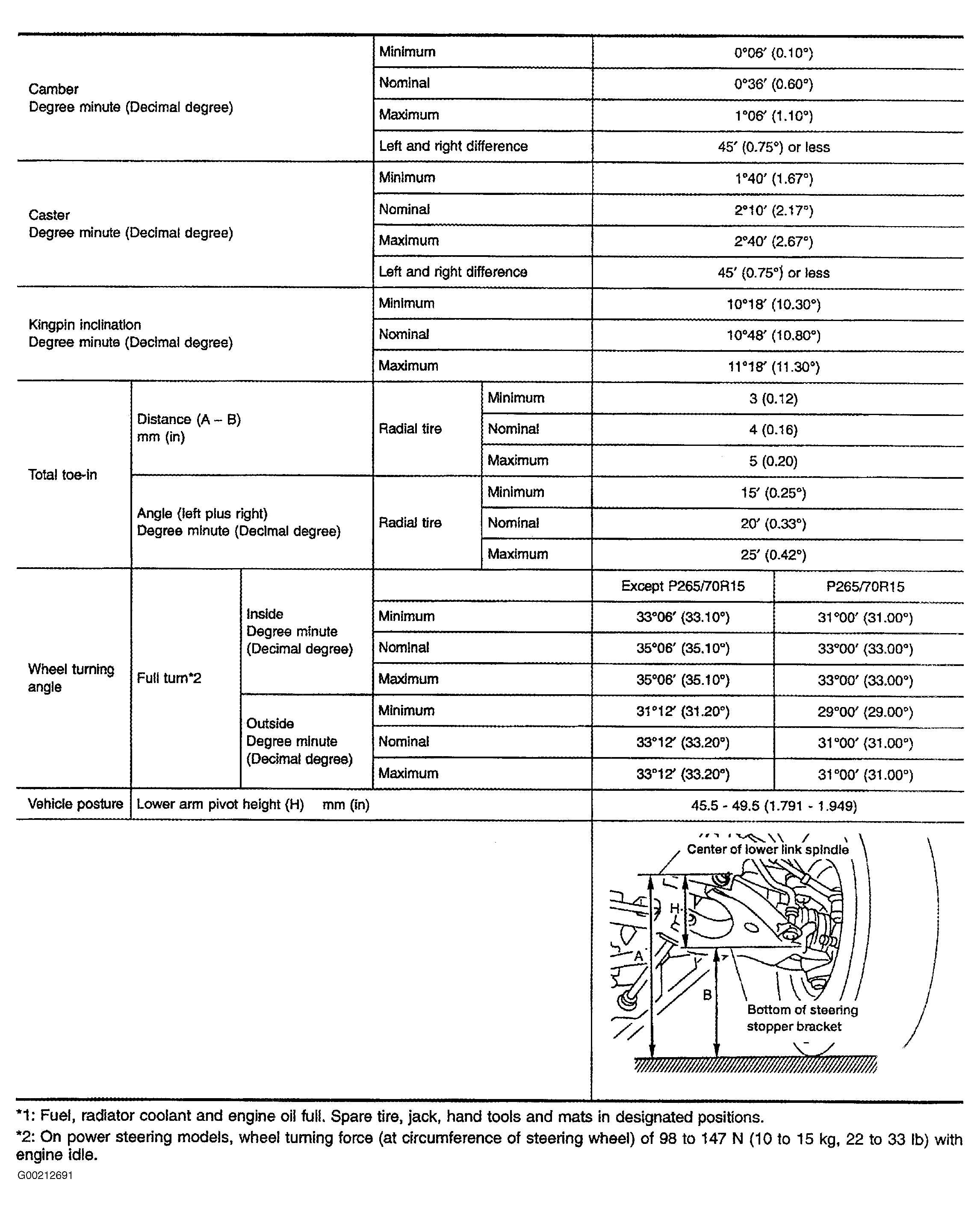

Fig 2: Wheel Alignment Specifications (Xterra - 4WD)
G00212691Courtesy of NISSAN MOTOR CO., U.S.A.
