System Drawing

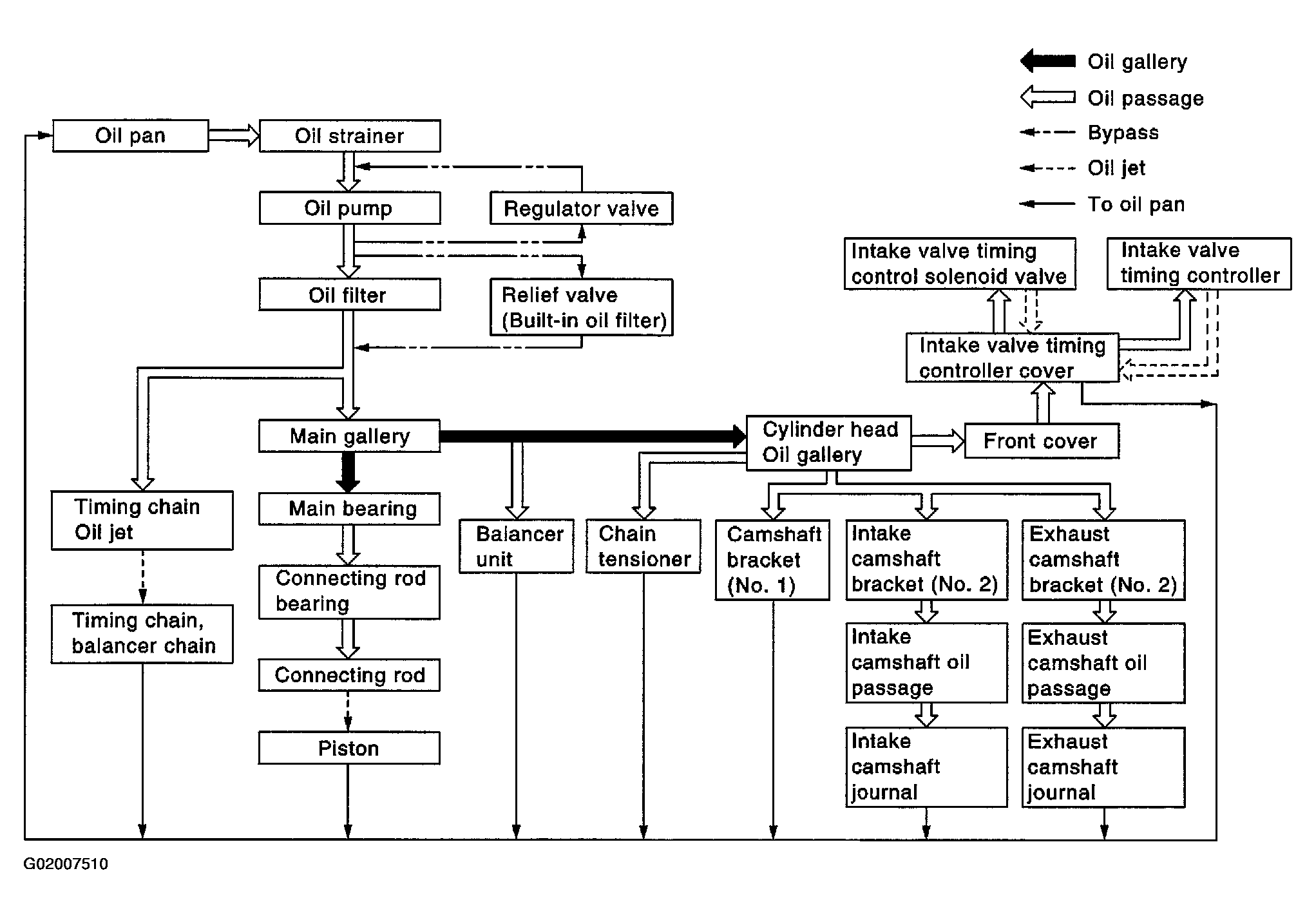

Fig 1: Diagramming Lubrication Flowchart

G02007510

Courtesy of NISSAN MOTOR CO., U.S.A.
