TCM Inspection Table

(Data are reference values.)

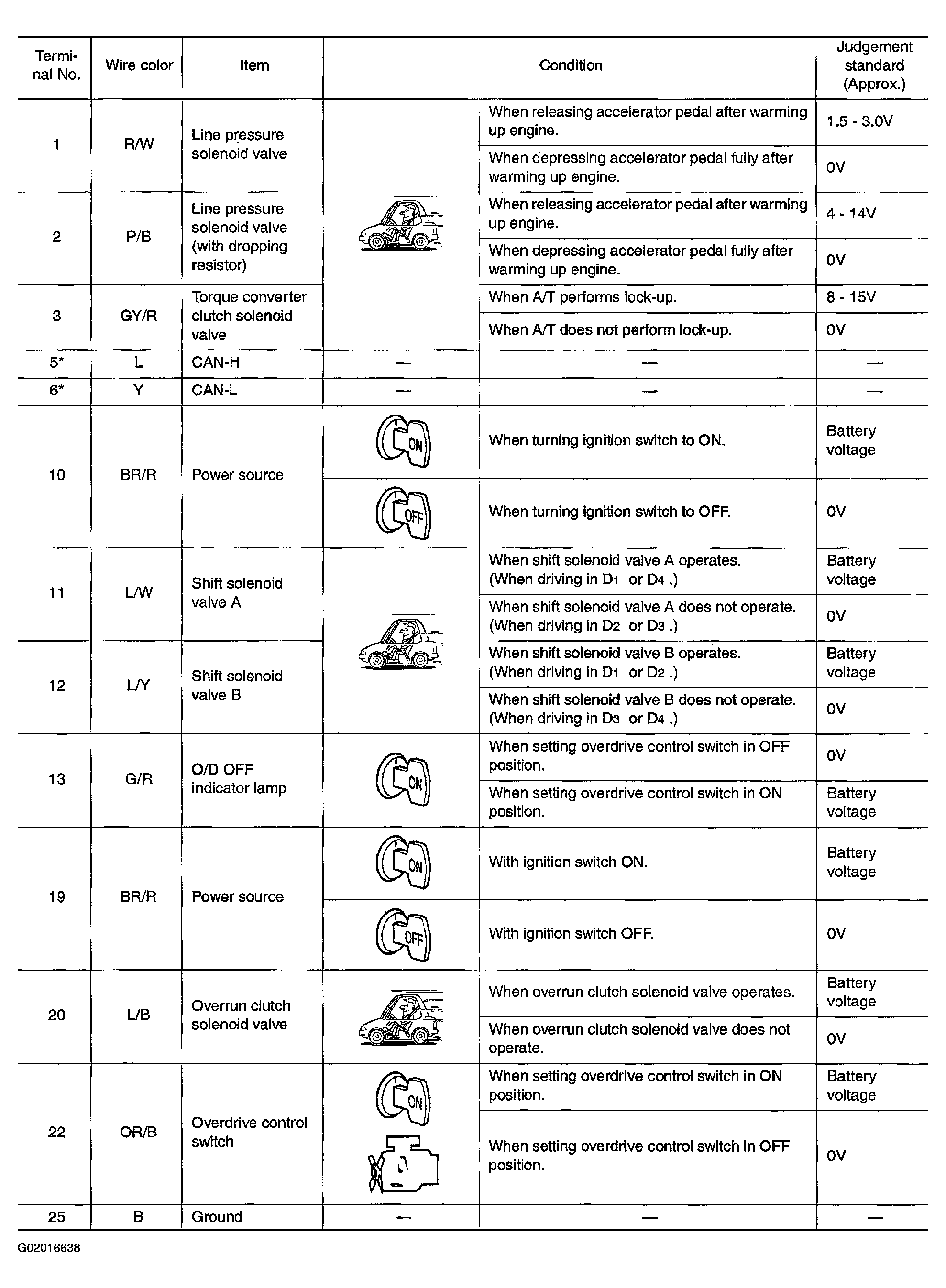

Fig 1: TCM Terminals Voltage Specifications (Terminal 1 To 25)
G02016638Courtesy of NISSAN MOTOR CO., U.S.A.

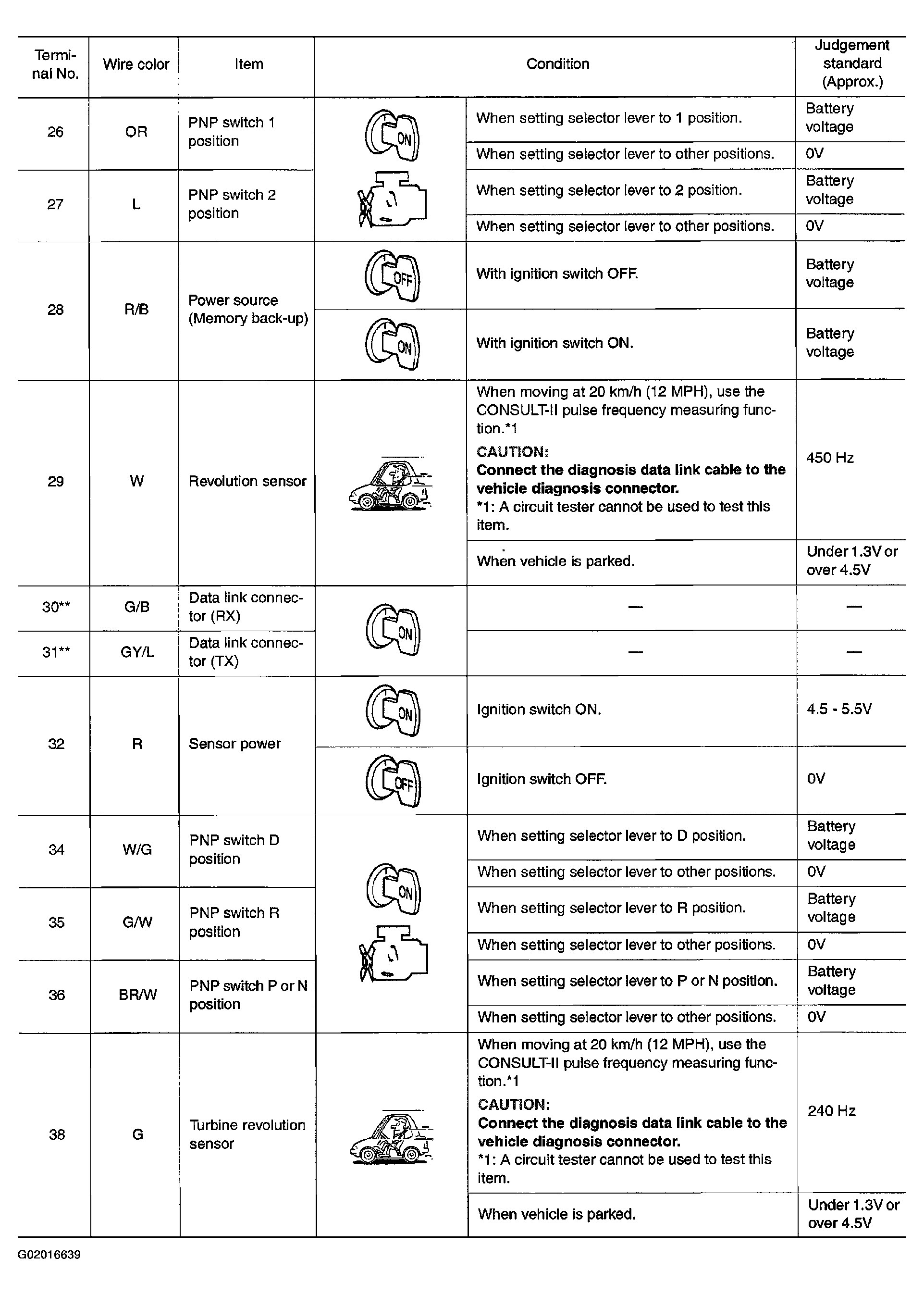

Fig 2: TCM Terminals Voltage Specifications (Terminal 26 To 38)
G02016639Courtesy of NISSAN MOTOR CO., U.S.A.

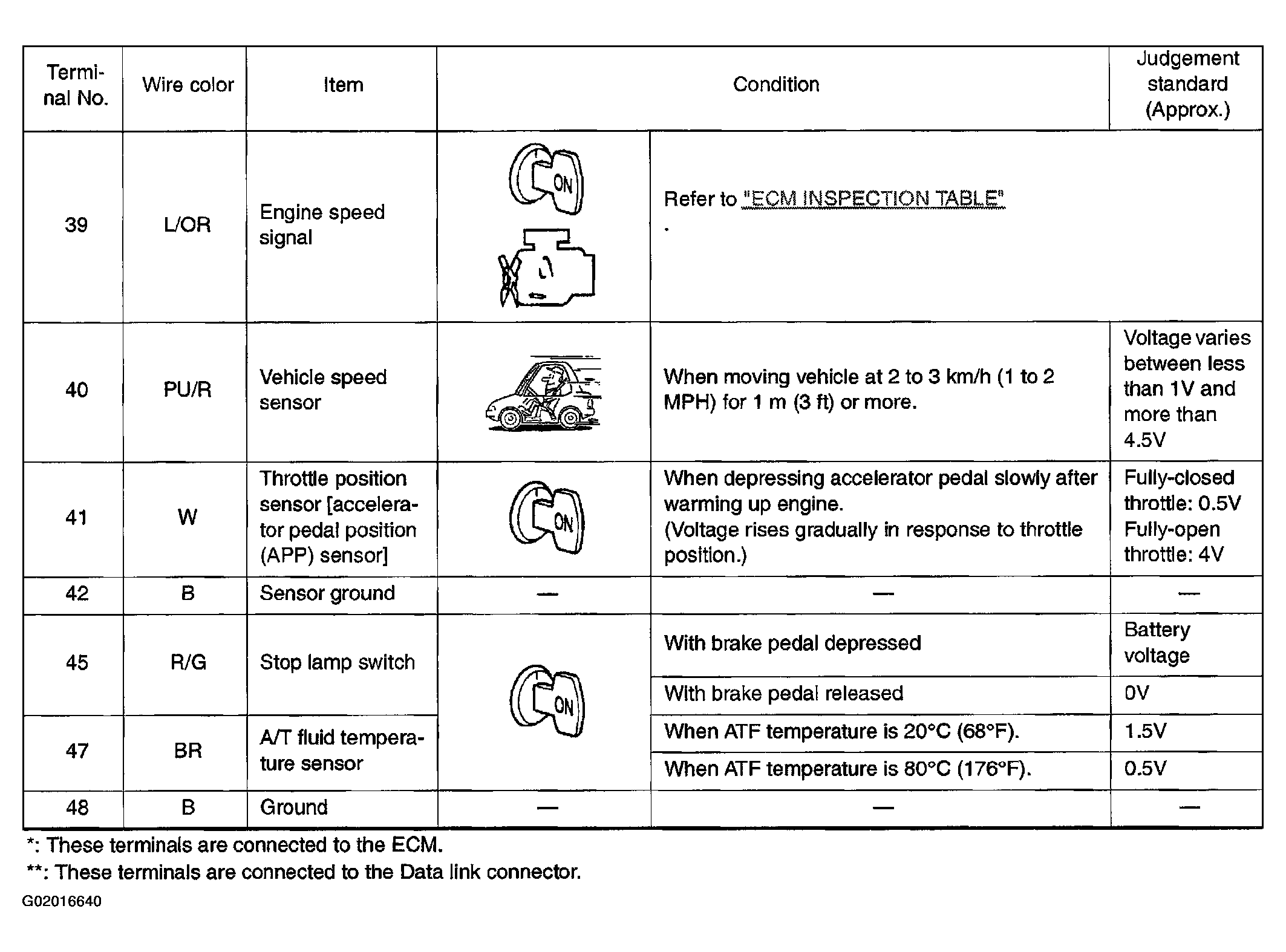

Fig 3: TCM Terminals Voltage Specifications (Terminal 39 To 48)
G02016640Courtesy of NISSAN MOTOR CO., U.S.A.
