Symptom Chart

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

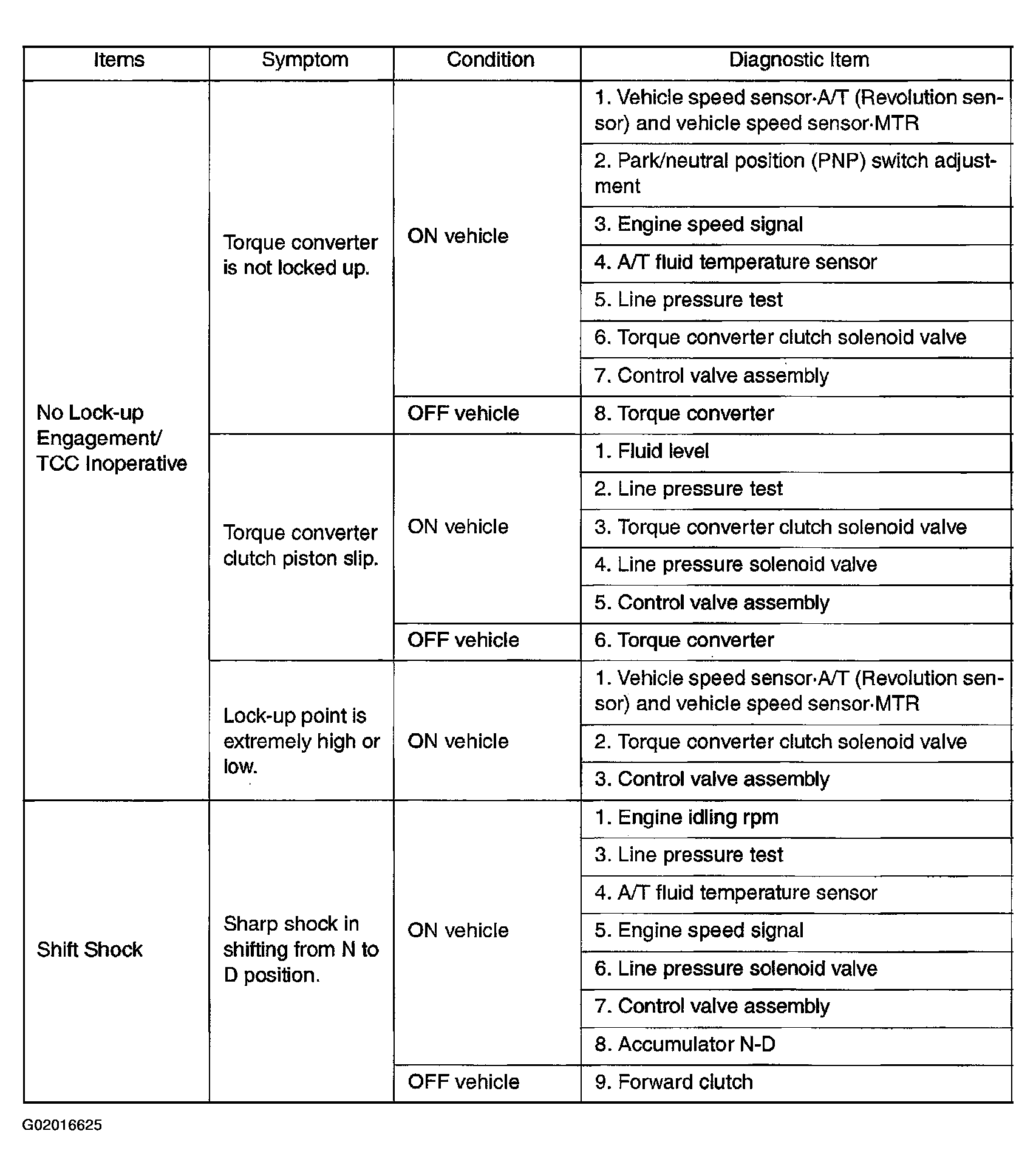

Fig 1: Symptom Chart (1 Of 11)

G02016625

Courtesy of NISSAN MOTOR CO., U.S.A.

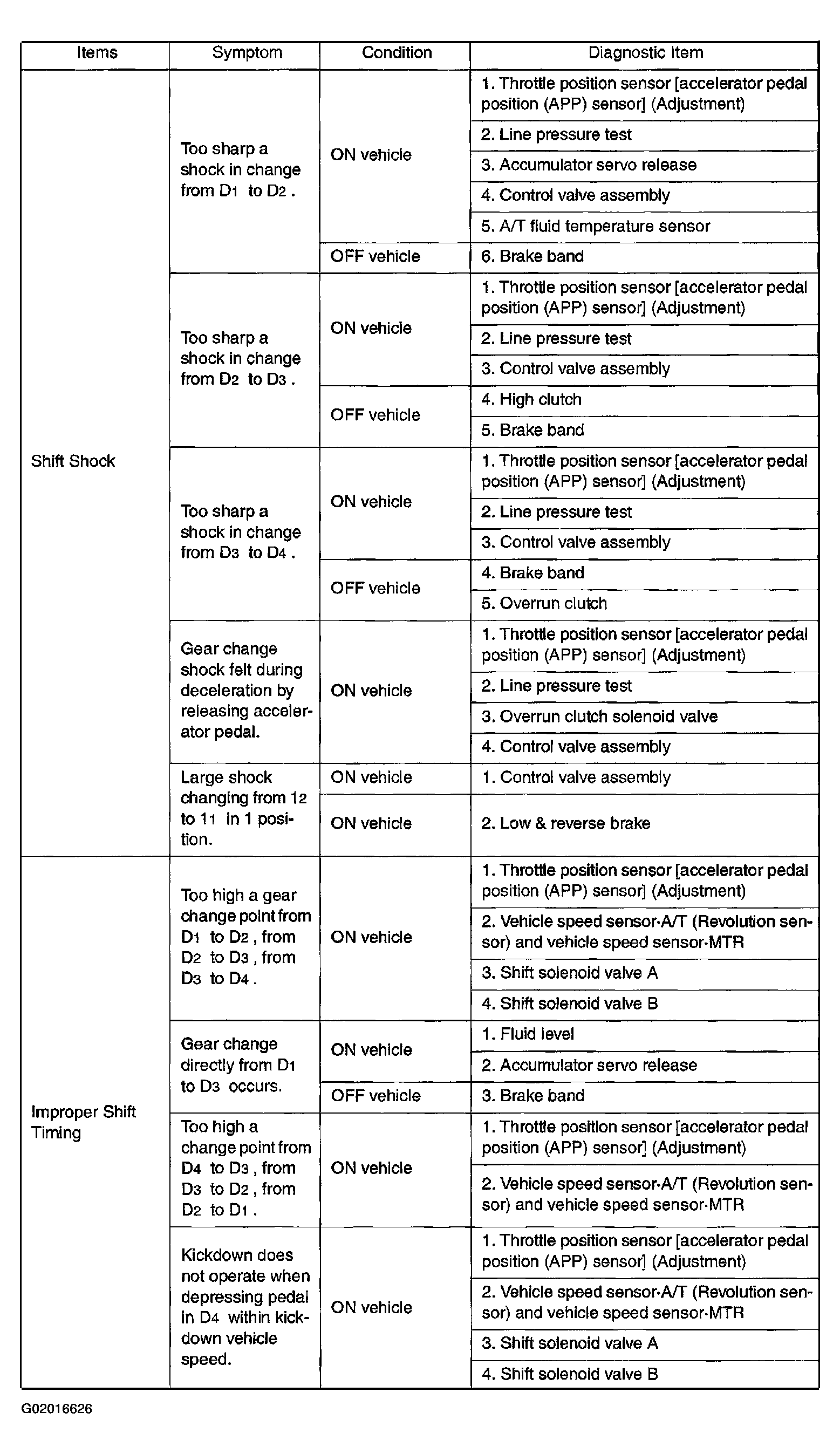

Fig 2: Symptom Chart (2 Of 11)

G02016626

Courtesy of NISSAN MOTOR CO., U.S.A.

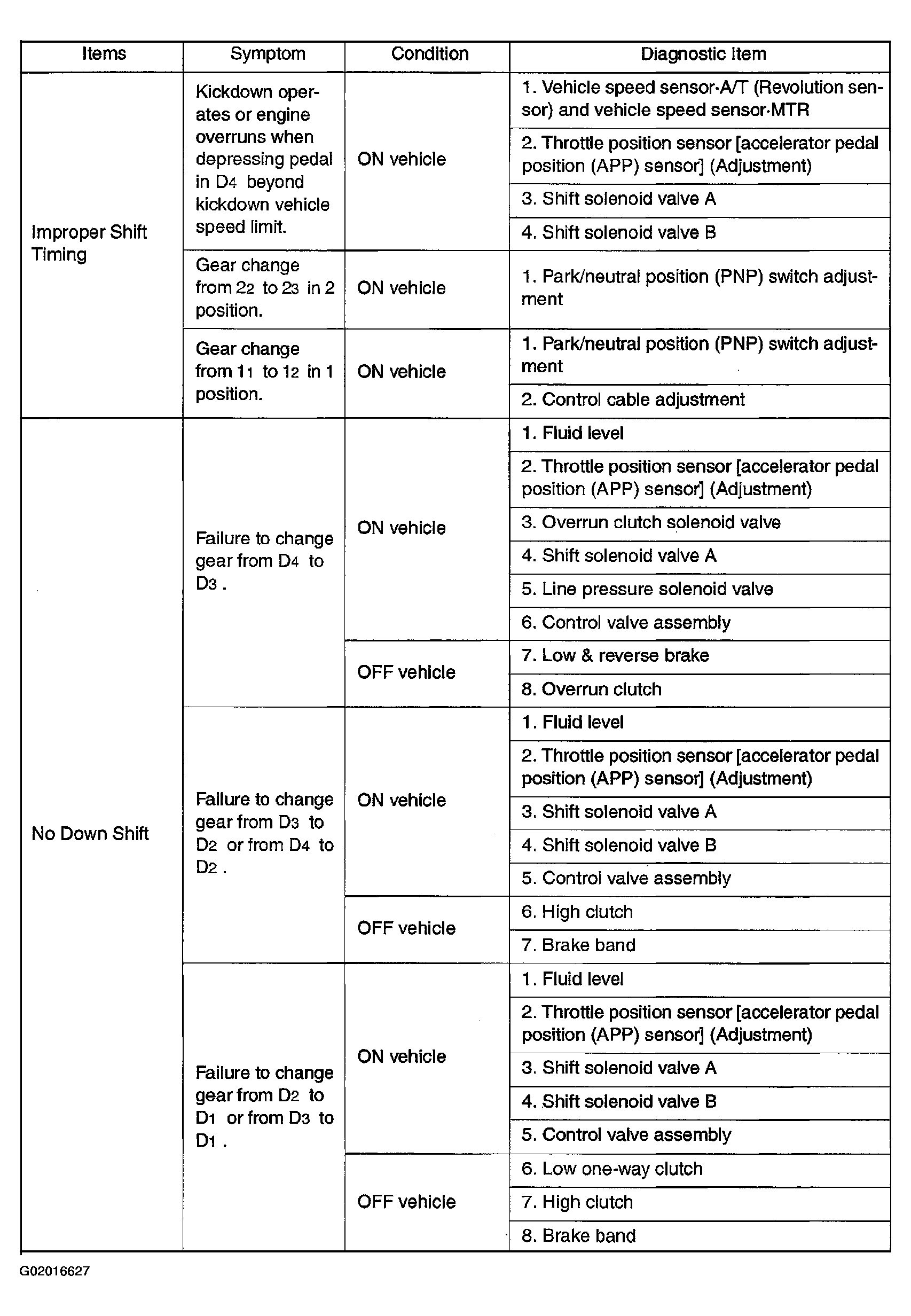

Fig 3: Symptom Chart (3 Of 11)

G02016627

Courtesy of NISSAN MOTOR CO., U.S.A.

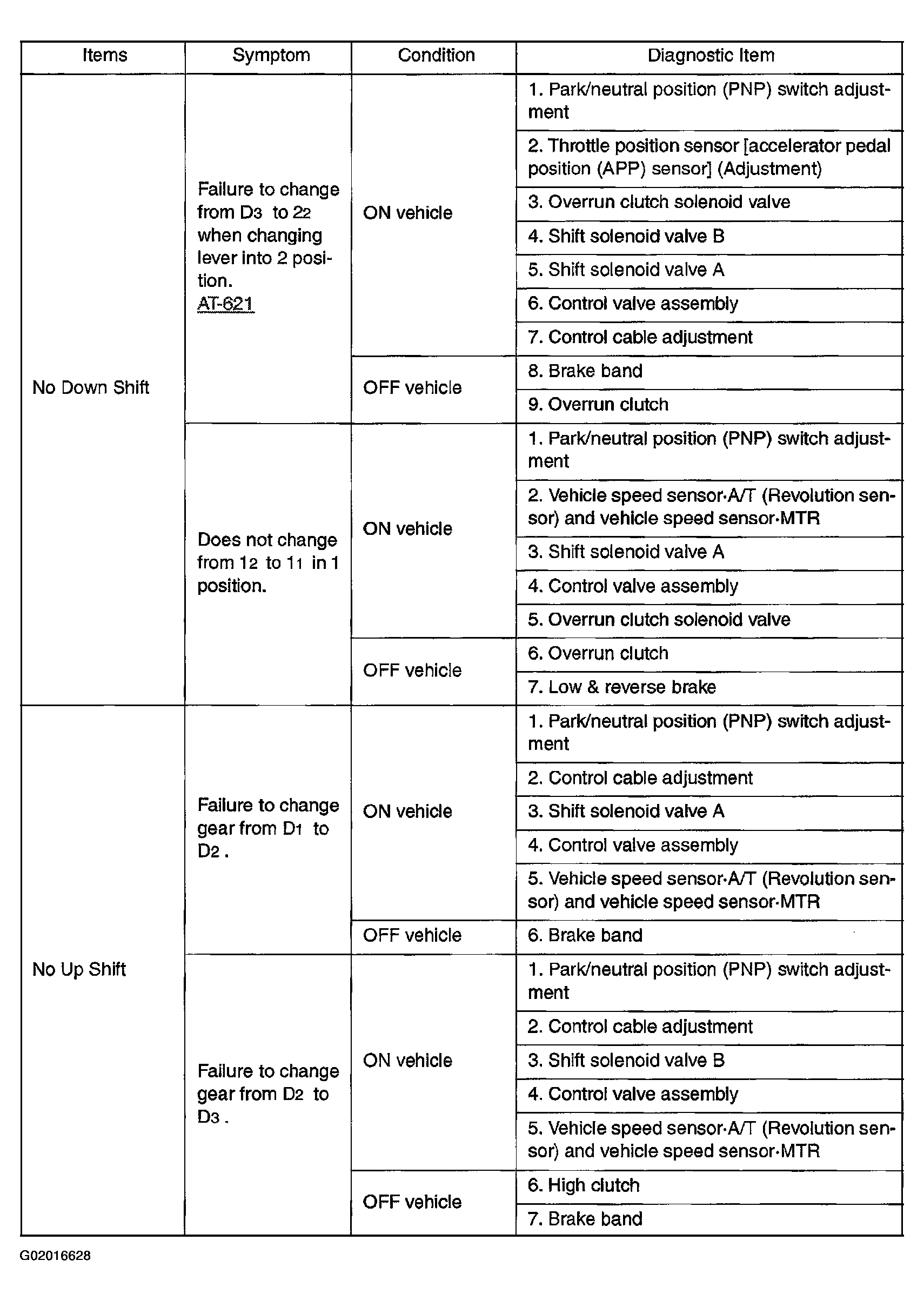

Fig 4: Symptom Chart (4 Of 11)

G02016628

Courtesy of NISSAN MOTOR CO., U.S.A.

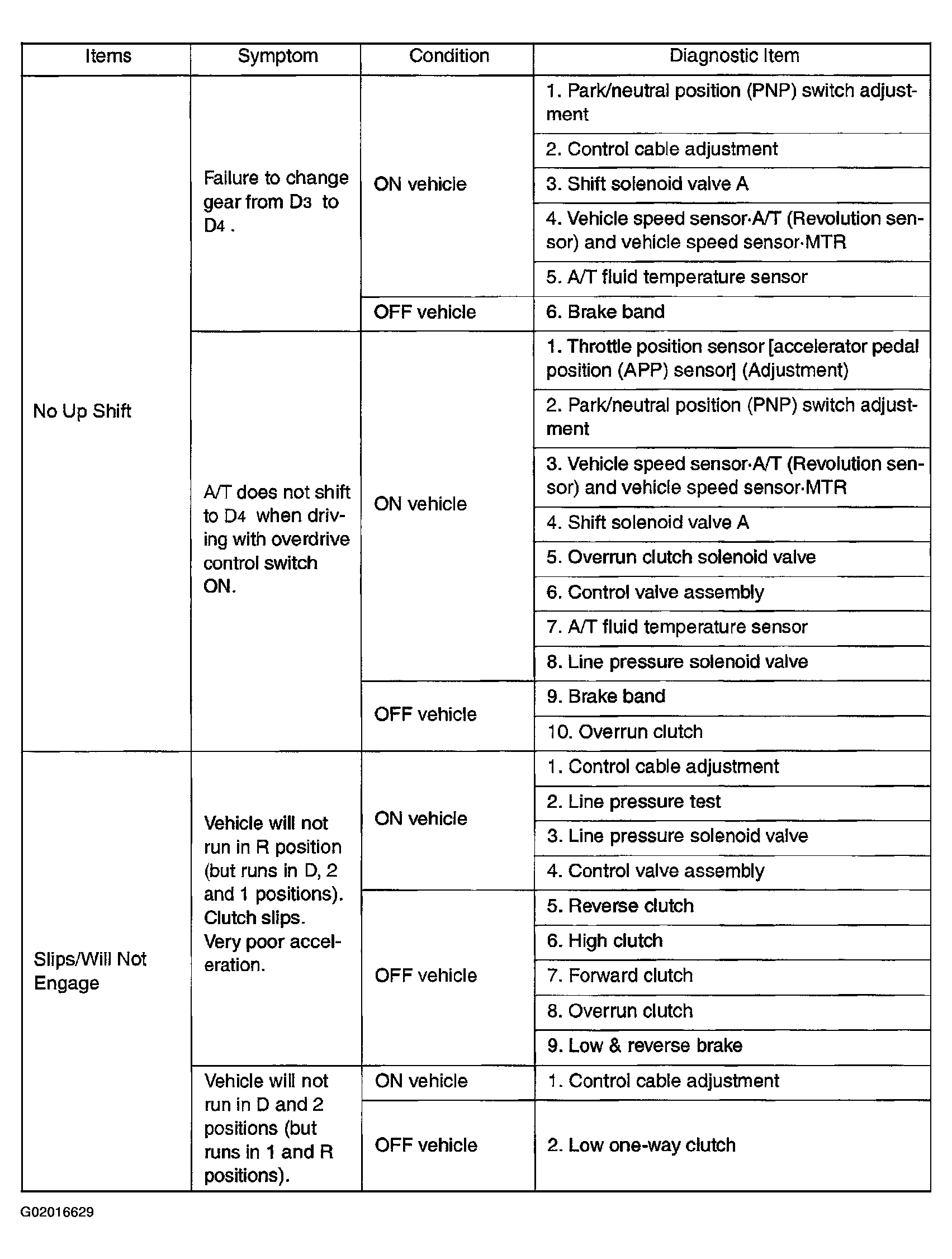

Fig 5: Symptom Chart (5 Of 11)

G02016629

Courtesy of NISSAN MOTOR CO., U.S.A.

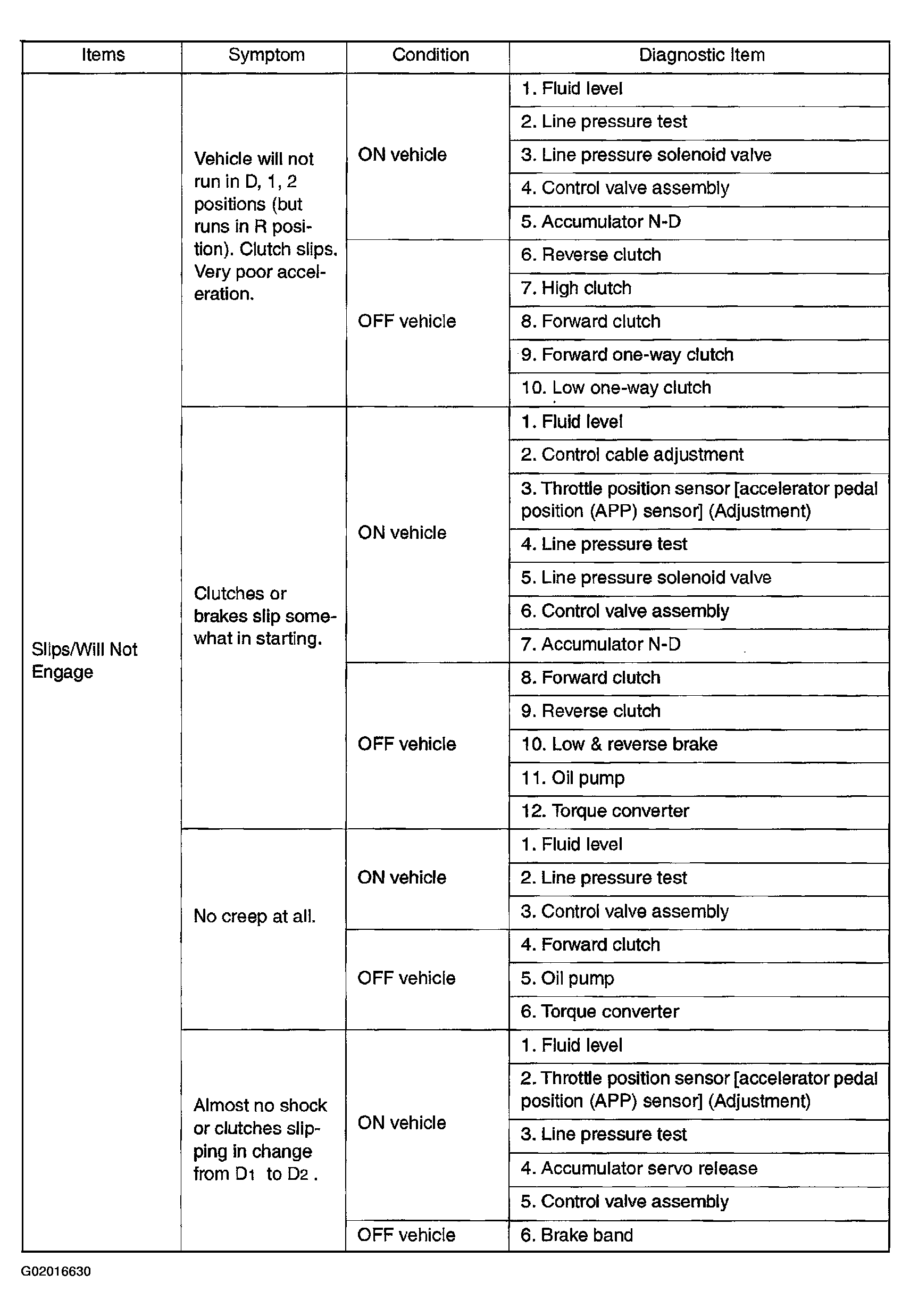

Fig 6: Symptom Chart (6 Of 11)

G02016630

Courtesy of NISSAN MOTOR CO., U.S.A.

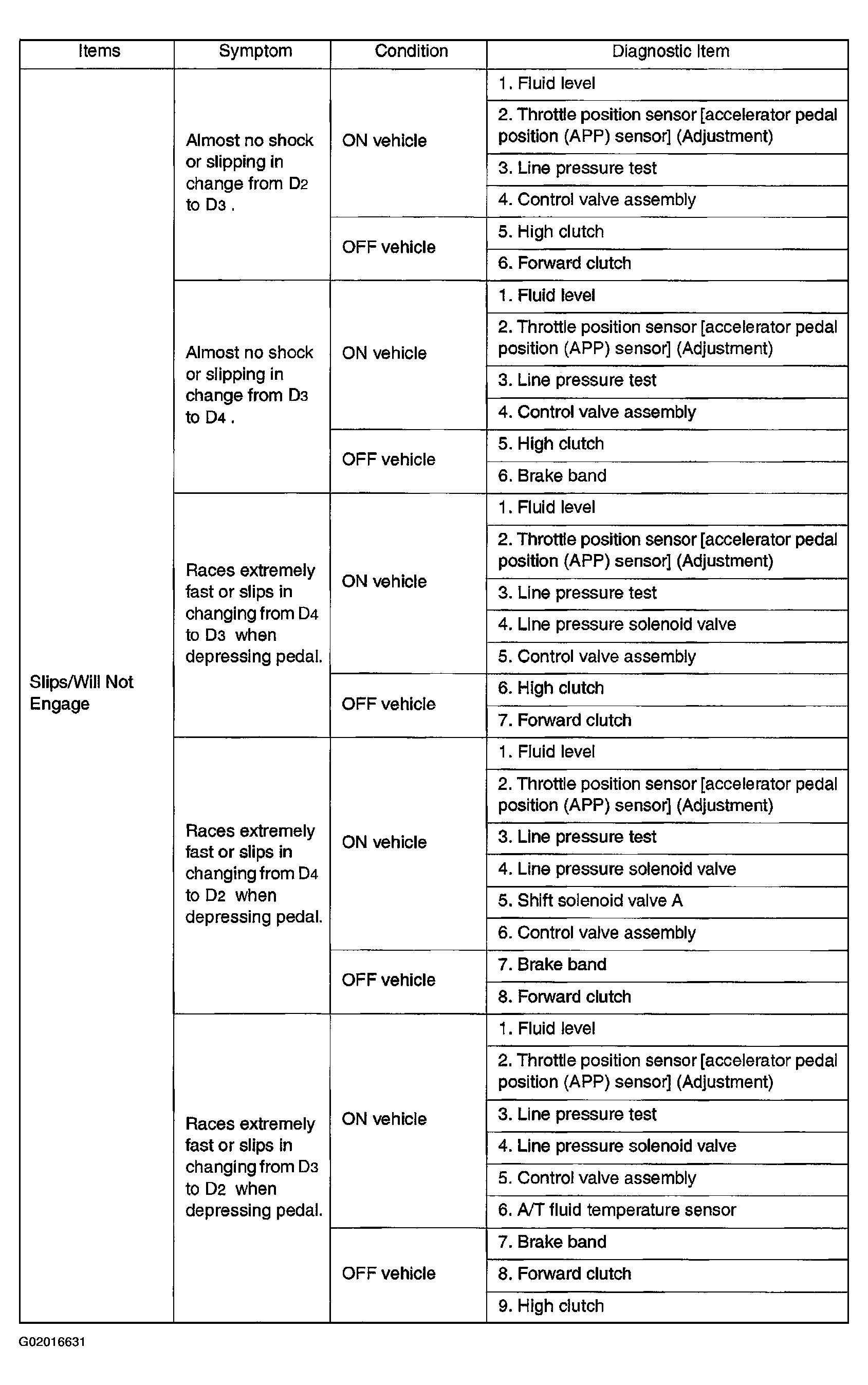

Fig 7: Symptom Chart (7 Of 11)

G02016631

Courtesy of NISSAN MOTOR CO., U.S.A.

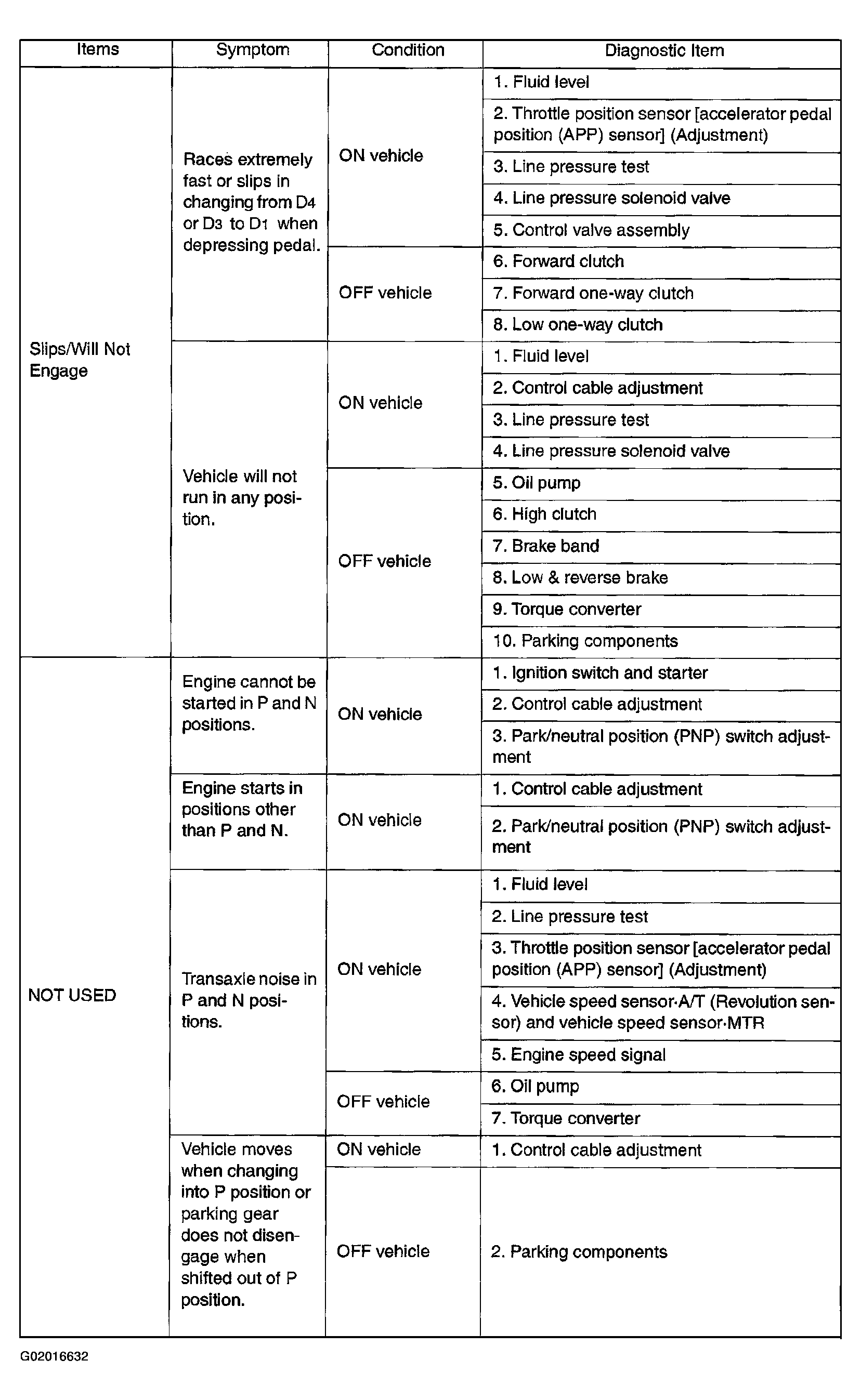

Fig 8: Symptom Chart (8 Of 11)

G02016632

Courtesy of NISSAN MOTOR CO., U.S.A.

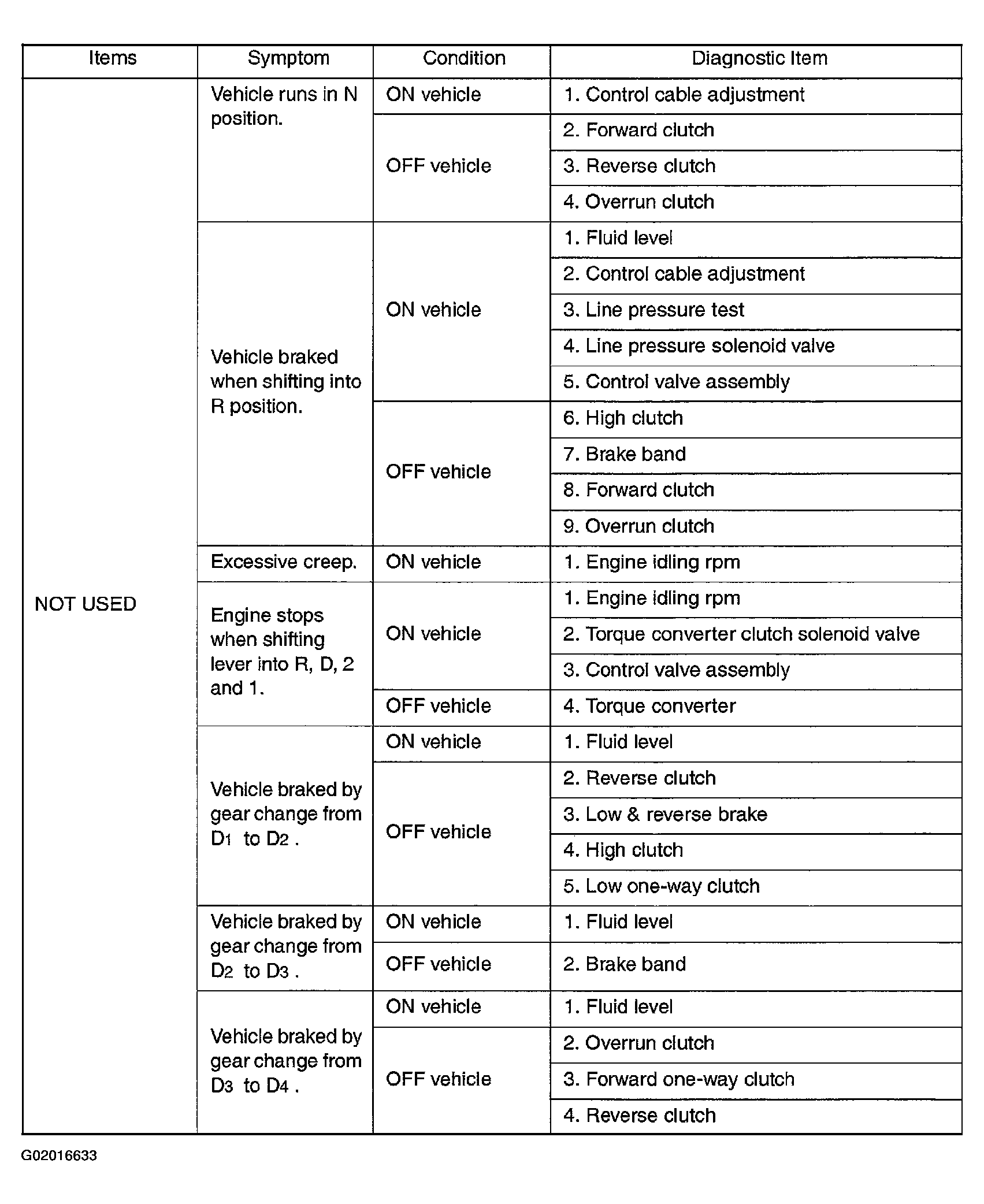

Fig 9: Symptom Chart (9 Of 11)

G02016633

Courtesy of NISSAN MOTOR CO., U.S.A.

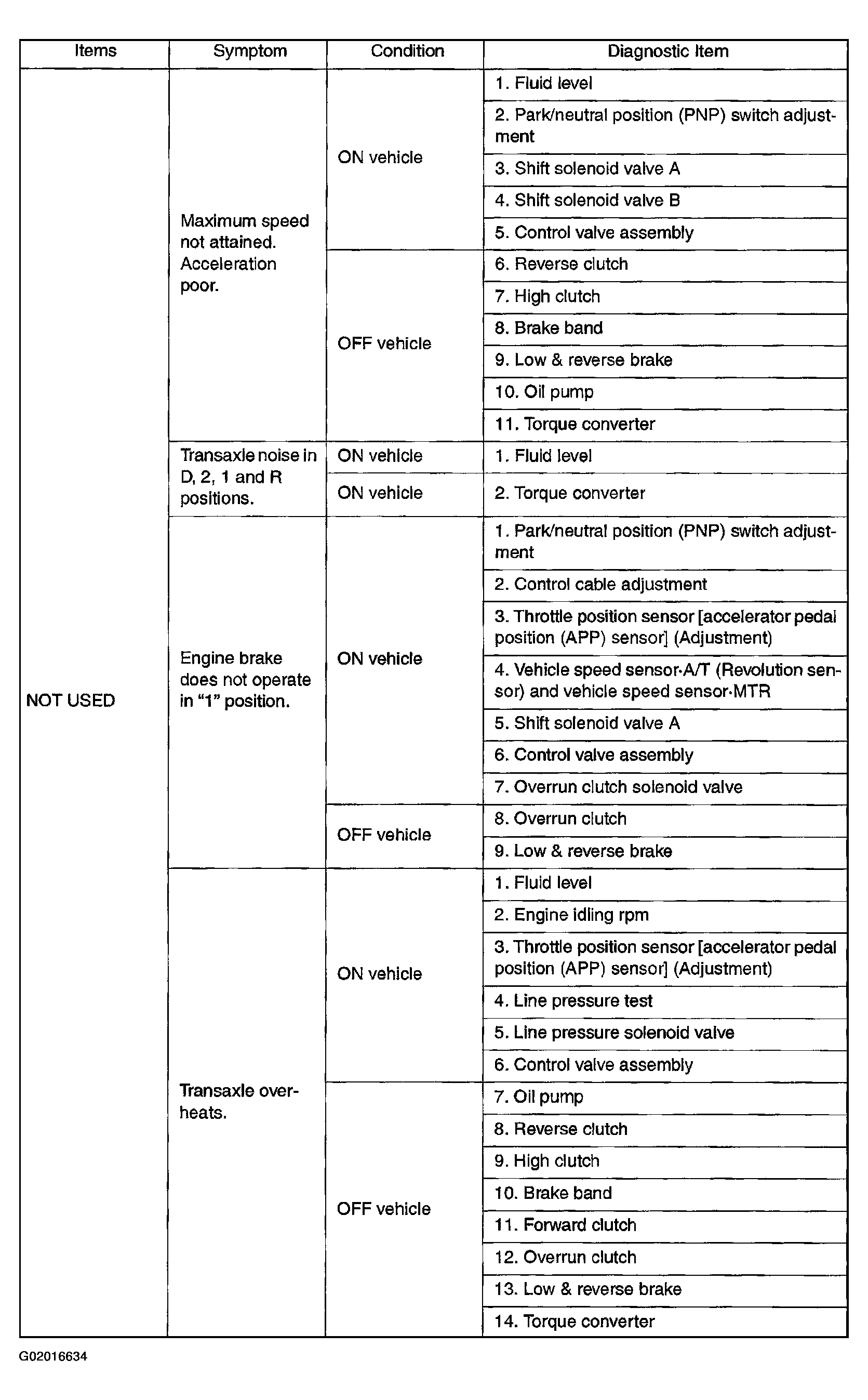

Fig 10: Symptom Chart (10 Of 11)

G02016634

Courtesy of NISSAN MOTOR CO., U.S.A.

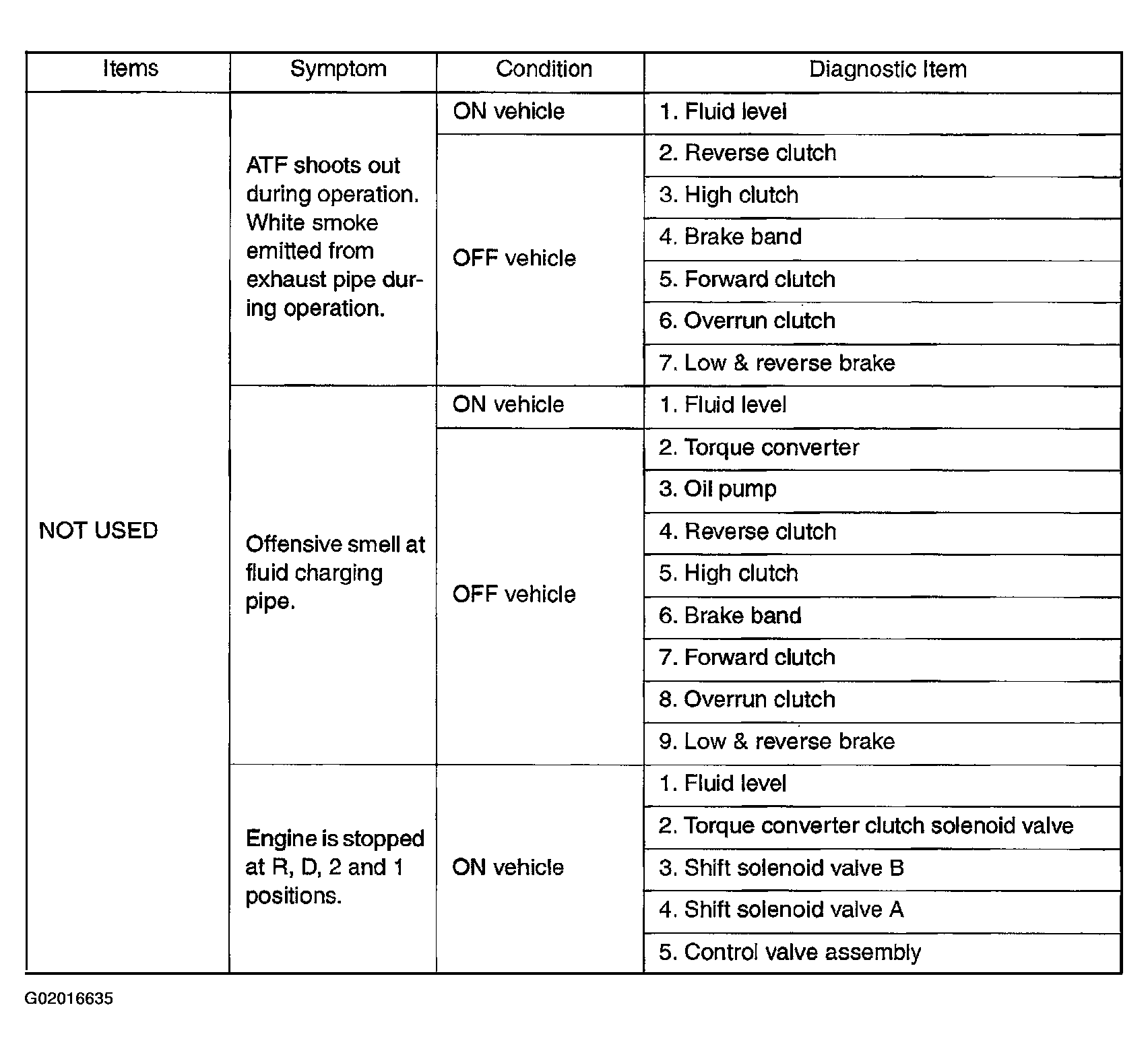

Fig 11: Symptom Chart (11 Of 11)

G02016635

Courtesy of NISSAN MOTOR CO., U.S.A.
