3. Cruise Test: Notes

• Check all items listed in Parts 1 through 3.

With CONSULT-II

• Using CONSULT-II, conduct a cruise test and record the result.
  Fig 1: Identifying CONSULT-II

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Print the result and ensure that shifts and lock-ups take place as per Shift Schedule. Refer to SHIFT SCHEDULE

CONSULT-II Setting Procedure

Fig 2: Connecting CONSULT-II To Data Link Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector, which is located in left side dash panel.
3. Turn ignition switch ON.
4. Touch START.
   Fig 3: CONSULT-II Display - Touch "START"

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch A/T.
   Fig 4: CONSULT-II Display - Touch "A/T"

   Courtesy of NISSAN MOTOR CO., U.S.A.

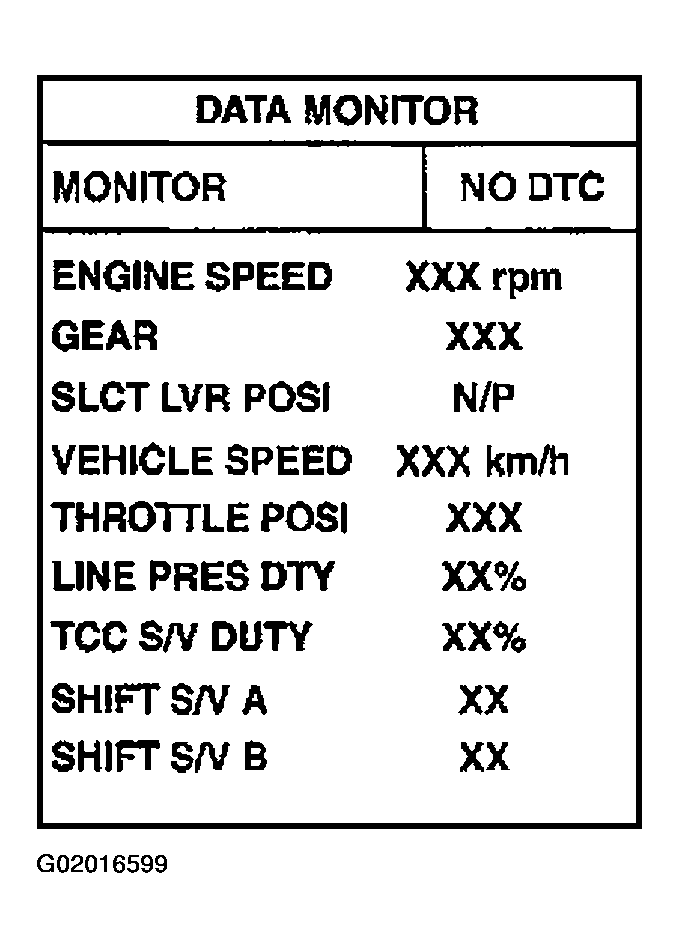

6. Touch DATA MONITOR.
   Fig 5: CONSULT-II Display - Touch "DATA MONITOR"

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Touch MAIN SIGNAL or TCM INPUT SIGNALS.
   Fig 6: CONSULT-II Display - Touch "MAIN SIGNALS"

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. See NUMERICAL DISPLAY, BARCHART DISPLAY or LINE GRAPH DISPLAY.

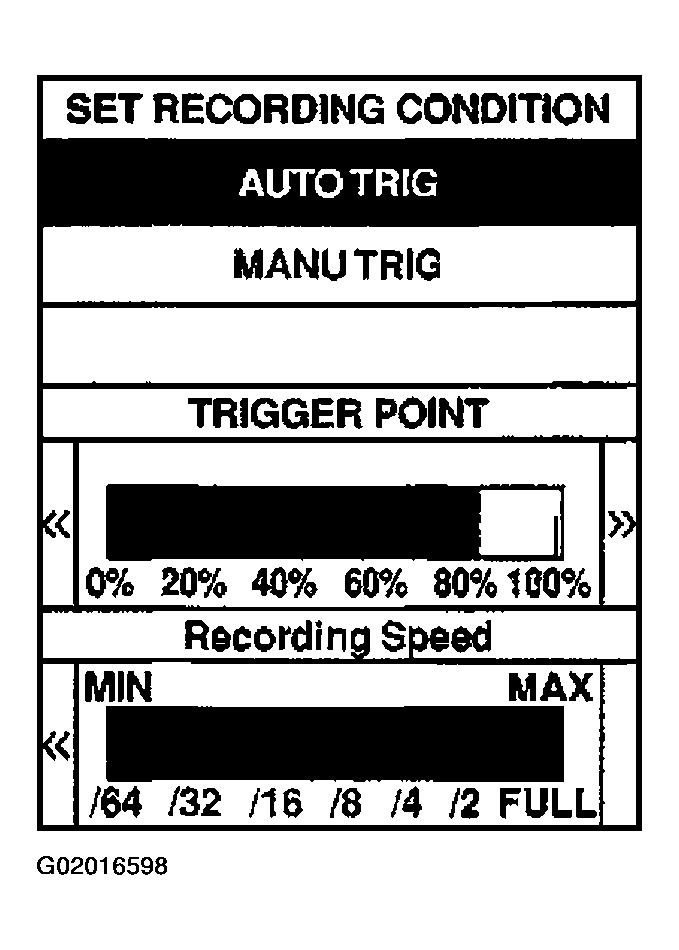

9. Touch SETTING to set recording condition (AUTO TRIG or MANU TRIG) and touch BACK.
   Fig 7: CONSULT-II Display - Touch "SETTING"

   Courtesy of NISSAN MOTOR CO., U.S.A.

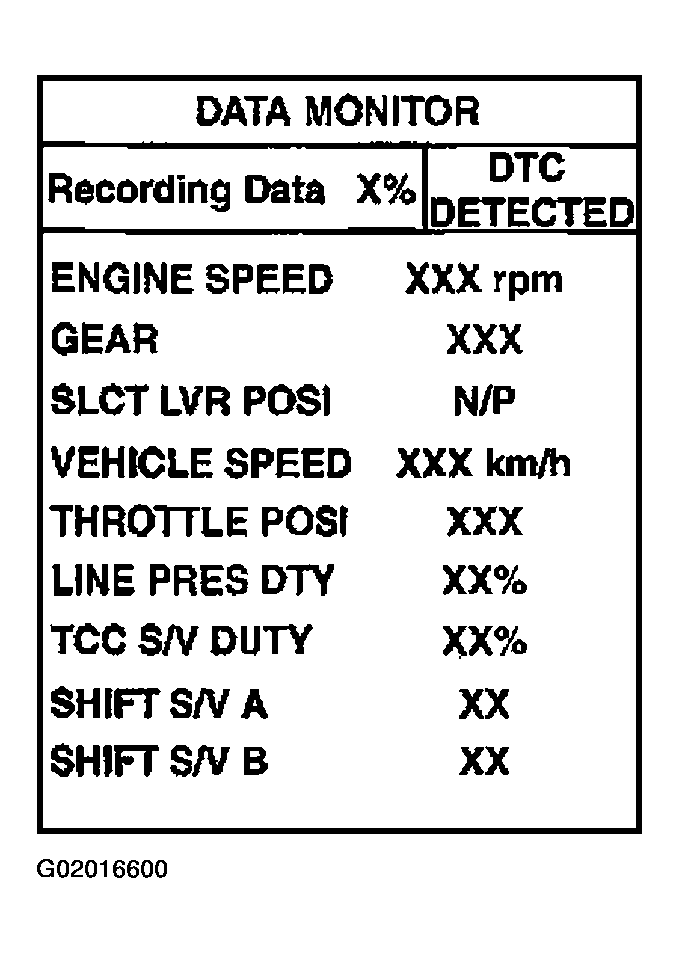

10. Touch START.
11. When performing cruise test, touch RECORD.
    Fig 8: CONSULT-II Display - Touch "RECORD"

    Courtesy of NISSAN MOTOR CO., U.S.A.
12. After finishing cruise test part 1, touch STOP.
    Fig 9: CONSULT-II Display - Touch "STOP"

    Courtesy of NISSAN MOTOR CO., U.S.A.
13. Touch STORE and touch BACK.
    Fig 10: CONSULT-II Display - Touch "STORE"

    Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 11: CONSULT-II Display - Touch "BACK"

    Courtesy of NISSAN MOTOR CO., U.S.A.

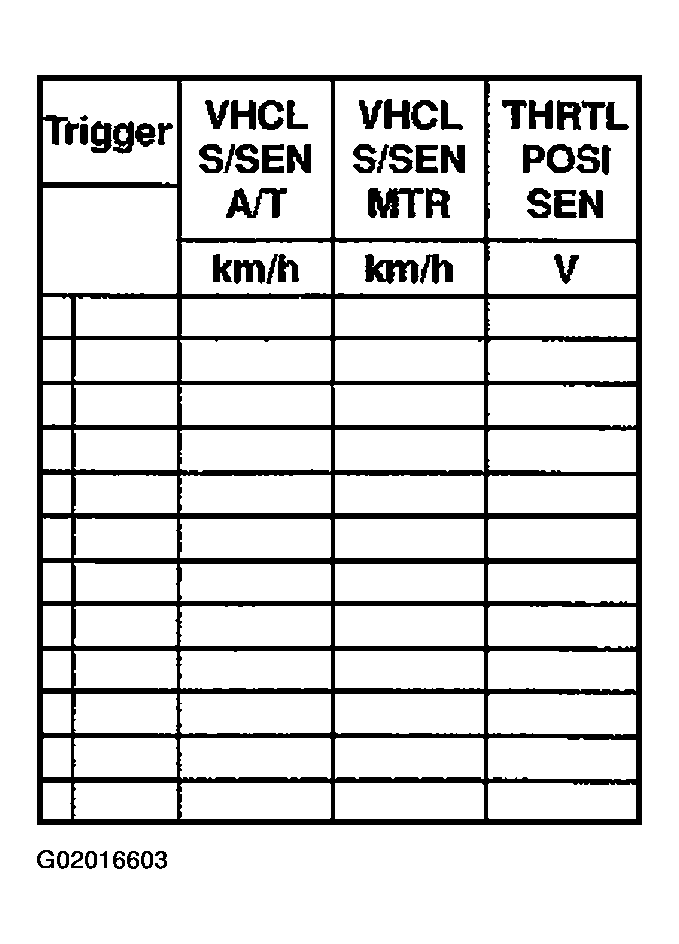

14. Touch DISPLAY.
    Fig 12: CONSULT-II Display - Touch "DISPLAY"

    Courtesy of NISSAN MOTOR CO., U.S.A.
15. Touch PRINT.
16. Check the monitor data printed out.
17. Continue cruise test part 2 and 3.
