Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Re4F04B >> Service Data And Specifications (SDS) >> Output Shaft >> Output Shaft Adjusting Shims

Output Shaft Adjusting Shims

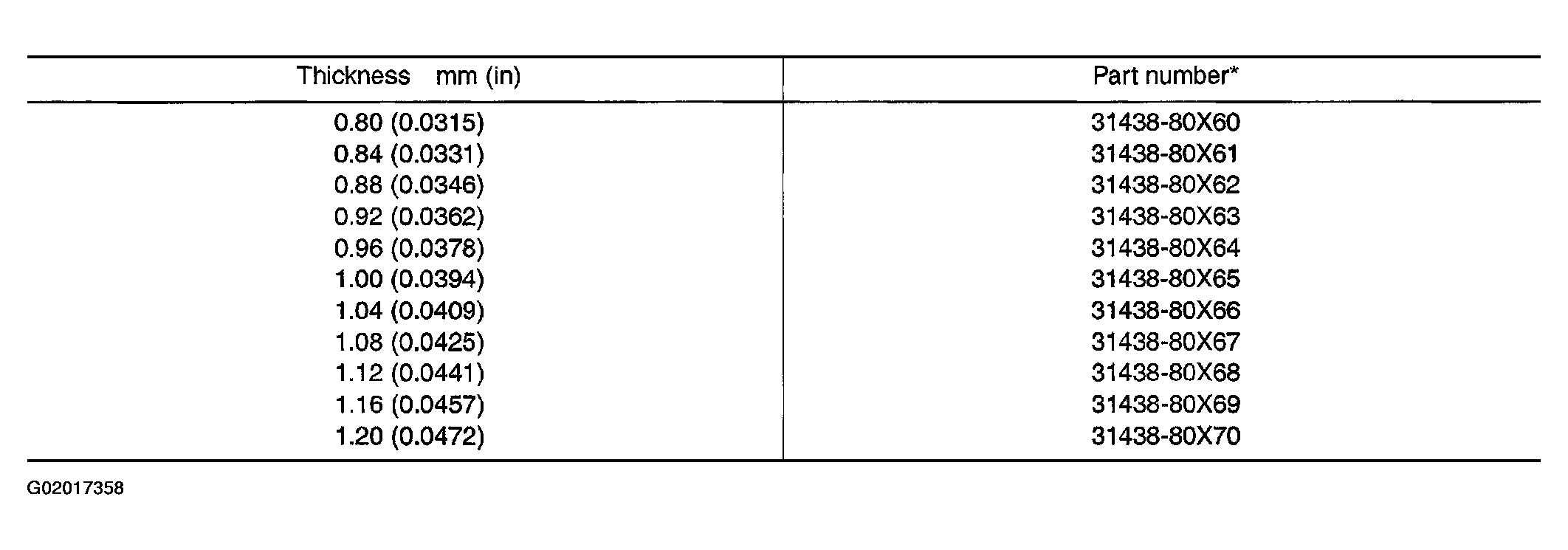

Fig 1: Output Shaft Adjusting Shims Specifications

G02017358

Courtesy of NISSAN MOTOR CO., U.S.A.
