Differential Side Bearing Preload Adjusting Shims

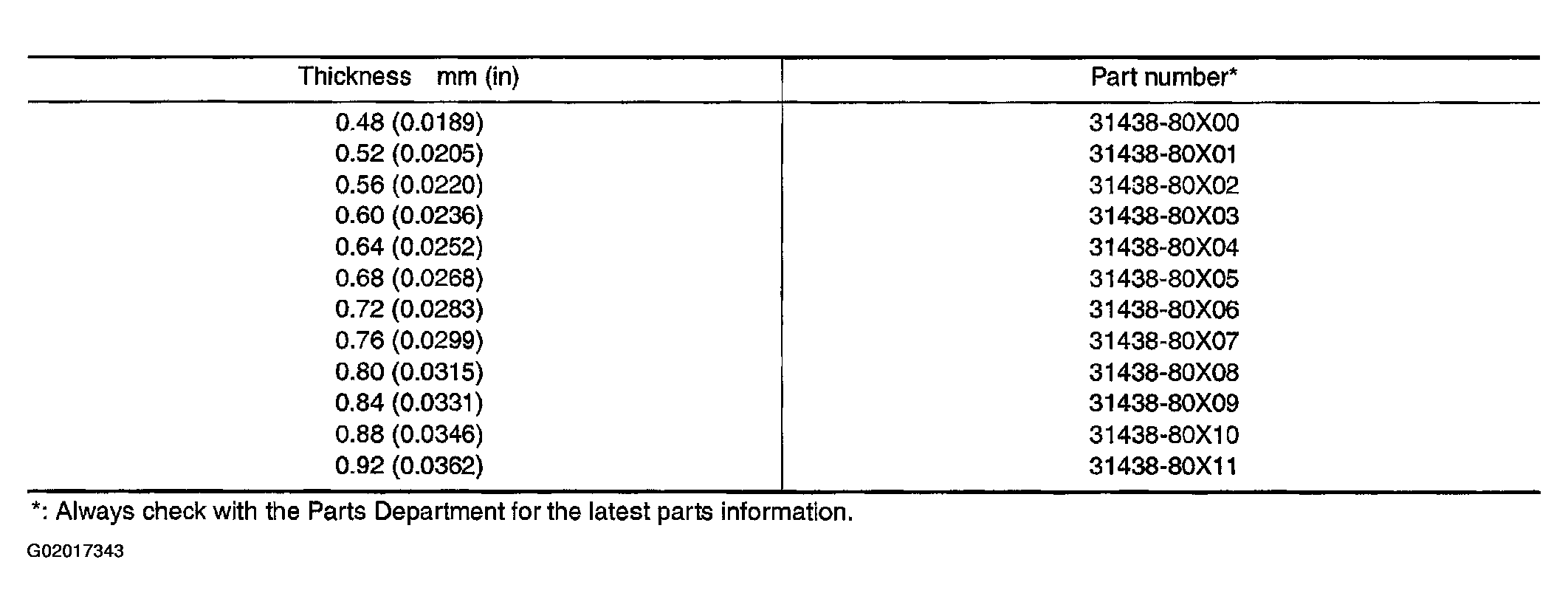

Fig 1: Differential Side Bearing Preload Adjusting Shims Specifications

G02017343

Courtesy of NISSAN MOTOR CO., U.S.A.
