Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Re4F04B >> Service Data And Specifications (SDS) >> Accumulator >> O-Ring

Service Data And Specifications (SDS): Accumulator: O-Ring

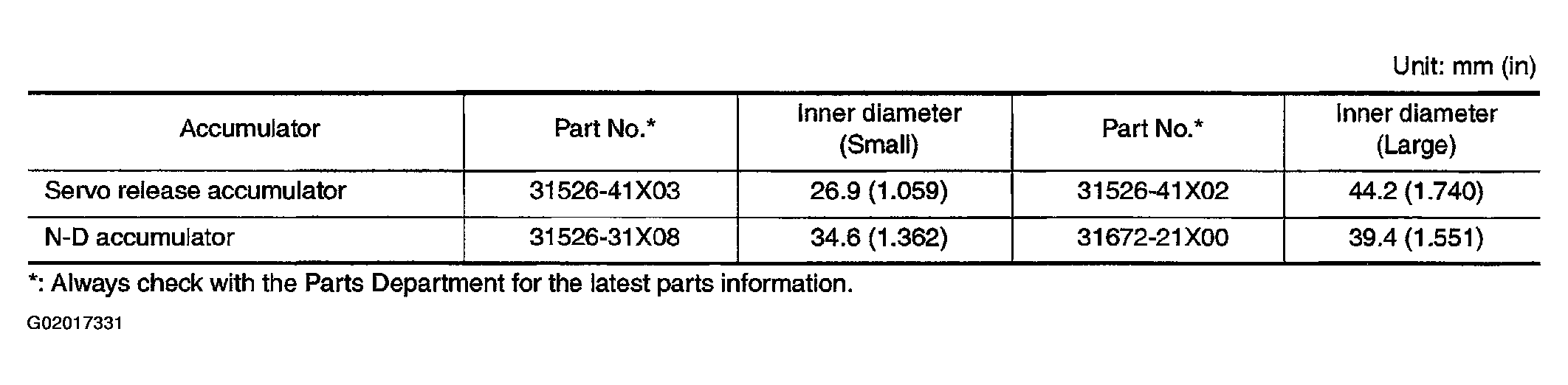

Fig 1: Accumulator O-Ring Specifications

G02017331

Courtesy of NISSAN MOTOR CO., U.S.A.
