Park/Neutral Position (PNP) Switch Adjustment

  1. Remove control cable from manual shaft.

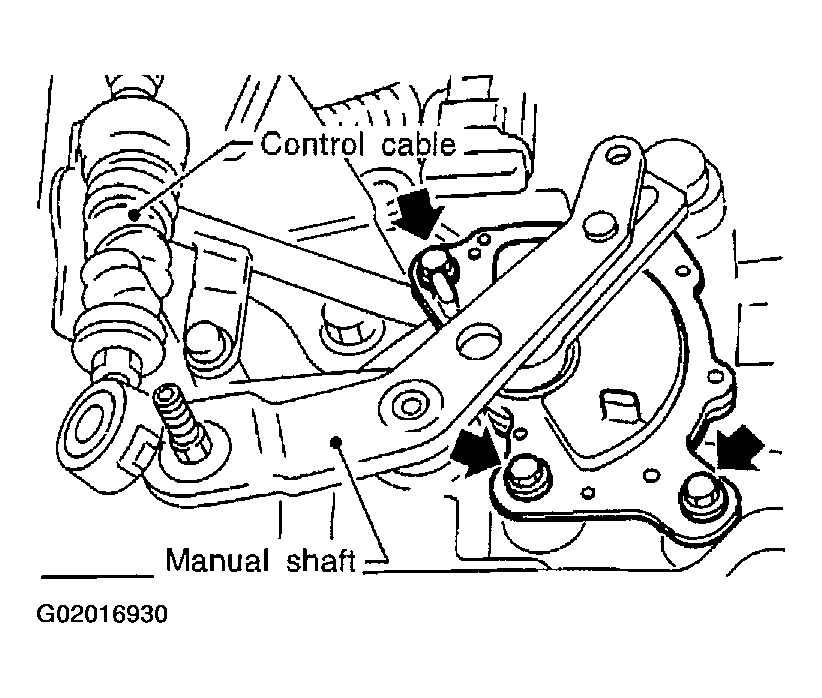

    Fig 1: Loosening PNP Switch Fixing Bolts
    G02016930Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Set manual shaft in N position.
  3. Loosen park/neutral position (PNP) switch fixing bolts.
  4. Insert pin into adjustment holes in both park/neutral position (PNP) switch and manual shaft as near vertical as possible.

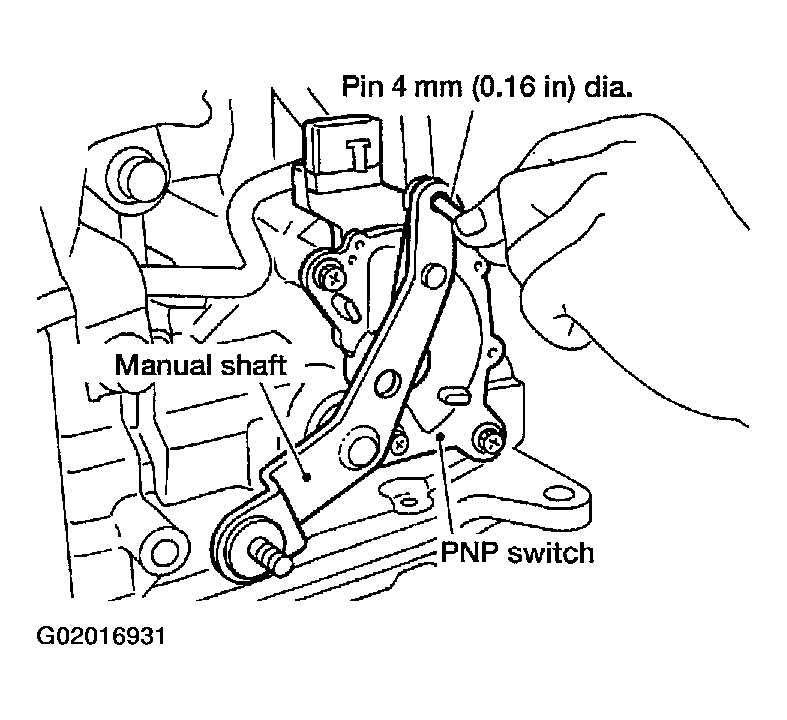

    Fig 2: Inserting Pin Into Manual Shaft Adjustment Hole
    G02016931Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Reinstall any part removed.
  6. Check continuity of park/neutral position (PNP) switch. Refer to DIAGNOSTIC PROCEDURE .
