Diagnostic Procedure

During CRUISE TEST - PART 1 , does A/T shift from D3 to D4 at the specified speed?

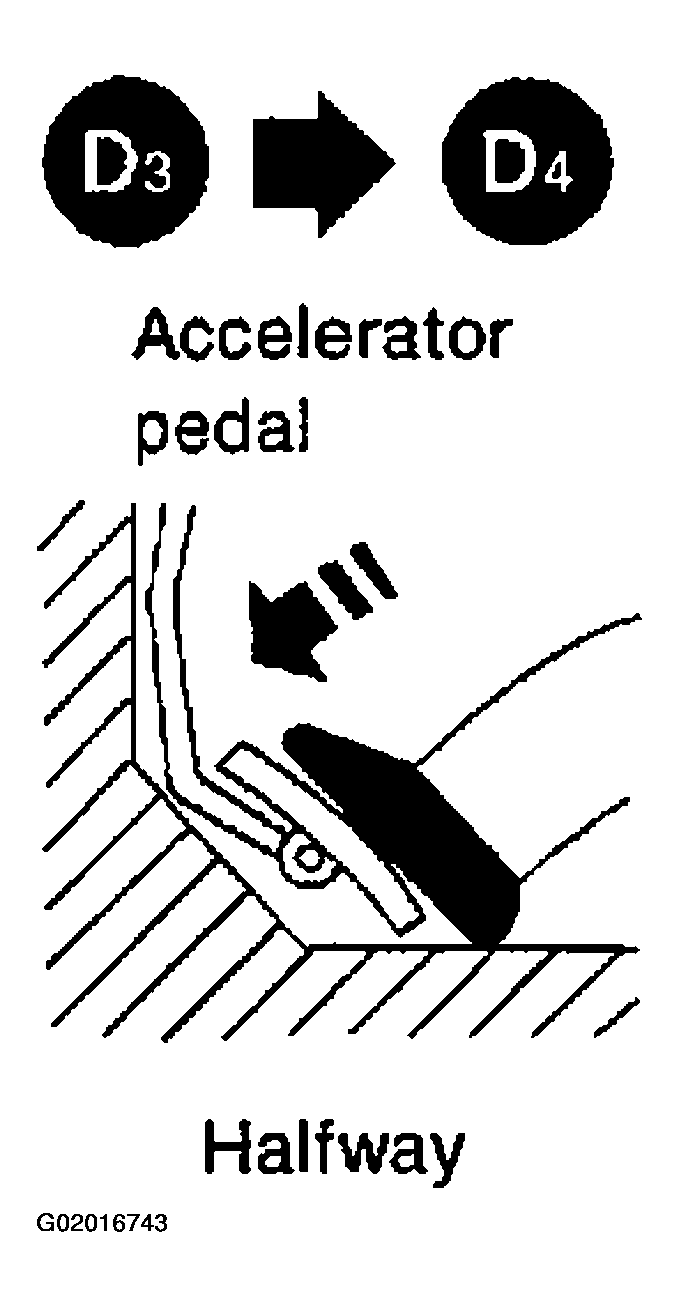

Fig 1: Checking Shift Up (D3 To D4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes: GO TO  11.
2. No: GO TO 2.

Perform line pressure test.

Fig 2: Line Pressure Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to LINE PRESSURE TEST .

OK or NG

1. OK: GO TO 3.
2. NG: GO TO  6.

1. Disassemble control valve assembly. Refer to DISASSEMBLY .
2. Check to ensure that:
   • Valve, sleeve and plug slide along valve bore under their own weight.
   • Valve, sleeve and plug are free from burrs, dents and scratches.
   • Control valve springs are free from damage, deformation and fatigue.
   • Hydraulic line is free from obstacles.
   Fig 3: Checking Control Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 4.
2. NG: Repair control valve.

Does A/T shift from D3 to D4 at the specified speed?

Yes or No

1. Yes: GO TO 5.
2. No: Check control valve again. Repair or replace control valve assembly.

Perform DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .

OK or NG

1. OK: INSPECTION END
2. NG: GO TO  11. Check for proper lock-up.

1. Remove control valve assembly. Refer to REMOVAL .
   • Line pressure solenoid valve
2. Check resistance to the terminal and ground.

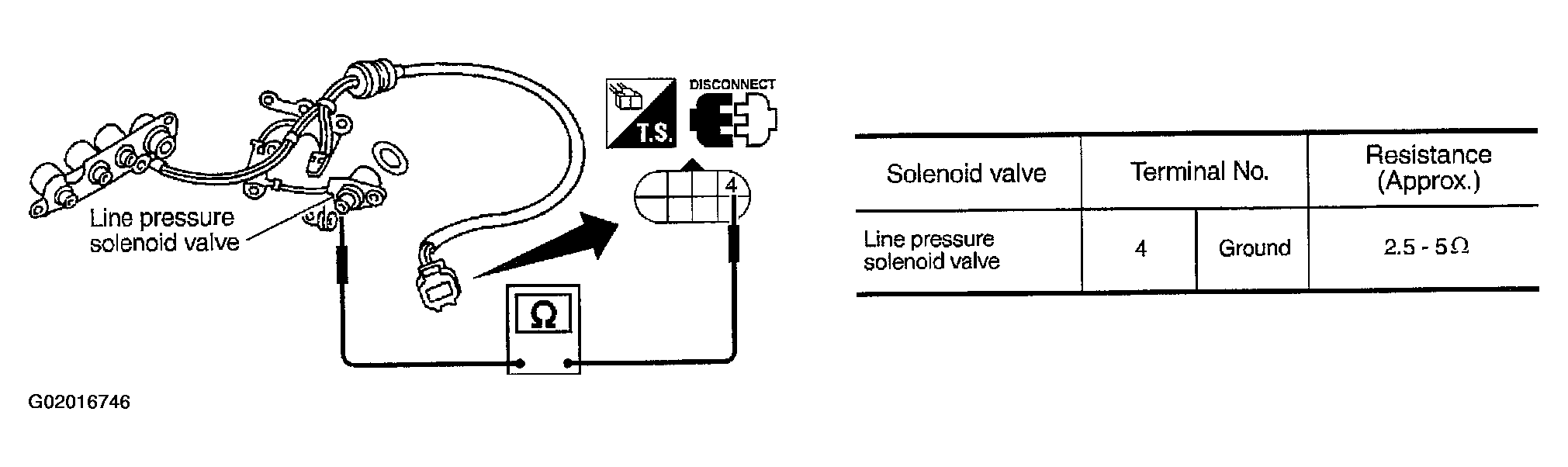

   Fig 4: Checking Valve Resistance

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO  8.
2. NG: Replace solenoid valve assembly.

1. Remove control valve assembly. Refer to REMOVAL .
   • Line pressure solenoid valve
2. Check solenoid valve by listening for its operating sound while applying battery voltage and ground to the solenoid.

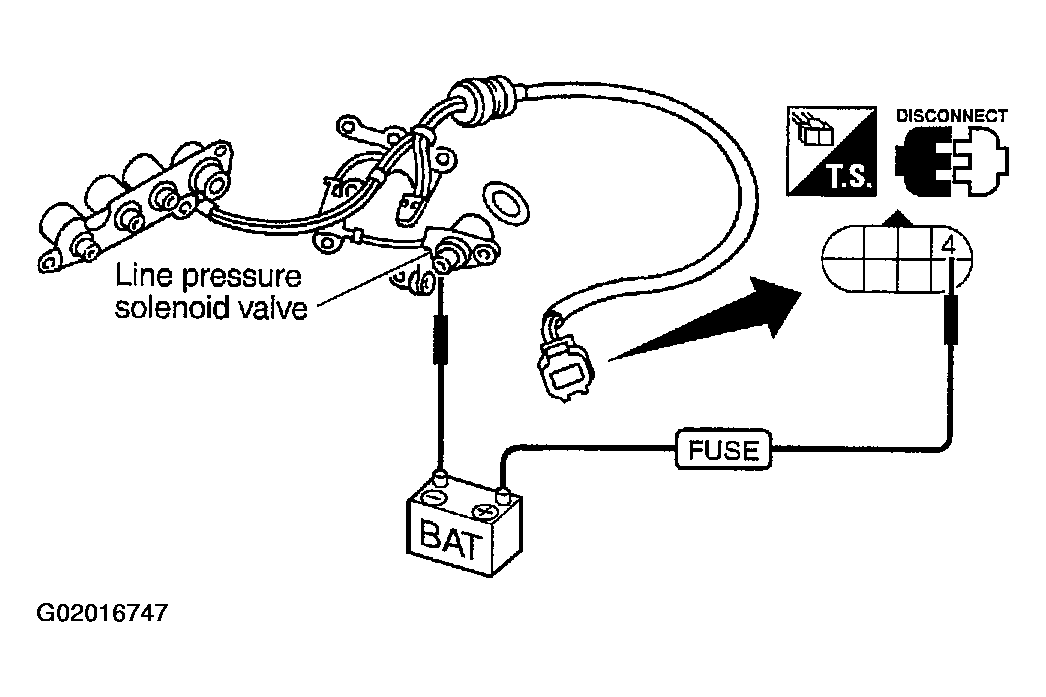

   Fig 5: Checking Valve Operation

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 8.
2. NG: Replace solenoid valve assembly.

1. Disassemble control valve assembly. Refer to DISASSEMBLY .
2. Check line pressure circuit valves for sticking.
   • Pressure regulator valve
   • Pilot valve
   • Pressure modifier valve
   Fig 6: Checking Control Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 9.
2. NG: Repair control valve.

Does A/T shift from D3 to D4 at the specified speed?

Yes or No

1. Yes: GO TO 10.
2. No: Check control valve again. Repair or replace control valve assembly.

Perform DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .

OK or NG

1. OK: INSPECTION END
2. NG: GO TO 11. Check for proper lock-up.

During CRUISE TEST - PART 1 , does A/T perform lock-up at the specified speed?

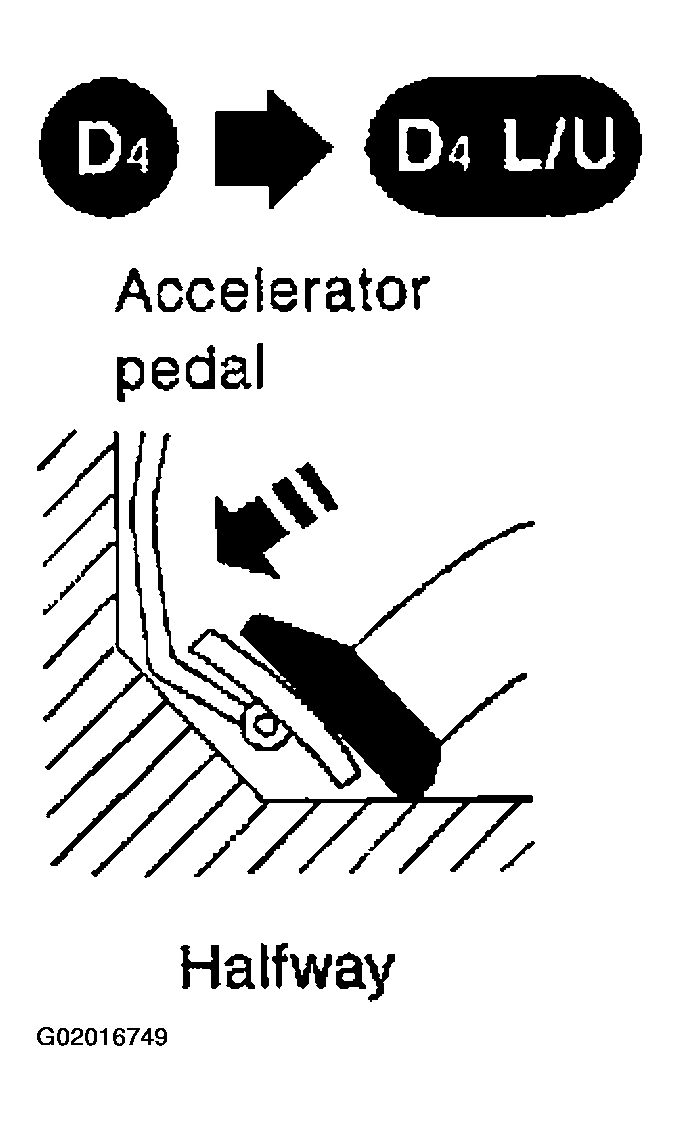

Fig 7: Checking Lock-Up Condition

Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes: Perform Cruise test - Part 1 again and return to the start point of this test group.
2. No: GO TO 12.

1. Remove control valve assembly. Refer to REMOVAL .
   • Torque converter clutch solenoid valve
2. Check resistance between terminal cord assembly connector F30 terminal 5 and ground.

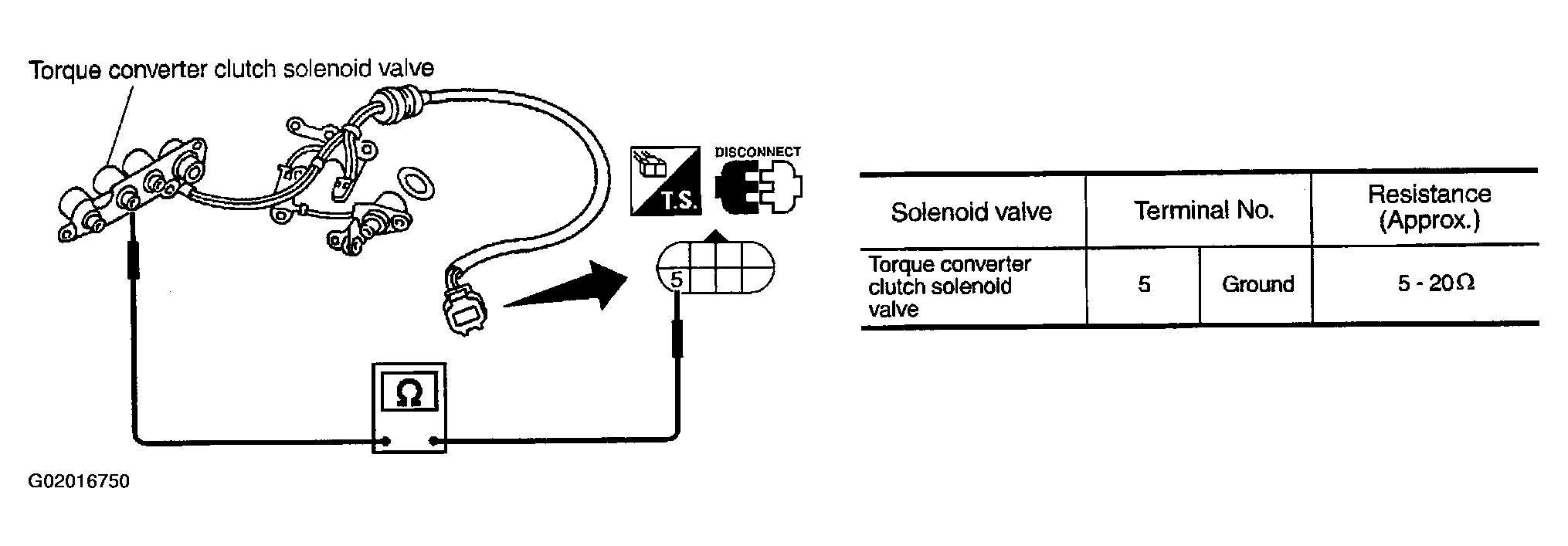

   Fig 8: Checking Valve Resistance

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO  14.
2. NG: Replace solenoid valve assembly.

1. Remove control valve assembly. Refer to REMOVAL .
   • Torque converter clutch solenoid valve
2. Check solenoid valve by listening for its operating sound while applying battery voltage and ground to the solenoid.

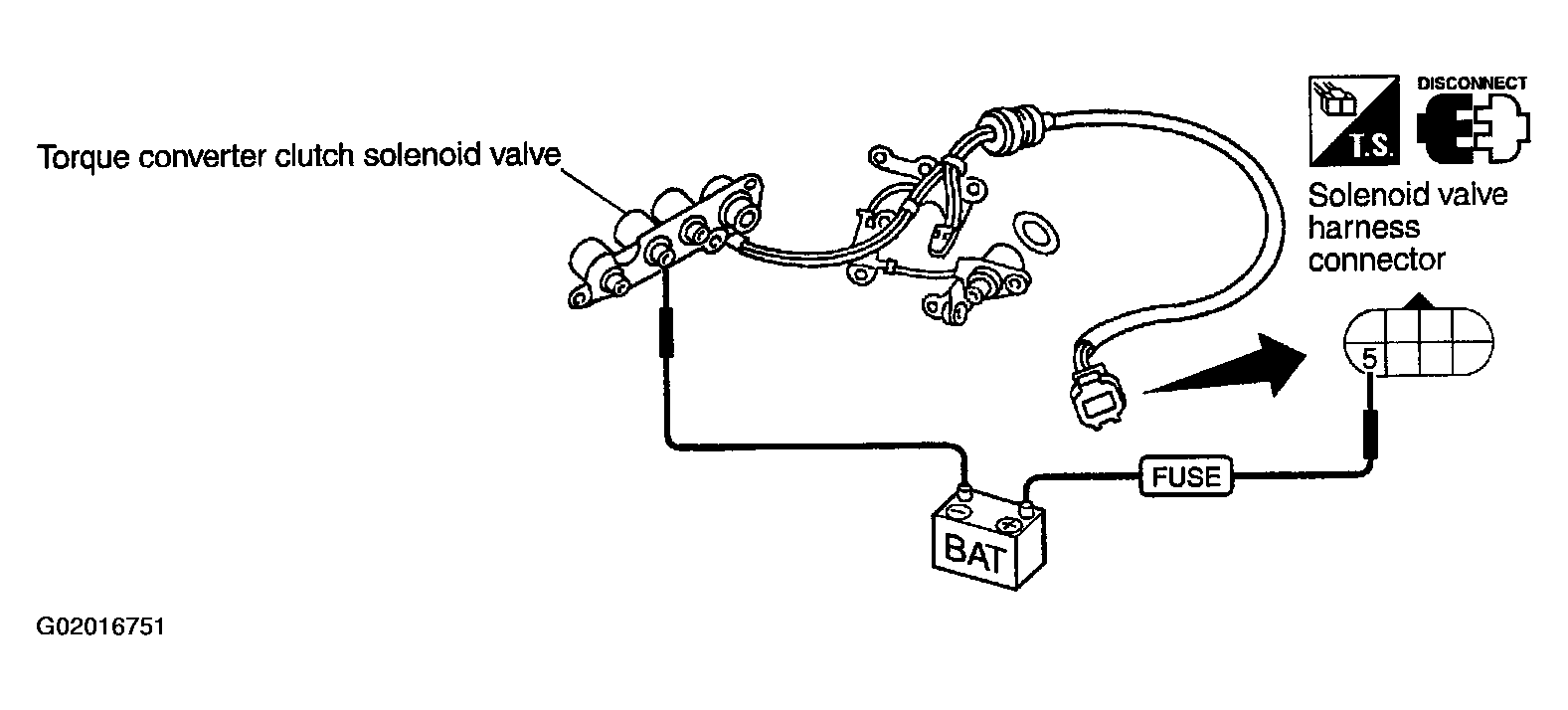

   Fig 9: Checking Valve Operation

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 14.
2. NG: Replace solenoid valve assembly.

1. Disassemble control valve assembly. Refer to DISASSEMBLY .
2. Check control valves for sticking.
   • Torque converter clutch control valve
   • Torque converter clutch relief valve
   Fig 10: Checking Control Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 15.
2. NG: Repair control valve.

Does A/T perform lock-up at the specified speed?

Yes or No

1. Yes: GO TO 16.
2. No: Check control valve again. Repair or replace control valve assembly.

Perform DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .

OK or NG

1. OK: INSPECTION END
2. NG: Perform Cruise test - Part 1 again and return to the start point of this test group.
