Diagnostic Procedure

1. Remove control valve assembly. Refer to REMOVAL .
   • Shift solenoid valve A
2. Check resistance between terminal cord assembly F30 terminal 2 and ground.

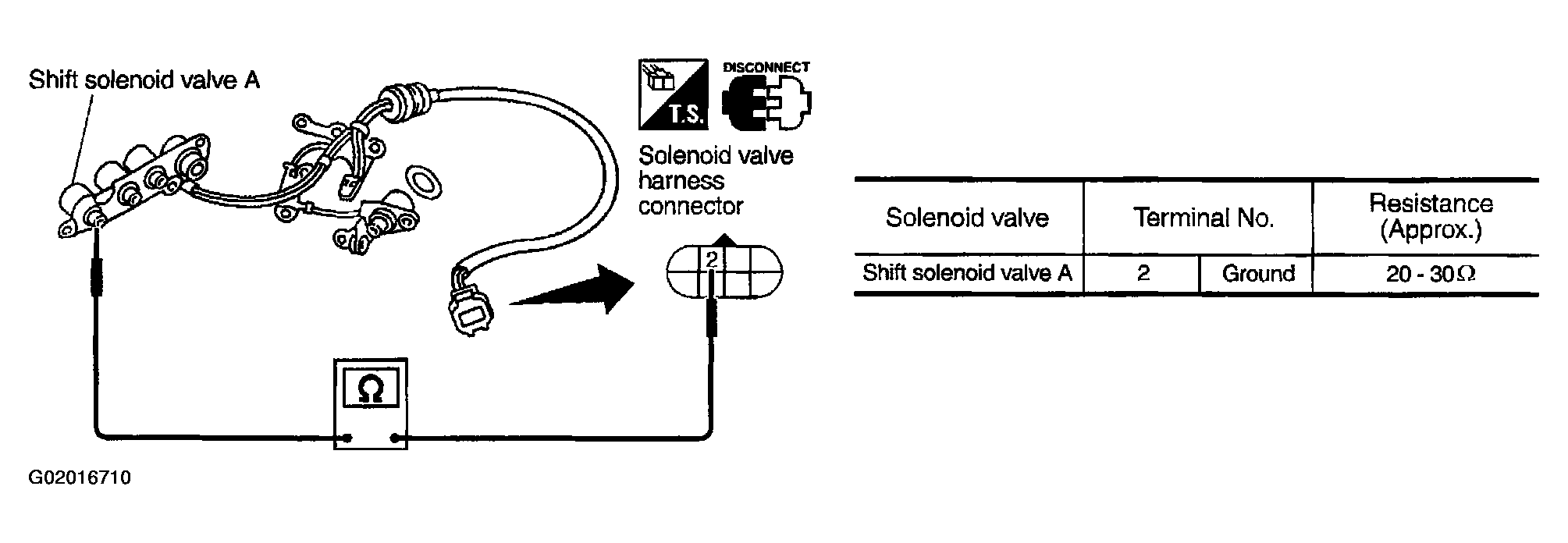

   Fig 1: Checking Resistance Between Terminal Cord Assembly F30 Terminal 2 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Repair or replace shift solenoid valve assembly.

1. Remove control valve assembly. Refer to REMOVAL .
   • Shift solenoid valve A
2. Check solenoid valve by listening for its operating sound while applying battery voltage and ground of the solenoid.

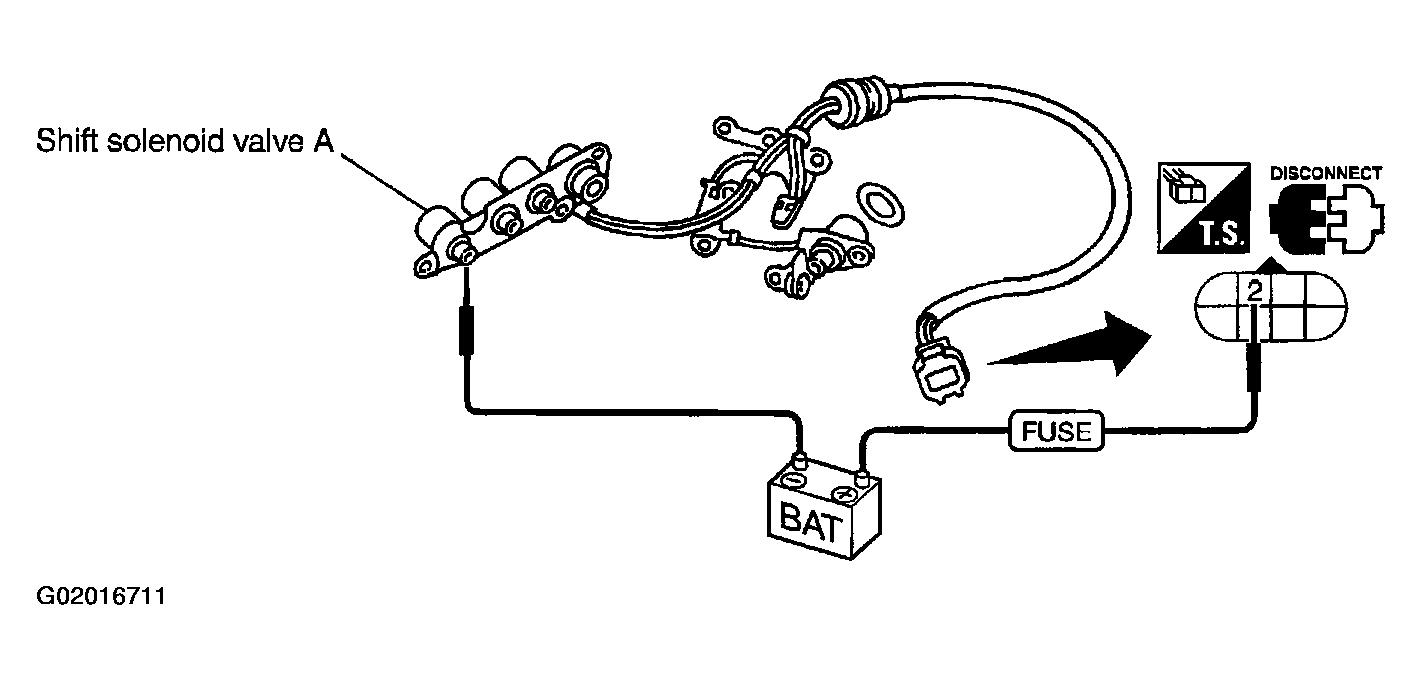

   Fig 2: Checking Valve Operation

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Repair or replace shift solenoid valve assembly.

1. Disassemble control valve assembly. Refer to DISASSEMBLY .
2. Check to ensure that:
   • Valve, sleeve and plug slide along valve bore under their own weight.
   • Valve, sleeve and plug are free from burrs, dents and scratches.
   • Control valve springs are free from damage, deformation and fatigue.
   • Hydraulic line is free from obstacles.
   Fig 3: Checking Control Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 4.
2. NG: Repair control valve assembly.

Perform DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .

OK or NG

1. OK: INSPECTION END
2. NG: Check control valve again. Repair or replace control valve assembly.
