DTC P0720 Vehicle Speed Sensor (A/T Revolution Sensor): Description

The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal. The pulse signal is sent to the TCM which converts it into vehicle speed.

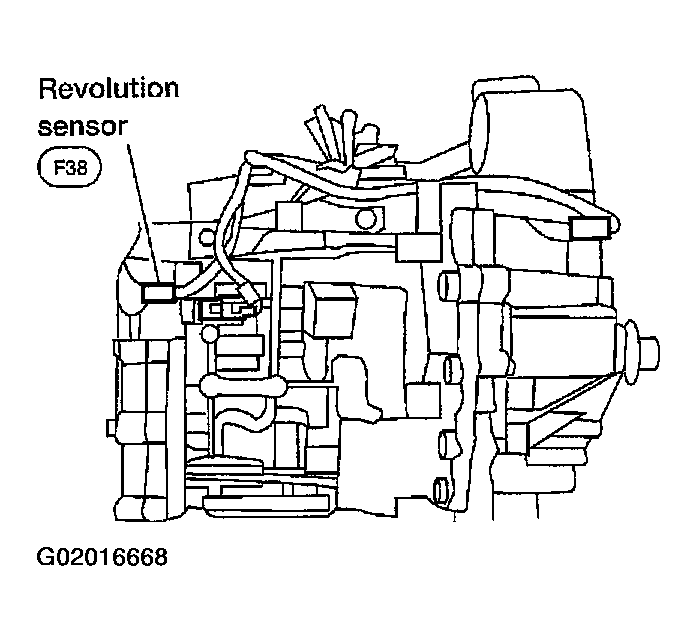

Fig 1: Locating Revolution Sensor
G02016668Courtesy of NISSAN MOTOR CO., U.S.A.
