With Consult-II

  1. Turn ignition switch ON.
    Fig 1: CONSULT-II Display - Select A/T
    G02016648Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select DATA MONITOR mode for ENGINE with CONSULT-II.

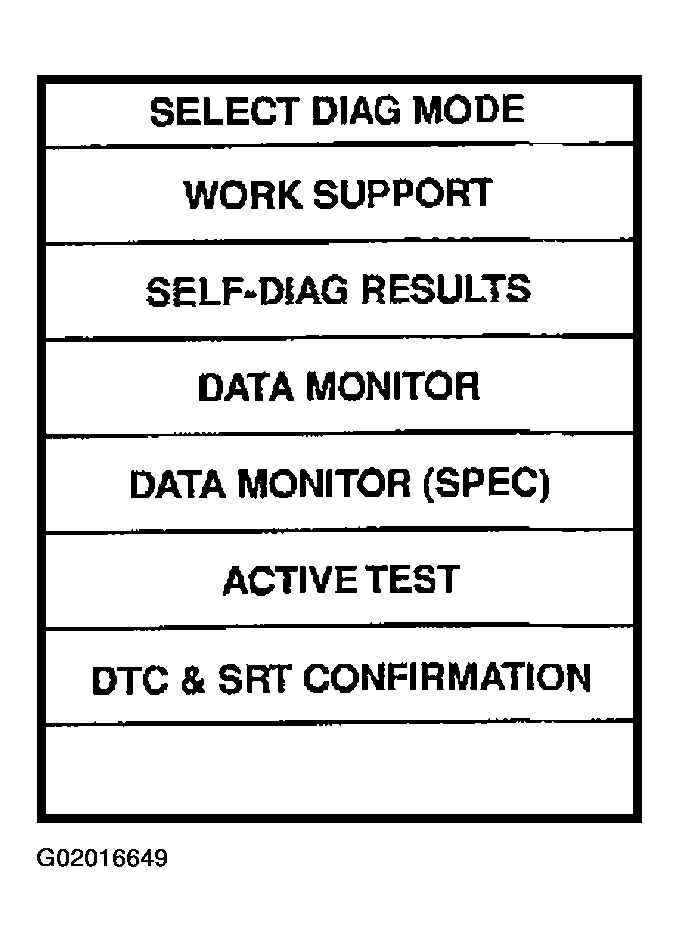

    Fig 2: CONSULT-II Display - Select DATA MONITOR Mode
    G02016649Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine and maintain the following conditions for at least 5 consecutive seconds.

    VHCL SPEED SE: 10 km/h (6 MPH) or more THRTL POS SEN: More than 1.3V Selector lever: D position (O/D ON or OFF)
