Differential Side Bearing Preload

  1. Install differential side bearing outer race without adjusting shim on transmission case.
  2. Install differential side bearing outer race on converter housing.

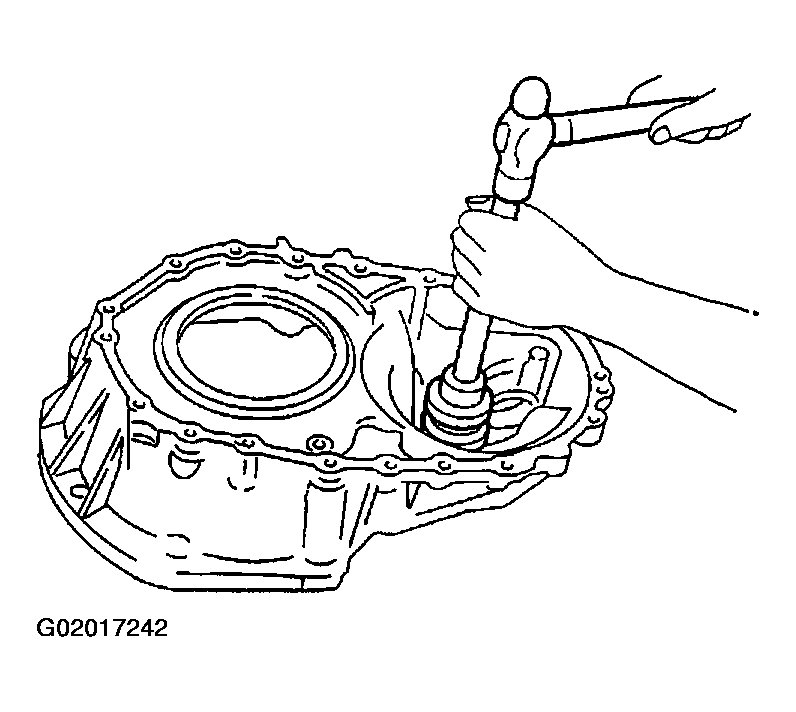

    Fig 1: Installing Differential Side Bearing Outer Race On Converter Housing
    G02017242Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place final drive assembly on transmission case.
  4. Install transmission case on converter housing. Tighten transmission case fixing bolts to the specified torque. Refer to OVERHAUL .

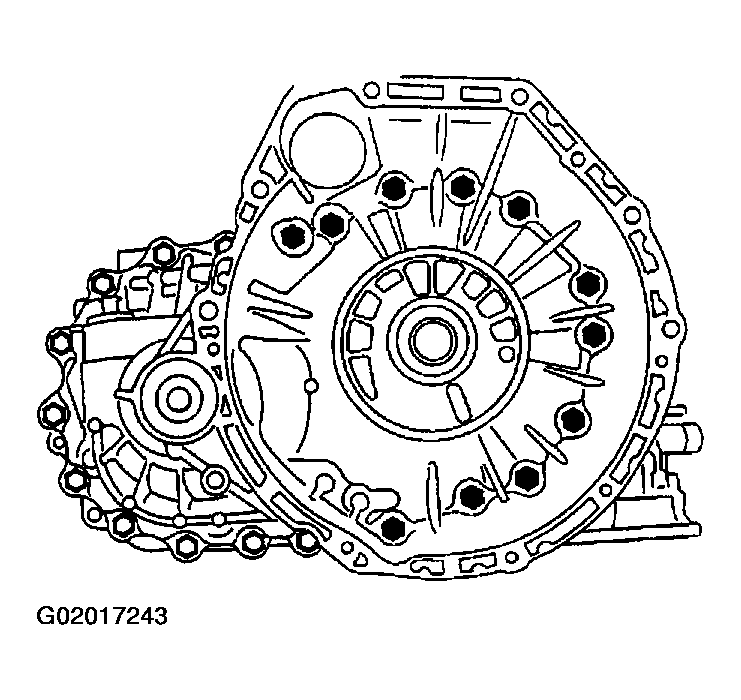

    Fig 2: Tightening Transmission Case Fixing Bolts
    G02017243Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Attach dial indicator on differential case at converter housing side.

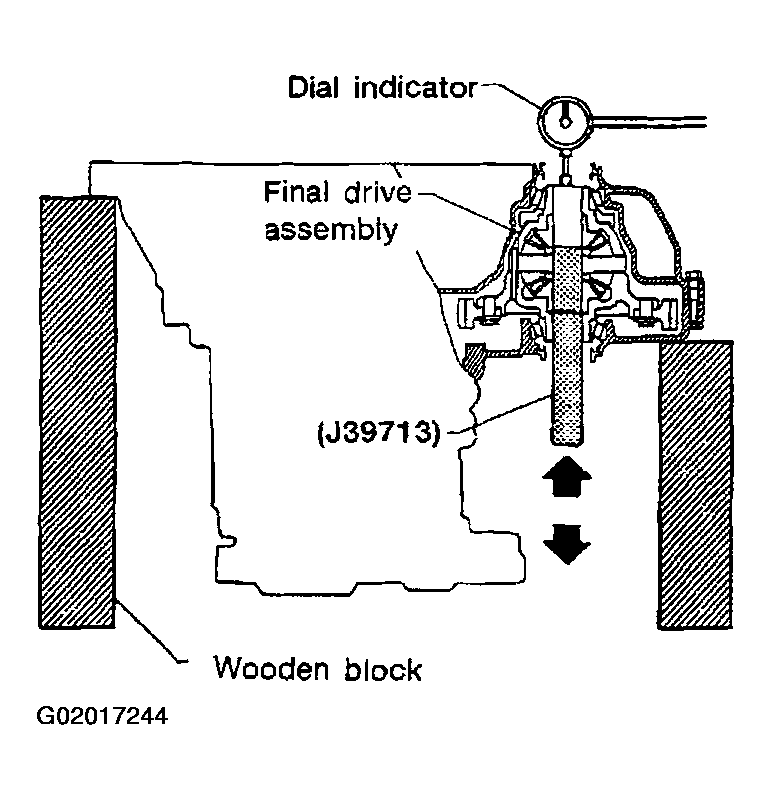

    Fig 3: Attaching Dial Indicator On Differential Case At Converter Housing Side
    G02017244Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Insert Tool into differential side gear from transmission case side.
  7. Move Tool up and down and measure dial indicator deflection.
  8. Select proper thickness of differential side bearing adjusting shim(s).

    Suitable shim thickness = Dial indicator deflection + Specified bearing preload

    Differential side bearing preload adjusting shim: Refer to  DIFFERENTIAL SIDE BEARING PRELOAD ADJUSTING SHIMS  .

    Bearing preload: 0.05 - 0.09 mm (0.0020 - 0.0035 in)

  9. Remove converter housing from transmission case.
  10. Remove final drive assembly from transmission case.
  11. Remove differential side bearing outer race from transmission case.
    Fig 4: Removing Differential Side Bearing Outer Race From Transmission Case
    G02017245Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Reinstall differential side bearing outer race and shim(s) selected from SDS table on transmission case.
  13. Reinstall converter housing on transmission case and tighten transmission case fixing bolts to the specified torque. Refer to OVERHAUL .
  14. Insert Tool and measure turning torque of final drive assembly.

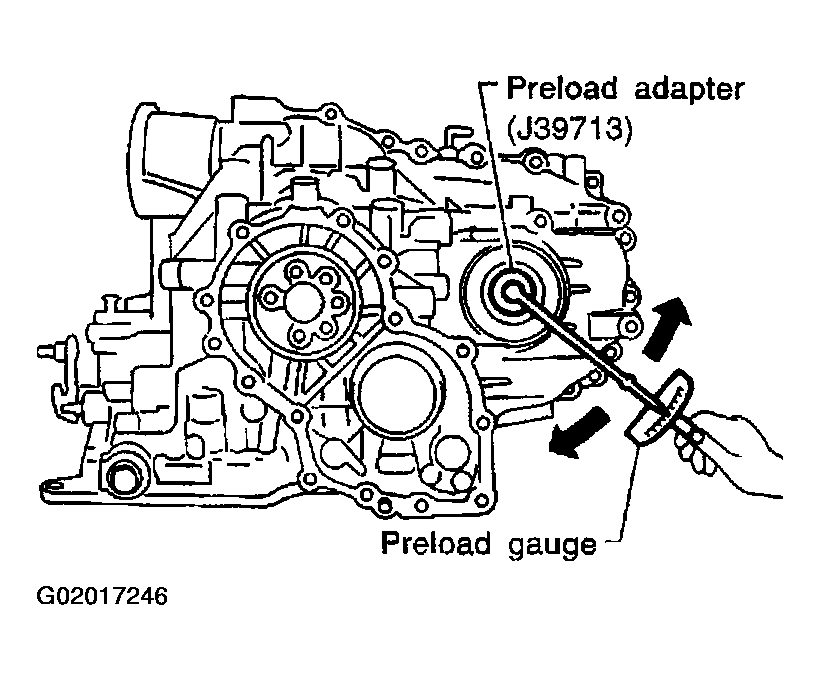

    Fig 5: Measuring Turning Torque Of Final Drive Assembly
    G02017246Courtesy of NISSAN MOTOR CO., U.S.A.
    • Turn final drive assembly in both directions several times to seat bearing rollers correctly.

      Turning torque of final drive assembly (New bearing): 0.78 - 1.37 N.m (8.0 - 14.0 kg-cm, 6.9 - 12.2 in-lb)

    • When old bearing is used again, turning torque will be slightly less than the above.
    • Make sure torque is close to the specified range.

      Preload adapter: J39713
